Home > Products > RF Cable Assembly(Jumper Cable) > RG402 Cable Assembly SMA Male Right Angle to SMA Male Right Angle Connector

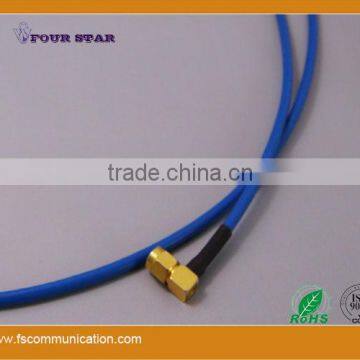

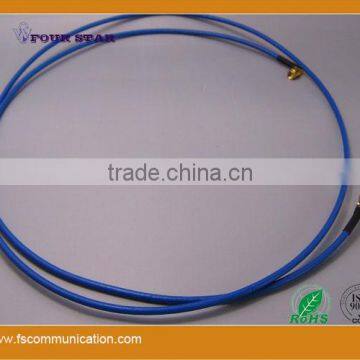

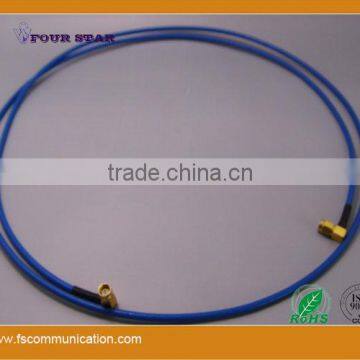

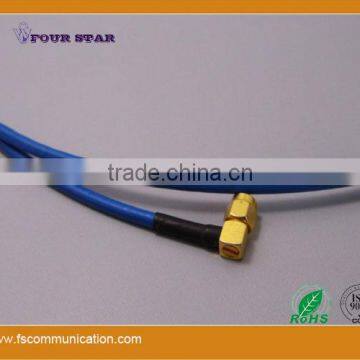

RG402 Cable Assembly SMA Male Right Angle to SMA Male Right Angle Connector
US$ 3.72 - 4.19
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
RG 402 Cable Assembly With N Female to N Female Connector
-
RG 402 Cable Assembly With N Plug to N Plug Connector
-
RG402 Cable Assembly N Male to N Male Connectors
-
RG402 Cable Assembly SMA Male to SMA Male Right Angle Connectors
-
RG402 Cable Assembly SMA Male Right Angle to N Female Bulkhead Connectors
-
1/4'' Superflexible Cable Assembly N Plug to N Plug Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | SMA-JWB3/SMA-JWB3-1500 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 1500mm RG402 Cable Assembly with SMA Male Right Angle Connectors On Both Ends | ||
| Model No. | SMA-JWB3/SMA-JWB3-1500 | |
| Connector Type | A Side: SMA Connector Male Right Angle for RG402 Cable | |
| B Side: SMA Connector Male Right Angle for RG402 Cable | ||
| Cable Type(Name) | RG402 Cable | |
| Cable Lenth | 1500mm (Customized Length Available) | |
| Interface | IEC 60169-15 | |
| Operating Frequency | DC-6GHz | |
| VSWR | ≤1.3@DC-6GHz | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Au |
| Operating Temperature | -45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
Packaging cable
