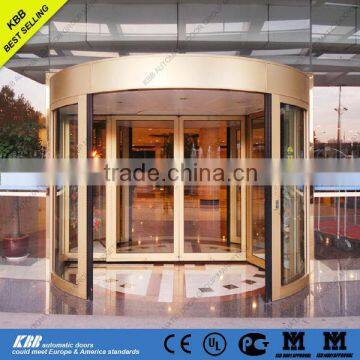

2015 KBB 2 Wings Automatic Glass Revolving Door

KBB 2 wing Automatic Revolving Door

* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .

* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.

* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .

2 wings revolving door was an unique revolving door with "3 in 1 function" which was Revolving door +Sliding door+ Balanced door. KBB’s superior design provides an imposing entrance to any building, while serving as an airlock as well, to minimize a building’s heating or air conditioning losses, therefore maximizing energy savings.

Safety functions:

1. Special drum wall load-bearing Structure . KBB revolving door use exclusive drum wall load-bearing structure, which allow the door have better stability, especially when comparing the doors with pillar-bearing structure.

2. Vertical /horizontal safety switch . All the KBB automatic revolving door could assemble vertical and horizontal safety rubber, which is sensitive enough to keep people safe .

3. Anti-squeezefunction. All the KBB automatic revolving door assemble the anti-squeeze sensor in the canopy, which keep people safe from squeezing of the door wings .

4. Anti-strikefunction.There are detective radars in the canopy of the revolving door, when people approached, the speed of the door wings will turn slowly, keep people safe from striking .

5. Force-sensitive Control. If the resistance of KBB revolving door wings encounter exceeds a preset value, the door will stop.

6. Torque Control. When the distance between the moving door wing and the fixed one is less than a certain space, the drive power output from the motor will reduce to a safe level, so that the pedestrian will not be hurt even if all the sensors of the revolving door are breakdown.

7. Panic breakout system. All the wings of KBB revolving door could be folded in one, which make the passage way wide enough for people to pass.

8. Handicap button. This button is used to control the speed of the revolving door and slow it down for the safety of younger, older and disabled passersby.

9. Night Security Door. Make KBB revolving door close in the night, which provides extra protection to the building.

Technical Data:

Power supply   : 220V/50HZ

Rated current  : 6A

Rated power : 1200W

Sliding door drive unit  : 100W X 2=200W

Revolving door drive unit  : 250W X 2=500W

Down lights  : 400W

High speed adjustment range(revolving door)  : 1-4r.p.m.

Low speed adjustment range(revolving door)   : 0.5-1.5 r.p.m

Specifications:

Main components:

1, Control unit - SIEMENS

2, Operating soft ware - KBB

3, Transducer - SIEMENS

4, Revolving door motor - SIEMENS

5, Gear box of revolving door - Sewdrive

6, Sliding door motor - KBB

7, Reduction belt - CONTITECH

8, Key switch - KBB, Six splines

9, Working mode selector - KBB

10, Revolving door detecting radar - BEA

11, Sliding door detecting radar - BEA

12, Reduction photocell - BEA

13, Anti-strike photocell - BEA

14, Anti-squeeze radar - PEPPERL

15, Anti-strike radar - PEPPERL

16, High precision speed /position radar - HENGSTLER

17, Emergency stop button - KBB

18, Safety switch - KBB

19, Glass - YAOPI

20, Aluminum alloy frame - JIHUA

21, Ceiling spot light - PHILIPS
