revolving door with safety glass
- 500 Unit / Units per Month
- Ningbo Tianjin Dalian Shanghai
You May Like
-
All Glass Revolving Door
-
3 wings revolver
-
Denmark UCH, university, manual revolving door, ISO9001 UL CE certificate
-
Automatic tempered glass revolving door, aluminium frame, ISO9001 CE UL certificate
-
Automatic laminated glass revolving door, aluminium frame, ISO9001 CE UL certificate
-
Automatic revolving door, security glass, safety sensor, aluminum frame, CE certificate
Product Details
Place of Origin | Beijing, China | Brand Name | KBB | |
Model Number | KA071 | Open Style | Automatic | |
Position | Commercial | Surface Finishing | Finished | |
Type | Revolving Doors | Door Material | Glass |
Product Description

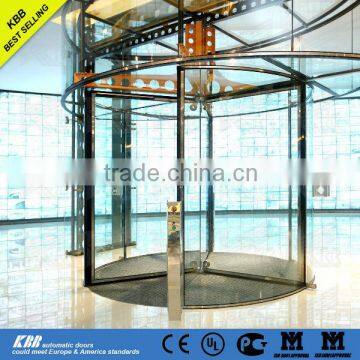

KBB revolving door with safety glass
KBB all glass revolving door is made of a special safety glass, featuring a unique structure and an impeccable appearance. As the revolving door is designed without a central column, clearer visibility allows it to become sparkling and more elegant. With KBB’s unique music note style clamp, KBB all glass revolving door incorporates exceptional mechanic s with aesthetics, with safety and beauty both increased.
1. Special drum wall load-bearing Structure . KBB automatic revolving door use exclusive drum wall load-bearing structure, which allow the door have better stability, especially when comparing the doors with pillar-bearing structure.
2. Vertical /horizontal safety switch . All the KBB automatic revolving door could assemble vertical and horizontal safety rubber, which is sensitive enough to keep people safe .
3. Anti-squeezefunction. All the KBB automatic revolving door assemble the anti-squeeze sensor in the canopy, which keep people safe from squeezing of the door wings .
4. Anti-strikefunction.There are detective radars in the canopy of the revolving door, when people approached, the speed of the door wings will turn slowly, keep people safe from striking .
5. Force-sensitive Control. If the resistance of KBB revolving door wings encounter exceeds a preset value, the door will stop.
6. Torque Control. When the distance between the moving door wing and the fixed one is less than a certain space, the drive power output from the motor will reduce to a safe level, so that the pedestrian will not be hurt even if all the sensors of the revolving door are breakdown.
7. Panic breakout system. All the wings of KBB revolving door could be folded in one, which make the passage way wide enough for people to pass.
8. Handicap button. This button is used to control the speed of the revolving door and slow it down for the safety of younger, older and disabled passersby.
9. Night Security Door. Make KBB revolving door close in the night, which provides extra protection to the building.
Types Of Installation:
The Installation of KBB all glass revolving door include 2 types, the “ Underground ” and “ Cross Slab ” types.
Drive and Control System:
To KBB all glass revolving door, world’s top level system is adapted, SIEMENS main control unit, transducer, drive unit to ensure the stable of the whole revolving door.
Glass with Higher Quality:
All the glass of KBB revolving door could meet the requirements of the international standards.
1. Curved glass is 16mm(8+8) , clear laminated glass.
2. Flat glass is 12mm , tempered glass.
3. Ceiling is constructed of 16mm(8+8), semi-laminated and semi - tempered glass .
Music Note Style Clamp:
The music note style clamp which assembled in all glass revolving door is one of KBB’s most distinguished patents. It’s similar to the musical notes. The clamp’s round shape makes the bearing points of the edge distribute pressure equally, keeping the revolving door body steady and firm. This system has proven an impeccable safety record for KBB all glass revolving doors.
Adjust Tool:
We use SIEMENS BOP and TD400 to ensure completely and exactly suit for KBB revolving doors.
Working Modes:
Continuous working mode.
Start/Stop working mode .
Technical Data:
Power supply: 220VAC±10%,50HZ
Power Consumption: 360W/AC
Main Fuse: 5A
Range of high speed adjust:1-4r.p.m.
Range of low speed adjust :0.5-2.5 r.p.m
Ambient temperature: -25°C~50°C
Ambient Humidity: <90%
Key Components:
1, Main control unit - SIEMENS
2, Operating programed software -KBB
3, Transducer - SIEMENS
4, Revolving door motor - SIEMENS
5, Revolving door gear box - Sewdrive
6, Mechanical lock - KBB
7, Reset button - KBB
8, Detection radar of revolving door -BEA
9, High precision speed/position radar - HENGSTLER
10, Safety anti-striking device -PEPPERL
11, Emergency stop button - KBB
12, Handicap button - KBB
13, Outer wall glass - YAOPI 8+8mm laminated glass
14, Door wing glass - YAOPI 12mm toughened glass
15, Top cap glass – YAOPI Safety glass toughened treatment
16, Aluminum frame profile -JIHUA
