revolving door for bank

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Tianjin Dalian Ningbo Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	KBB
Model Number	KA023	Open Style	Automatic
Position	Commercial	Surface Finishing	Finished
Type	Revolving Doors	Door Material	Aluminum Alloy

Product Description

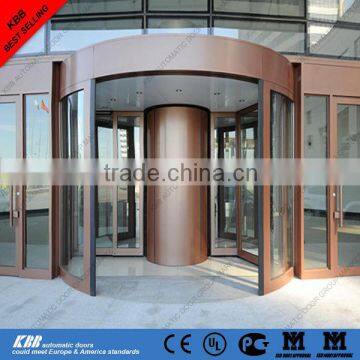

KBB revolving door for bank

* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .

* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.

* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .

KA023 is one of KBB best selling automatic revolving door which used aluminium door frame, security tempered glass and security laminated glass, they are welcomed so well that at least 1000 units were installed in the banks, airports, hotels, shopping malls, office buildings in the world every year .

Safety functions:

1, Special Load-Bearing Structure

2, Vertical/horizontal safety switch

3, Anti-squeeze

4, Anti-strike

5, Force-sensitive Control

6, Torque Control

7, Panic breakout system

8, Handicap

9, Night Security Door.

Operation features:

1, Continuous working mode

2, Go/Stop working mode

3, Remote control function

Technical Data:

Power supply : 220VAC±10%,50HZ

Rated current :12VAC,50HZ

Rated power : 600W

Down lights : 400W

High speed adjustment range(revolving door) : 1-4r.p.m.

Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.

Ambient temperature : -30.C – 45.C.

Max relative humidity : 90%.

Total weight <1000Kg

Operating noise ≤ 60db (A)

Specifications:

Inner Dia(D)	1800mm	2100mm	2400mm	2700mm	3000mm	3600mm
Outer Dia (DT)	1880mm	2180mm	2480mm	2780mm	3080mm	3680mm
Clear height	2300mm	2300mm	2300mm	2300mm	2300mm	2300mm
Canopy height	300mm	300mm	300mm	300mm	300mm	300mm
Total height	2600mm	2600mm	2600mm	2600mm	2600mm	2600mm

Key Components:

1, Main control unit - SIEMENS

2, Operation program software – KBB

3, Transducer - SIEMENS

4, Drive unit - SIEMENS

5, Gear box - Sewdrive

6, Deceleration belt – CONTITECH

7, Spot light – PHILIPS

8, Detection radar - BEA, Infrared

9, High precision speed/position radar – HENGSTLER

10, Emergency stop button – KBB

11, Handicap button – KBB

12, Curved glass – YAOPI

13, Planar glass – YAOPI

14, Aluminium frame profile - JIHUA
