KBB HOTEL entrance 2 wing revolving door, safety glass, aluminium frame, stainless steel surface, CE UL certificate

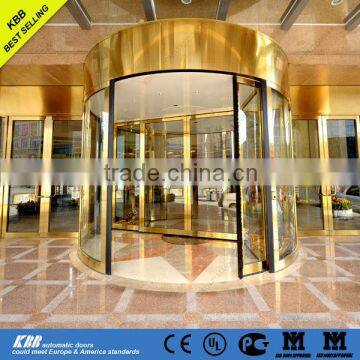

KBB 2 wing automatic revolving door project

Project name : Ningxia Labor Union Hotel .

Location:  Ningxia, China .



KBB 2 wings automatic revolving door was an unique revolving door with " 3 in 1 function " which was Revolving door +Sliding door+ Balanced door. KBB’s superior design provides an imposing entrance to any building, while serving as an airlock as well, to minimize a building’s heating or air conditioning losses, therefore maximizing energy savings.

Safety functions:

1, Drum wall load-bearing structure

2, Emergency stop

3, Handicap function

4, Anti-squeeze function

5, Anti-strike function

6, Force-sensitive Control.

7, Torque Control Function.

8, Safety Relay

9, Panic breakout.

10, LED Panel .

Technical Data:

Power supply   : 220V/50HZ

Rated current  : 6A

Rated power : 1200W

Sliding door drive unit  : 100W X 2=200W

Revolving door drive unit  : 250W X 2=500W

Down lights  : 400W

High speed adjustment range(revolving door)  : 1-4r.p.m.

Low speed adjustment range(revolving door)   : 0.5-1.5 r.p.m

Specifications:

Main components:

1, Control unit - SIEMENS

2, Operating soft ware - KBB

3, Transducer - SIEMENS

4, Revolving door motor - SIEMENS

5, Gear box of revolving door - Sewdrive

6, Sliding door motor - KBB

7, Reduction belt - CONTITECH

8, Key switch - KBB, Six splines

9, Working mode selector - KBB

10, Revolving door detecting radar - BEA

11, Sliding door detecting radar - BEA

12, Reduction photocell - BEA

13, Anti-strike photocell - BEA

14, Anti-squeeze radar - PEPPERL

15, Anti-strike radar - PEPPERL

16, High precision speed /position radar - HENGSTLER

17, Emergency stop button - KBB

18, Safety switch - KBB

19, Glass - YAOPI

20, Aluminum alloy frame - JIHUA

21, Ceiling spot light - PHILIPS
