glass revolving door from china suppliers with low price with tempered glass aluminum frame stainless steel surface

glass revolving door from china suppliers with low price with tempered glass aluminum frame stainless steel surface

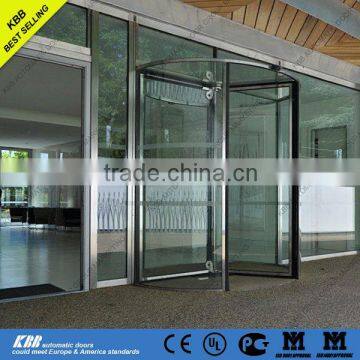

All glass revolving door is one of KBB best selling doors, they are made of special safety glass, without a central column, and used underground drive structure, which make the whole door look totally transparent. With KBB’s unique music note style clamp, the revolver incorporates exceptional mechanics with aesthetics, increasing both safety and beauty.

2, Horizontal safety light barriers .

3, Emergency stop button.

4, Force-sensitive Control.

5, Torque Control Function.

6, Panic breakout.

7, Night Security Door.

8, Disabled push button.

9,Glass Protective Door Clamp.

Types Of Installation:

The Installation including the “ Underground ” and “ Cross Slab ” types.

Drive and Control System:

We used the 1st class system in the world, SIEMENS main control unit, transducer, drive unit to ensure the stable door working.

Glass with Higher Quality:

All glass meets the requirements of the international standards.

1. Curved glass was 16mm(8+8) thick clear laminated glass.

2. Flat glass was 12mm thick  toughened glass.

3. Ceiling was constructed of 16mm(8+8) semi-laminated and semi-toughened safety glass.

Music note style clamp:

The music note style clamp is one of KBB’s most distinguished patents. It’s similar to one of the musical notes. The clamp’s round shape makes the bearing points of the edge distribute pressure equally, keeping the door body steady and firm. This system has proven an impeccable safety record for KBB’s crystal doors.

Adjust Tool:

We use SIEMENS BOP and TD400 to ensure completely and exactly suit for our revolving doors.

Working Modes:

Continuous working mode.

Start/Stop working mode .

Power Consumption: 360W/AC

Main Fuse: 5A

Range of high speed adjust:1-4r.p.m.

Range of low speed adjust :0.5-2.5 r.p.m

Ambient temperature: -25°C~50°C

Ambient Humidity: <90%

2, Operating programed software -KBB

3, Transducer - SIEMENS

4, Revolving door motor - SIEMENS

5, Revolving door gear box - Sewdrive

6, Mechanical lock - KBB

7, Reset button - KBB

8, Detection radar of revolving door -BEA

9, High precision speed/position radar  - HENGSTLER

10, Safety anti-striking device -PEPPERL

11, Emergency stop button - KBB

12, Handicap button - KBB

13, Outer wall glass - YAOPI 8+8mm laminated glass

14, Door wing glass - YAOPI  12mm toughened glass

15, Top cap glass – YAOPI Safety glass toughened treatment

16, Aluminum frame profile -JIHUA
