Home > Products > Sand Blast Machine > Q32Tumblast Machine for Mass Producions

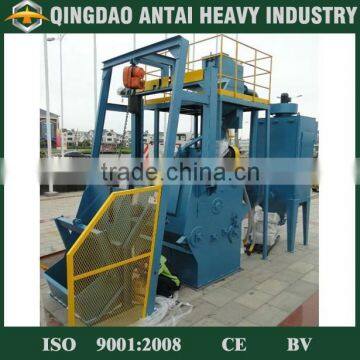

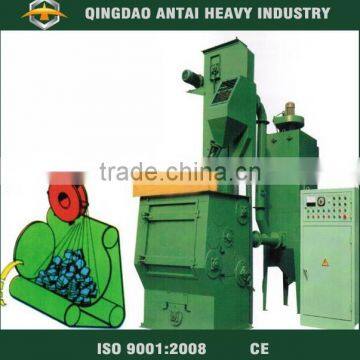

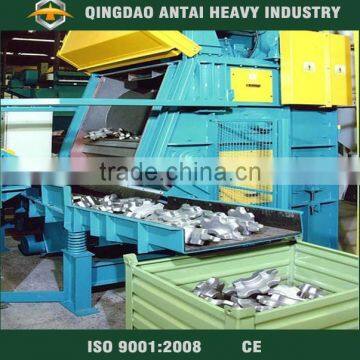

Q32Tumblast Machine for Mass Producions

FOB Price

US$ 9,998 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ANTAI	Model Number	QR3210
Feature	Rust / Corrosion Inhibitor	Fuel	Electric
Certification	CE, Other, CE, ISO9001:2008	Use	Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping, Sterilizing / Disinfecting
Cleaning Process	Other, steel shot	Cleaning Type	Other, abrasive blasting
Industry Used	Other, Steel pipe and steel pipe products	Material	Metal / Coil
Power(W)	24.3kw	Dimension(LWH)	397226004768
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1. Which industry is mainly used in?

It can be used to derust and streng then the surface of workpieces with mass productions.The workpieces must accept collision.

2. What are the characteristics of the machine?

A. No pit and save install fee.

B. Arrangenment of blast wheel is according with CAD.

C. The blast wheel adopts American Pangborn technology.

D. Novel design, compact structure and easy to maintain.

E. It adopt BE full shutter type separator.

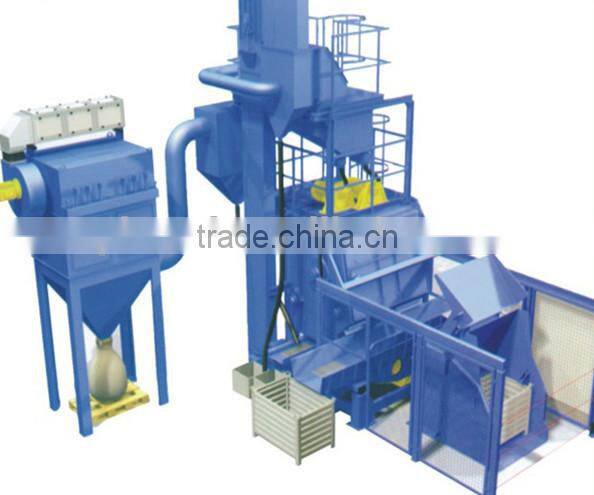

3. What is it combined of?

It consists of cabinet,rubber belt,flapdoor,blast wheel,feedingdevice,elevator,screw conveyer,magnetism system,dust collector system,electrical system.

4. Technique parameter

Item	Units	Q326C	QR3210	15GN	28GN
Productivity	t/h	0.6-1.2	1.5-2.5	5-6	10-12
Feeding amount	kg	200	600	1300	1500
Maximum weight of single piece	kg	10	30	230	363
Diameter of end disk	mm	Ø650	Ø1000	Ø1092	Ø1245
Effective volume	m³	0.15	0.3	0.43	0.79
Shot-blasting capacity	kg/min	100	250	480	700
Air volume for dedusting	m³/h	2200	5000	5300	6500
Power consumption	kw	12.6	24.3	49.3	64.5
Outline dimention	mm	368116505800	397226004768	459732625709	530054326814

NOTICE:

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.

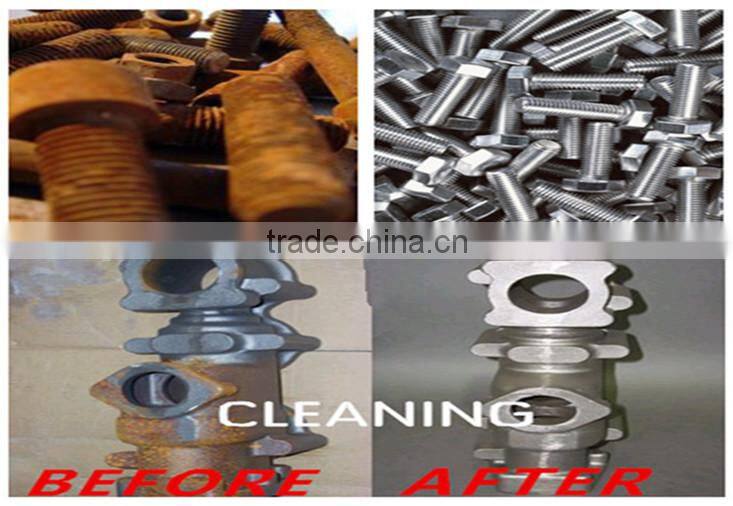

Before and after the workpiece cleaning

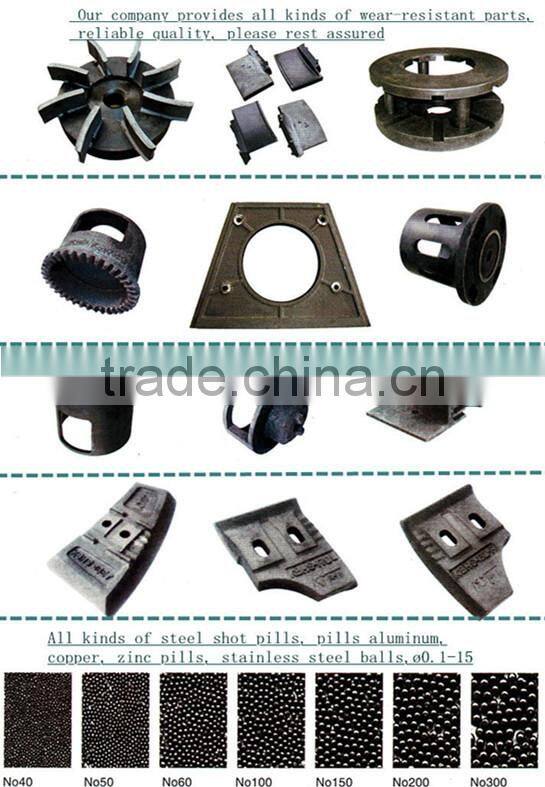

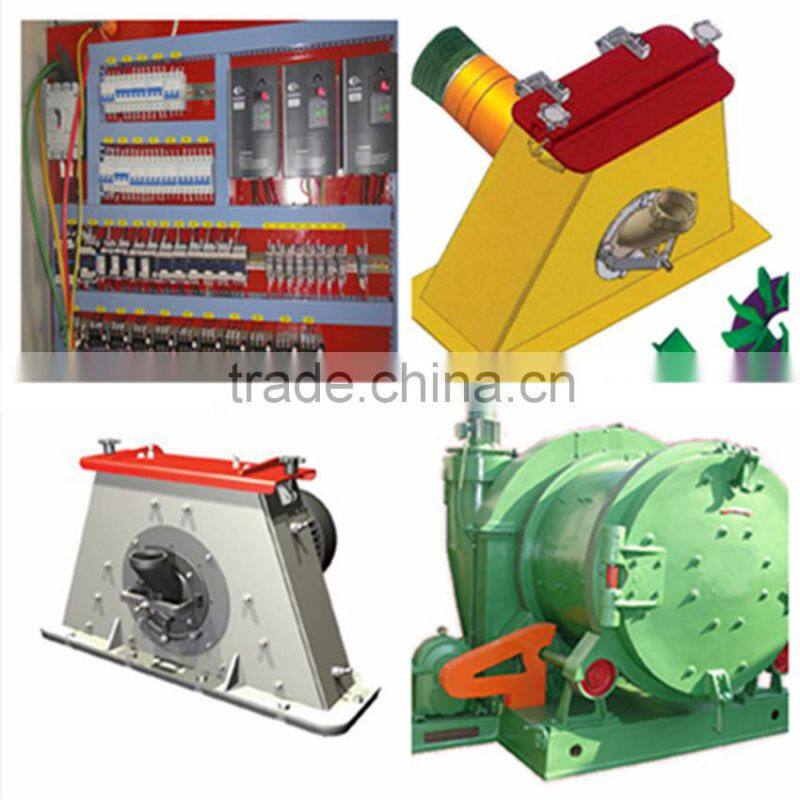

SPARE PARTS

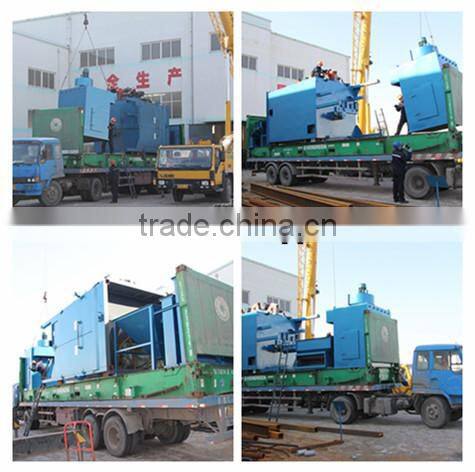

Packaging & Shipping

1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )

2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.

3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI, CNC, COSCO etc insure the goods to the port on time.

Our Services

What Service Antai can supply?

1. Our engineers can work separately according to the requirements of design for clients of the equipment. and send a customer confirmation to help customers to save costs.

2. During the manufacture of the equipment, we photograph product production progress, and sent to the customer to track the progress.

3. The goods hair go, we will send the original documents for the customer (such as packing list, bill, CO, Form E, Form A, Form F, Form M, B/L etc.)

4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.

5. We can send our engineers to installation and debugging overseas, and free training of operators and maintenance workers.

6. We have a set of After-sales service system, A ID will be sent to each customer, they can log in this system that view all information to buy equipment and parts by it. We provide 24-hour online consultation.

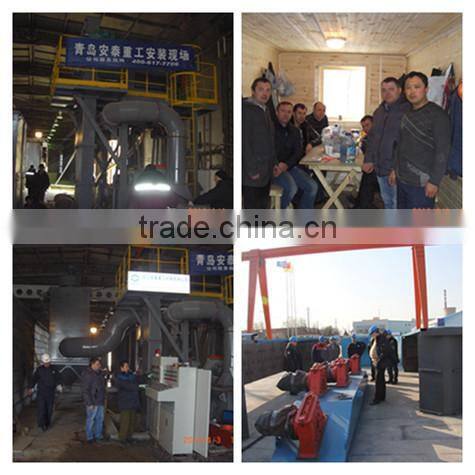

OVERSEAS SERVICE

Company Information

Qingdao Antai Heavy Industry Machinery Co.,LTD.
1. Founded in 2003, 10 years experience for making shot blasting machine.
2. A group company, having real estate, machinery and leather bags industry.
3. Eight experienced engineers to consider every possibility for customers.
4. Three of them has over 25 years knowledge of shot blasting technology.
5. 3D software for auxiliary design, Show every design details in front of you.
6. Experienced technicians for production, installation, commissioning & service.
7. ISO 9001:2008 certified company, CE certificate will be issued soon.
8. All machining parts out sourced from professional CNC machining company
with strict quality control procedure.
9.Own foundry to produce special material spare parts for our machines.

CERTIFICATES

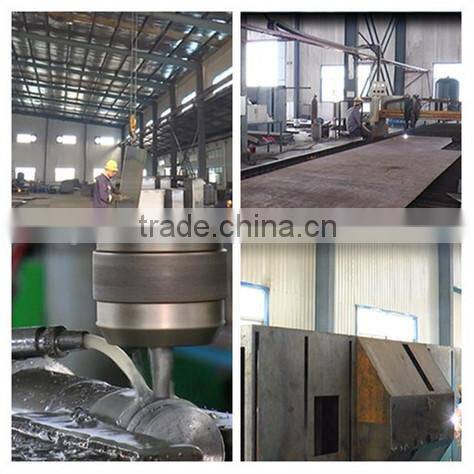

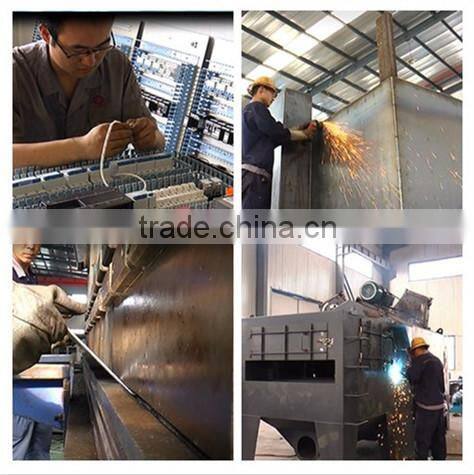

WORKSHOP

CUSTOMER VISITING OUR COMPANY

FAQ

1. How many days do you need to produce this machine?

This is specially designed machine according to your specific requirement. From engineer designing to production completion, It needs about 45-50 days.

2. What does your factory do regarding quality control?

We pay much more importance to quality control from the very begining to the end of production. Every machine will be fully assembled and carefully tested before shipment.

3. What's your machine quality guarantee?

Quality guarantee time is one year, we choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long will it take?

YES, we supply overseas service, but customer needs to pay for the engineers flight tickets and hotel foods.

Small machine usually takes within 5 days.

Big machine usually takes about 20 days.

5. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality, integrity and efficiency. Antai is ALIBABA'S Golden supplier with BV &TUV assessment. You can check with ALIBABA, we have never got any complaint from our customers.
