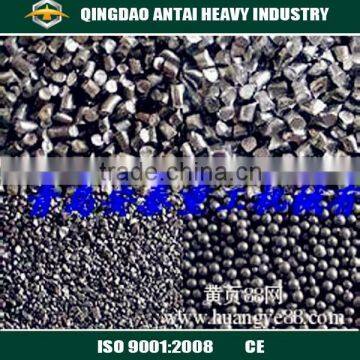

Q326C Overseas Service Steel Shot With Good Quality
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | ANTAI | Model Number | Q326C | |
| Feature | Rust / Corrosion Inhibitor | Fuel | Electric | |
| Certification | CE, Other, CE, ISO9001:2008 | Use | Burnishing, Container / Bottle Cleaning, Descaling / Stripping | |
| Cleaning Process | Other, steel shot | Cleaning Type | Other, abrasive blasting | |
| Industry Used | Other, Steel pipe and steel pipe products | Material | Metal / Coil | |
| Power(W) | 12.6kw | Dimension(L*W*H) | 3681*1650*5800 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Which industry is mainly used in?
It can be used to derust and streng then the surface of workpieces with mass productions.The workpieces must accept collision. this series machines can be singlely used or together with others.
2. What are the characteristics of the machine?
A. No pit and save install fee.
B. Arrangenment of blast wheel is according with CAD.
C. The blast wheel adopts American Pangborn technology.
D. Novel design, compact structure and easy to maintain.
E. It adopt BE full shutter type separator.
3. What is it combined of?

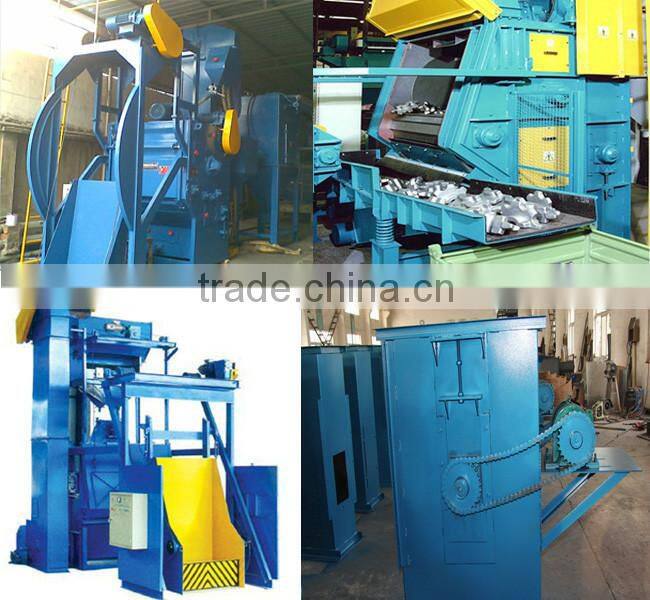

It consists of cabinet,rubber belt,flapdoor,blast wheel,feedingdevice,elevator,screw conveyer,magnetism system,dust collector system,electrical system.
4. Technique parameter
| Item | Units | Q326C | QR3210 | 15GN | 28GN |
| Productivity | t/h | 0.6-1.2 | 1.5-2.5 | 5-6 | 10-12 |
| Feeding amount | kg | 200 | 600 | 1300 | 1500 |
| Maximum weight of single piece | kg | 10 | 30 | 230 | 363 |
| Diameter of end disk | mm | Ø650 | Ø1000 | Ø1092 | Ø1245 |
| Effective volume | m3 | 0.15 | 0.3 | 0.43 | 0.79 |
| Shot-blasting capacity | kg/min | 100 | 250 | 480 | 700 |
| Air volume for dedusting | m3/h | 2200 | 5000 | 5300 | 6500 |
| Power consumption | kw | 12.6 | 24.3 | 49.3 | 64.5 |
| Outline dimention | mm | 3681*1650*5800 | 3972*2600*4768 | 4597*3262*5709 | 5300*5432*6814 |
NOTICE:
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
3D DRAWING(CAD)

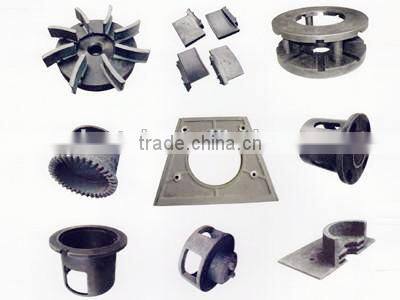

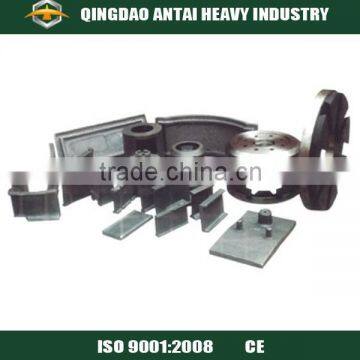

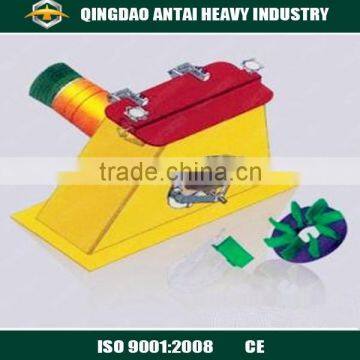

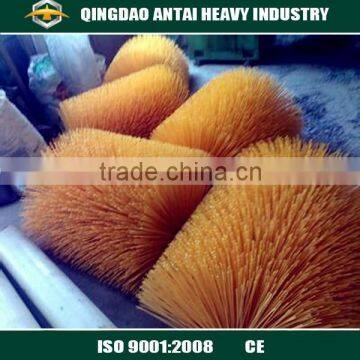

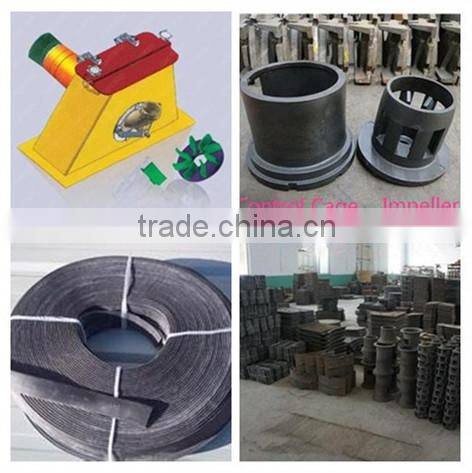

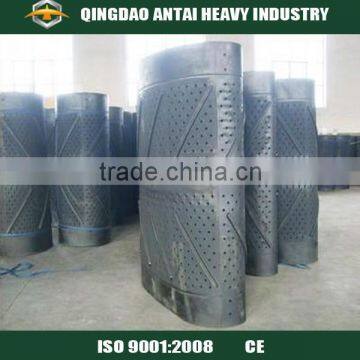

SPARE PARTS
1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )
2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.
3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI, CNC, COSCO etc insure the goods to the port on time.
CERTIFICATES

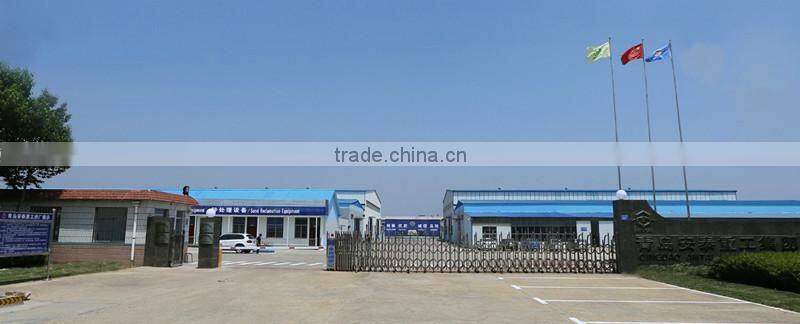

WORKSHOP
CUSTOMER VISITING OUR COMPANY
1. How many days do you need to produce this machine?
IF YOU ARE INTERESTED, PLS LET ME KNOW.
