China Supplier Best Price Q48 Shot Blasting Machine
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | ANTAI | Model Number | Q4810 | |
| Feature | Rust / Corrosion Inhibitor | Fuel | Electric | |
| Certification | CE, Other, CE, ISO9001:2008 | Use | Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping, Sterilizing / Disinfecting | |
| Cleaning Process | Other, steel shot | Cleaning Type | Other, abrasive blasting | |
| Industry Used | Other, Steel pipe and steel pipe products | Material | Metal / Coil | |
| Power(W) | 85kw | Dimension(L*W*H) | 4500*5350*5003 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Which industry is mainly used in?
It is suitable for processing large batches middle-and small-sized work pieces such as mass, cast steel, cast iron, and is suitable for welding parts of all-around blasting cleaning, used for all kinds of hanging type artifacts.
2. What are the characteristics of the machine?
This series has three types: continuous mix, step-by step and accumulating roller conveyor. The workpieces, along with the pendent chain, move continuously or step by step, or by accumulating roller conveyor transportating. they can stop at given position and shot blasting room. It is very easy and exact to finish the static loading/unloading and shot blasting works. the single hook can load capacity of 50-2000kg, accumulating roller chains has unique advantages:high efficiency and reliable operation.
3. What is it combined of?
It is composed of shot blasting machine, wear-resisting rubber band, twisted dragon, ascending, separator, incoming material conveying, dust removal machine, cleaning machine combination.
4. Technique parameter
| No | Item | step moving type shot blasting machine | Continuous moving shot blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | |||
| 1 | Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| 4 | Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | Converter speed |
| 6 | Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | 2560 |
| 7 | Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimension of shot blasting machine | mm | 8450*5350*5003 | 12235*5410*9411 | 4500*5350*5003 | 18000*5960*6440 | 17700*9615*10000 |
NOTICE:
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.

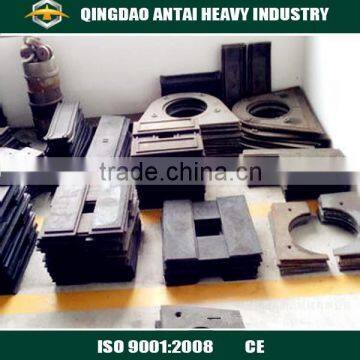

SPARE PARTS

1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )
2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.
3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI, CNC, COSCO etc insure the goods to the port on time.
What Service Antai can supply?


| Qingdao Antai Heavy Industry Machinery Co.,LTD. | ||||
| A.Founded in 2003, 10 years experience for making shot blasting machine. | ||||
| B.A group company, having real estate, machinery and leather bags industry. | ||||
| C.Eight experienced engineers to consider every possibility for customers. | ||||
| D.Three of them has over 25 years knowledge of shot blasting technology. | ||||

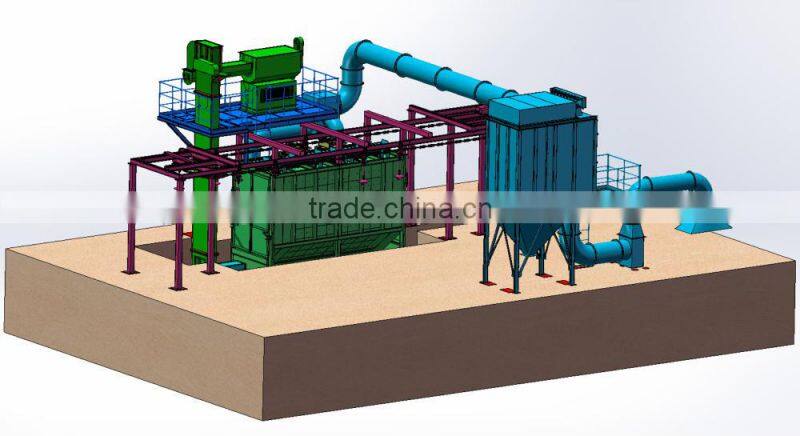

| E.3D software for auxiliary design, Show every design details in front of you. | ||||
| F.Experienced technicians for production, installation, commissioning & service. | ||||
| G.ISO 9001:2008 certified company, CE certificate will be issued soon. | ||||
| H.All machining parts out sourced from professional CNC machining company | ||||
| with strict quality control procedure. | ||||
| I.Own foundry to produce special material spare parts for our machines. |
CERTIFICATES

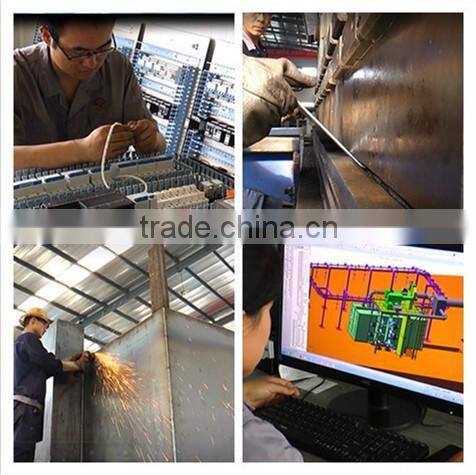

WORKSHOP
CUSTOMER VISITING OUR COMPANY
1. How many days do you need to produce this machine?
