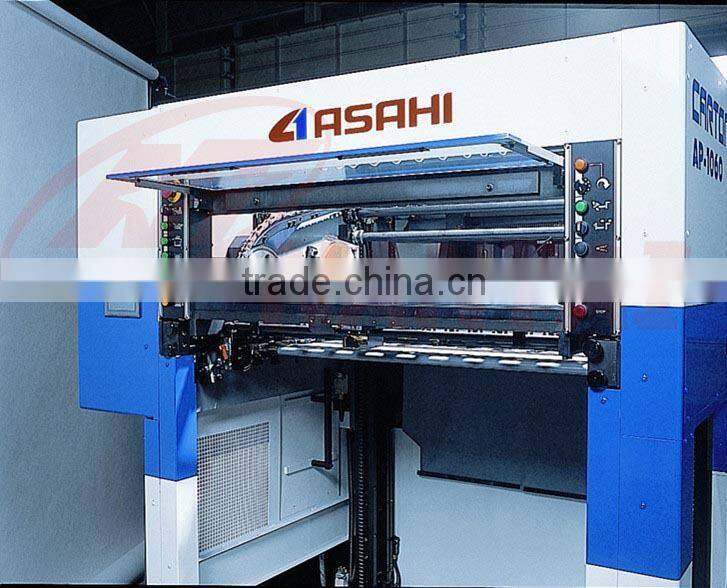

ASAHI-Carton Flat-bed Die Cutting Machine

• The machine is mainly used for die cutting, creasing and cold pressing cartons, cardboard box and labels in packaing and decoration industry, especially for various exquisite printing, such as cigarette packs, wine boxes, gift boxes, home appliance boxes, cosmetic boxes, etc.
• The machine can mark  convex-concave impression, providing stereoscopic printing. Machine automatically run from feeding section, and die cutting section and delivery section, has many functions and advantages such as automatic checkout function, failure indication function, non-stop exampling function, heavy die-cutting pressure, high registration precision, etc.
• The main driven system of this machine equips magnetic clutch and brake. The main sprocket shaft equips torsion limiter(safety clutch). There are many safety detective cameras and safety devices, utmost avoid the damages of operator due to  emergency, providing safety for person and equipment.

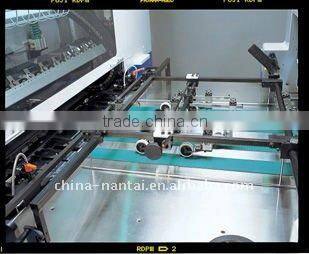

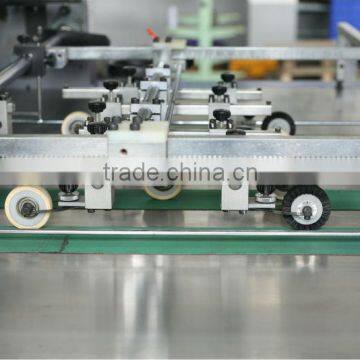

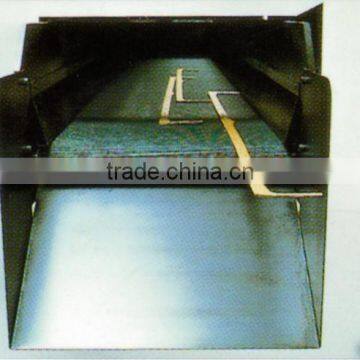

Feeding transfer system

• High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.
• The position of rubber conveyer belt; pressure roller and brush roller can be easily adjusted according to the size of sheets.
• The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed and precision.

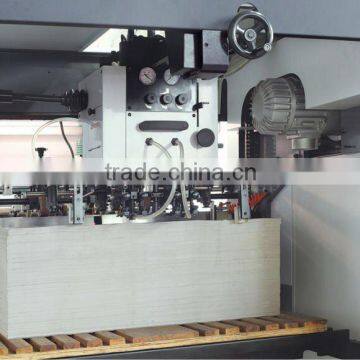

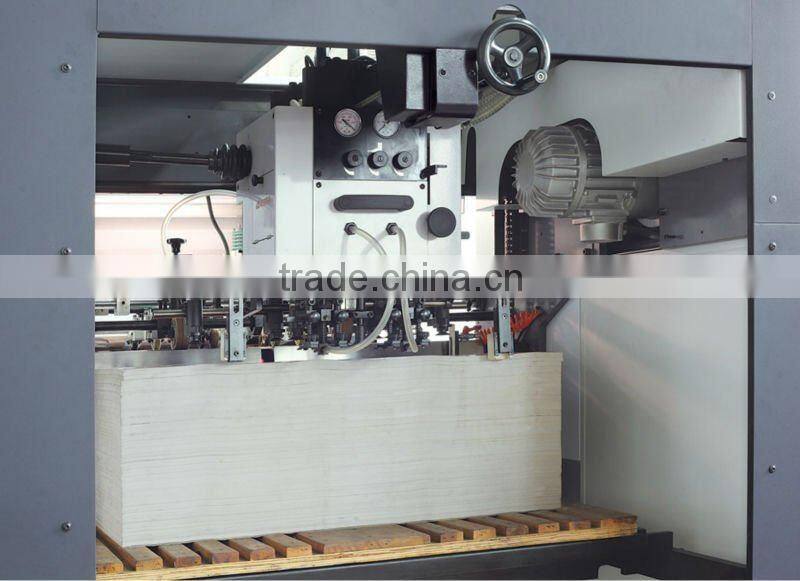

Feeder

• High-speed feeder feeding system from Japan is adopted, with vac-sorb can send the board one by one to die-cutting section.
• Pressure and inspiratory capacity of  vac-sorb can be adjusted according to thickness; status and shape of the board.
• The front part of feeder has micromatic setting, can move all around, and makes sure the precision of feeding.
• Treble safety protection device prevents feeder head from bumping.

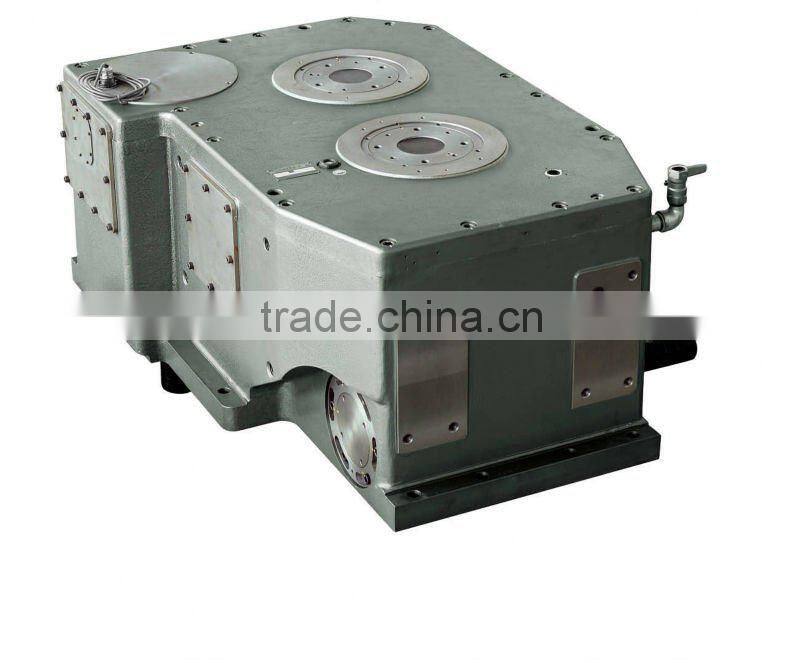

Cam box from Sankyo

• Motive force transmission device adopts Sankyo cam box (graduator) from Japan, and safety clutch.
• The safety feature for overload protection can protect gripper pin from striking, make paper transfer more stabely with higher precision

Delivery section

The partial inserting and labeling counter and auxiliary receiving paper platform are fitted to realize non-stop receiving.

The independent cam link mechanism moves with graduator, making receiving more tidy.

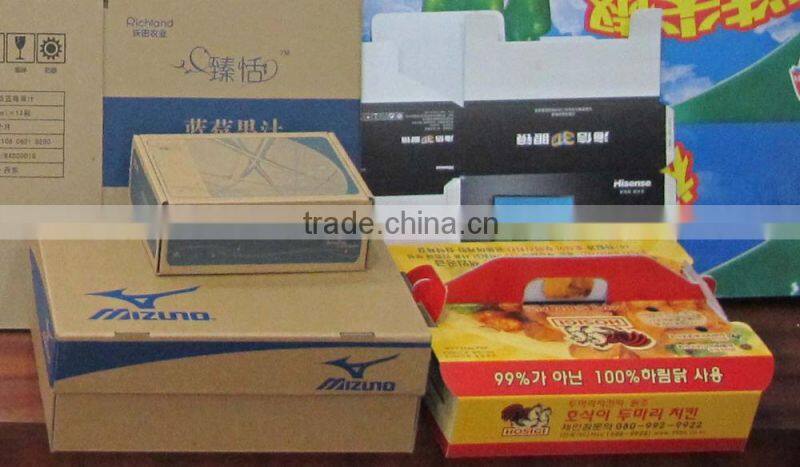

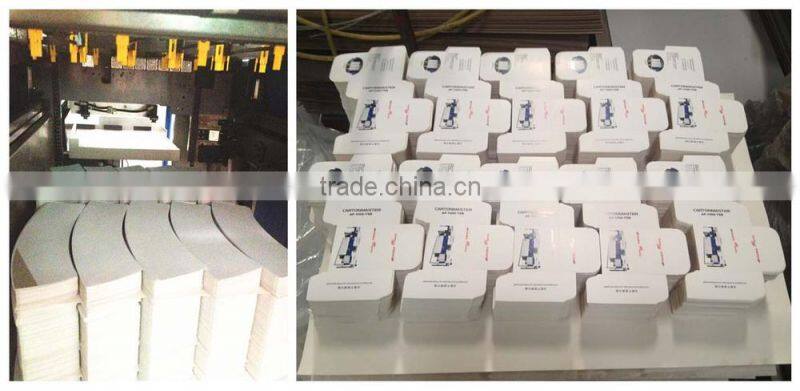

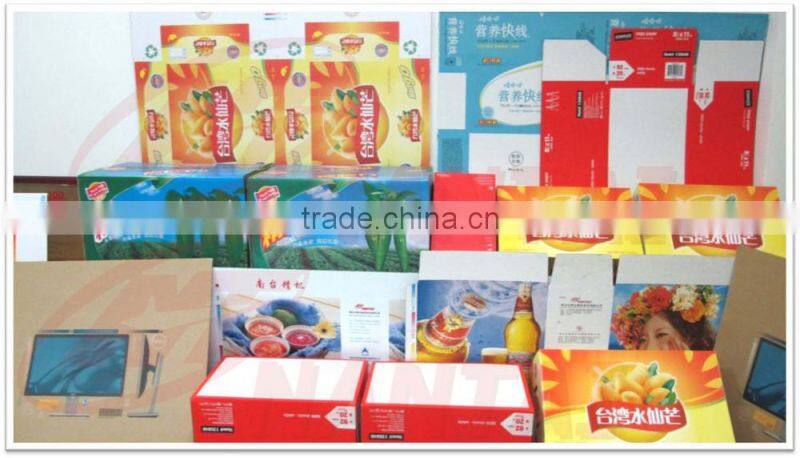

CARTON SAMPLE

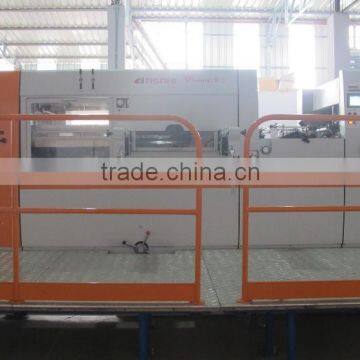

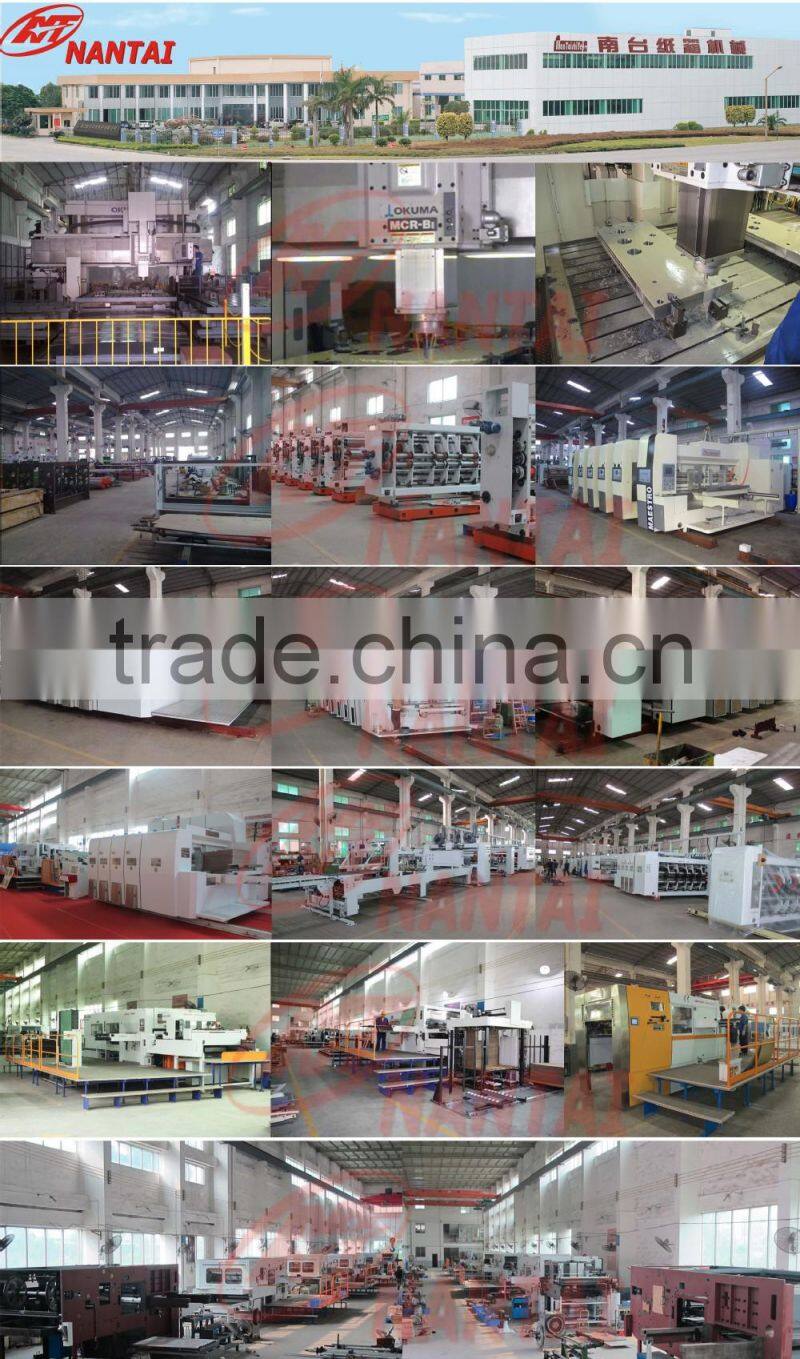

FACTORY VIEW

WELCOME TO VISIT OUR COMPANY!
