ASAHI-NANTAI Automatic Die Cutting Machine 1060TN

        Feeding transfer system

• High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.

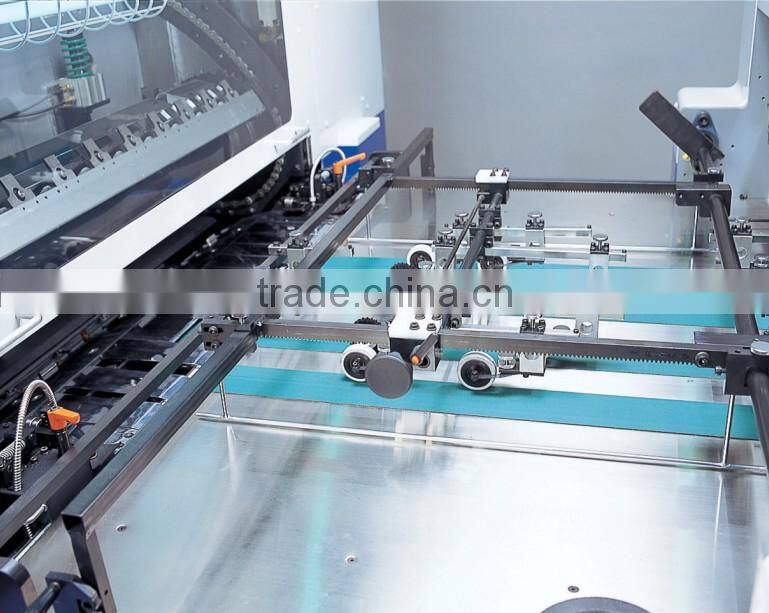

• The position of rubber conveyer belt, pressure roller and brush roller can be easily adjusted according to the size of sheets.
• The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed and precision.

      Control panel and The Man-machine interface

• Centralized control for easy operation.
• Constant monitoring of sensor conditions.
• Feeder and delivery tables include incremental hoist control that operate in 5 different modes.
• Visual fault finding diagnostic "help and Maintenance Menu"
• Optional, communications with tailor made program for production planning links.

       Feeder

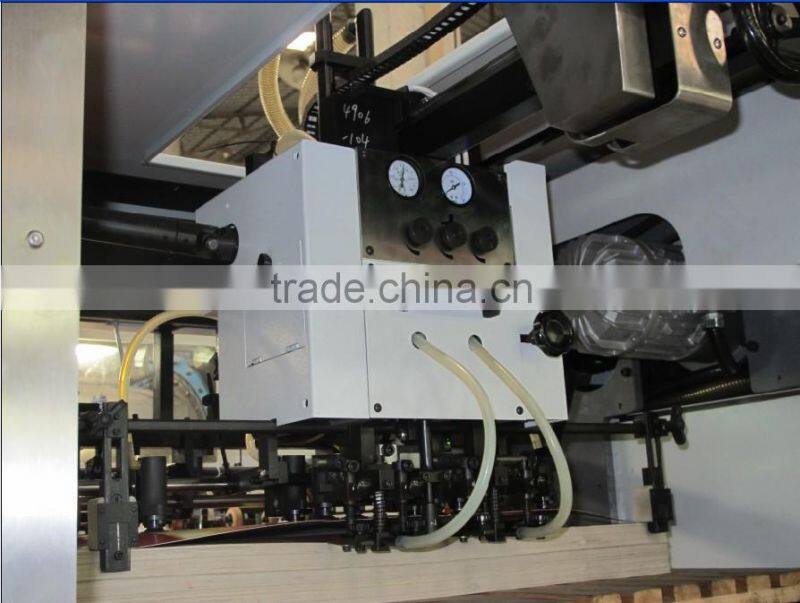

• High-speed feeder feeding system from Japan is adopted, with vac-sorb can send the board one by one to die-cutting section.
• Pressure and inspiratory capacity of vac-sorb can be adjusted according to thickness, status and shape of the board.
• The front part of feeder has micromatic setting, can move all around, and make sure the precision of feeding
• Treble safety protection device prevents feeder head from bumping.

       Cam box from Sankyo

• Motive force transmission device adopts Sankyo cam box (graduator) from Japan, and safety clutch.
• The safety feature for overload protection can protect gripper pin from striking, make paper transfer more stabely with higher precision.

       Delivery section

• The independent cam ink mechaism moves with graduator, making receiving more tidy.
• Delivery section is used for stacking finished paper. When gripping bar catches paper and stop at delivery section, discharged ram pushes the paper down.
• Along brush makes finished paper fall smoothly, and eliminates static, electricity.
• After straightening, paper stacks tidily on the bracket.
• The partial inserting and labeling counter and auxiliary recieving paper platform are fitted to realize non-stop receiving.

Cross adjustment device

• Side limiting stopper integrates paper pushing and pulling. It is easy to switch pushing and pulling style by pressing the button according to the thickness of paper.
• Photo detector can be accurate to less than 0.1mm. Machine will automatically stop and wait for detection for unacceptable tolerance.
• The safety feature of defence overloading impact can protect rake teeth for gripping paper avoid striking, making paper transfer more stable, and higher precision.

Stripping

• The structure of stripping frame adopts three frames structure, upper, middle and down frame.
• Stripping pins or male and female dies are optional for stripping.
• For supporting middle positioning structure of die-cutting section, stripping section also adopts the same structure to simplify switching plate procedure, guarantee the position of plate, and improve production.
