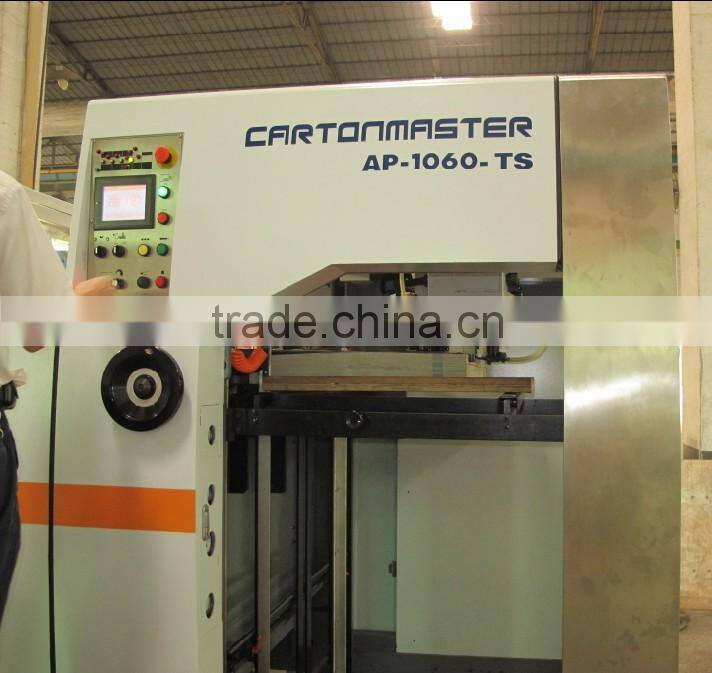

ASAHI NANTAI Automatic Die Cutting Machine

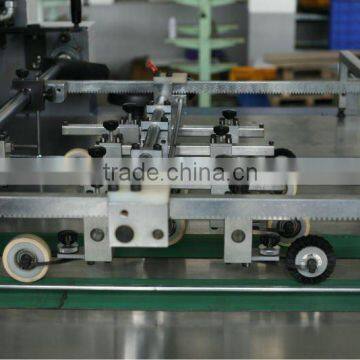

• High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.
• The position of rubber conveyer belt; pressure roller and brush roller can be easily adjusted according to the size of sheets.
• The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed precision.

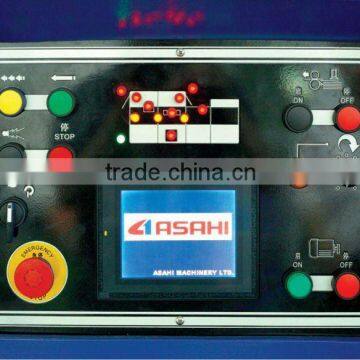

• Centralized control for easy operation.
• Constant monitoring of sensor conditions.
• Feeder and delivery tables include incremental hoist control that operate in 5 different modes.
• Visual fault finding diagnostic"help and Maintenance Menu".
• Optional, communications with tailor made program for production planning links.
• Motive force transmission device adopts Sankyo cam box(graduator)
  from Japan, and safety clutch.
• The safety feature for overload protection can protect gripper pin from striking, make paper transfer more stabely with higher precision.
•  The independent cam link mechanism moves with graduator, making receiving more tidy.
• Delivery section is used for stacking finished paper. When gripping bar catches paper and stop at delivery section, discharged ram pushes the paper down.
• A long brush makes finished paper fall smoothly, and eliminates static electricity.
• After straightening, paper stacks tidily on the bracket.
• The partial inserling and labeling counter and auxiliary receiving paper platform are fitted to realize non-stop receiving

CARTON SAMPLE

FACTORY VIEW
