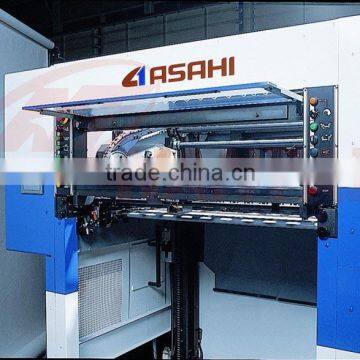

ASAHI-Automatic Diecutting Machine

Continuous high speed and production based on enough durability also long run.

Effective and simple fine adjustment feature during production.

Full of our philosophy and new creative technology based on machine operation and human engineering.

Stable board-feeding with effective vacuum and blowing

Lifting up and down by motor driven system.

Simple operation for back and forth positioning with pressise also quick sliding system by manual for long traveling.

Features in new Feeder

. Feeder can continuously run at high speed and micro-adjusted during running.

. Based on the full play to new technique, we focus on operability and productivity.

. Stable feeding is realizable by strengthening vacuity and suction device.

. Adjustment of angle and height of the first and second suction head is by handle at the side of feeder.

. The lifting of feeder is motorized.

. Forward and backward movement of feederis easy and accurate.

. Large overall motion is adjusted by linear guide manually.

Feeding Section

. High speed feeder system is originally imported from Japan, with vac-sorb to send paper to the feeding

transfer section one by one.

. Pressure and inspiratory capacity of vac-sorb can be adjusted according to the thickness, condition and

shape of cardboard.

. The front part of feeder has micromatic setting device, can move to the front, back, up and down to

guarantee the feeding precision.

. Treble safty protection device protects feeder head from bumping.

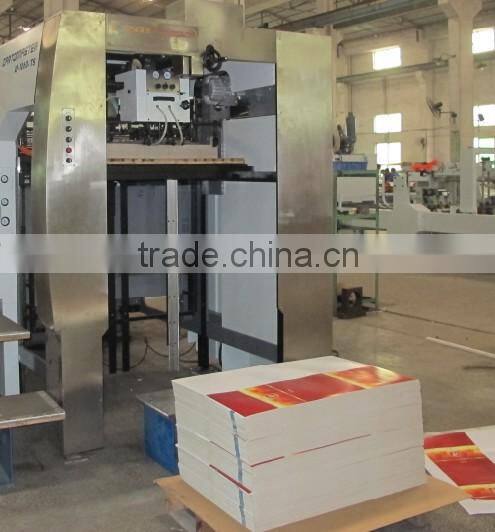

Delivery Section

. The independent cam connecting rod driving machanism synchronous running with time graduator, making receving more tidy.

Delivery section is used for stacking finished paper. When gripping bar catches paper and stops at delivery section, descharged ram pushes the paper down.

. A row of brushes make finished paper fall smoothly, and eliminates static electricity.

. After straightening, paper stacks neatly on the bracket.

. The partial inserting and labeling counter and temporary receiving paper platform are fitted to realize non-stop receiving.

Stripping Section

. The stripping frame adopts three frames structure, upper, middle and lower frame.

. Stripping pins or male and female dies are optional.

. Coordination with middle positioning structure to simplify changing plate procedure,

guarantee the precise positioning of  changing plate , and improve productivity.

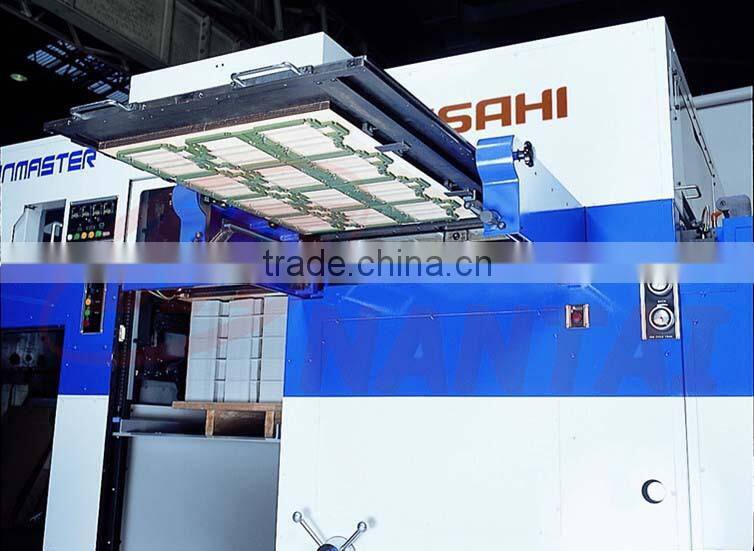

Press Section

. Quick-changing plate and auto self-lock system can shorten the time of changing plate. With independent

four angle pressure adjusting device can make pressure balanced and the use-life of die for more than 20%.

. Transducers are installed on the die-cutting steel plate to prevent the plate in wrong position which causes deflected

creasing lines and defects.

. Positioning structure and aerometal teeth rake. Tooth pin adopts double-chip structure, made of silicon manganese,

and provides more than twice durability compared with competitors.

. The special processed chain is from DID, Japan, each of  them is stretch processed in Japan and supplied in pair,

making the service life longer.

. Magnetic clutch originally imprted from Japan can quickly divide and shut, working normally wihtout extra air supply.

CARTON SAMPLE

Carton Sample

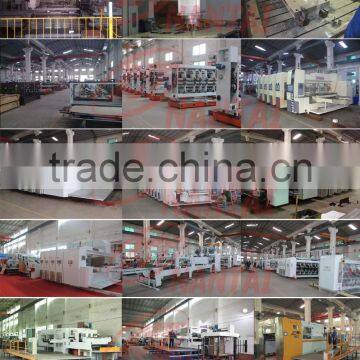

Factory view
