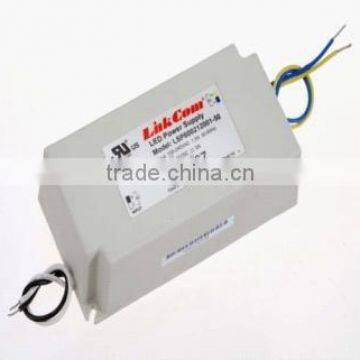

LSP600214001 60w Linkcom Led power Supply/CONSTANT CURRENT/CE TUV

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1,Linkcom LED Power
2,TUV CE UL ROSH
3,IP67,constant current 2500mA
4,60W (With PFC)

EATURES

Suitable for Hi-Power LED LightingApplications.

Universal AC input / Full range

Constant Voltage & Current limit ProtectionOVP; OTP and Short-Current Protection

High Operating ambient Temp: -20°C~+60°C

Design refer to UL1310 Class 2

Meet with CE EN55015 & EN55024

Comply with indoor/outdoor waterproof (IP67)

Electrical Specifications @25°C
Model		LSP600212001	LSP600224001
Part NO.		LSP600212001-50	LSP600224001-50
Output	DC Voltage	12.0± 3%	24.0± 3%
	Rated current	5A	2.5A
	Rated power	60W	60W
	Protection	CV ; CC ; OVP ; OTP ; SCP
Input	Voltage range	100~240Vac full range
	Frequency range	47~63Hz
	Efficiency (Typ.)	83%	83%
	AC current	100Vac<1.25A 240Vac<0.7A	100Vac<1.25A 240Vac<0.7A
	Inrush current	50A/230Vac cold start
	Leakage current	0.75mA/132Vac/60Hz
Environme nt	Operating ambient Temp.	-20°C~+60°C
	Operating relative Hum.	Comply with indoor/outdoor waterproof
	Storage ambient Temp.	-40°C~+80°C
	Storage relative Hum.	Comply with indoor/outdoor waterproof
Others	MTBF	100000 hrs/25°C
	Safety & EMC	UL1310 & CE EN55015 ; EN55024
	RoHS	YES	YES
	Dimension(mm) LWH	1487340
