Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | Powell lens | Material | Other, Glass, BK7,N-SF6,N-SF5,Fused Silica | |
| Usage | Optical | Structure | Other, aspheric | |
| Shape | Cylindrical |
Product Description
Laser Line Generation Lenses/Powell Lenses
Introduction for powell lenses

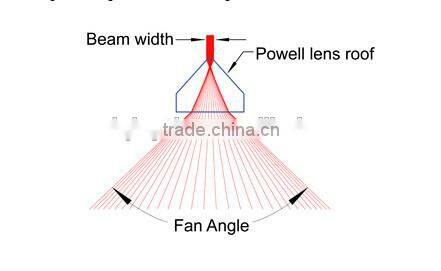

The Laser Line Generator Lenses (Powell Lens) is one kind of aspherical lens, which can
transform laser beam into a straight laser line. At present our Laser Line Generator
Lenses are available in fan angles of 5°,10°, 15°, 20°, 30°, 45°, 53°, 60°, 70°, 75°,
85° and 90° ,and the lenses are optimized for a Φ0.8mm, Φ1mm, Φ1.25mm, Φ1.5mm,
Φ2mm, Φ2.2mm, Φ2.6mm, Φ3mm, Φ3.6mm, Φ4mm and Φ5mm input laser beam
diameter.
These lenses offer excellent overall stability and line quality. They outperform
cylindrical lenses that generate Gaussian beam profiles with hot-spot center points and
fading edges.
Application:
- Ideal for Alignment and Machine Vision Applications
- Multiple Fan Angles Available
- Creates Uniform, Straight Line
- Uniform Laser Line with Nearby Flat Top Profile
- Output Fan Angles of 30° 45° 60° 75°
- Design for 635nm 650nm
Specification:

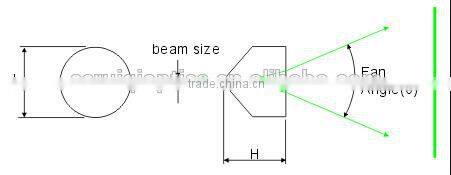

Fan angle | materials | wavelength(nm) | Input beam(mm) |
5° | BK7 | 532,650 | 0.8-1,2-3,5 |
10° | BK7 | 532,650 | 0.8-1,2-3,5 |
30° | BK7 | 532,650 | 0.8-1,2-3,5 |
45° | SF6 | 532,650 | 0.8-1,2-3,5 |
53° | BK7 | 532,650 | 0.8-1,2-3,5 |
60° | SF6 | 532,650 | 0.8-1,2-3,5 |
70° | SF6 | 532,650 | 0.8-1,2-3,5 |
85° | SF6 | 532,650 | 0.8-1,2-3,5 |
90° | SF6 | 532,650 | 0.8-1,2-3,5 |
You could customized as your demand

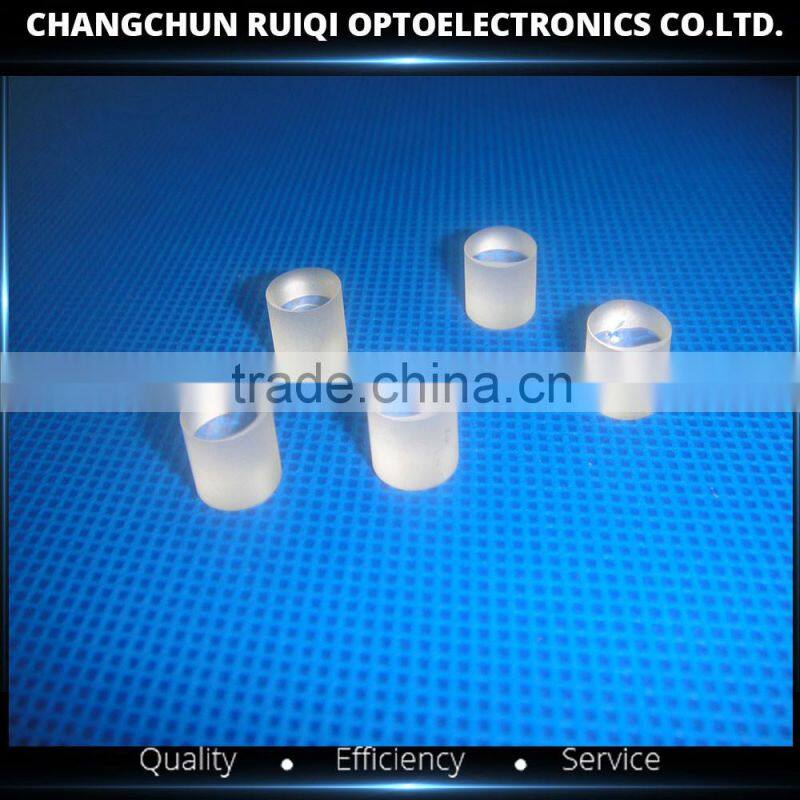

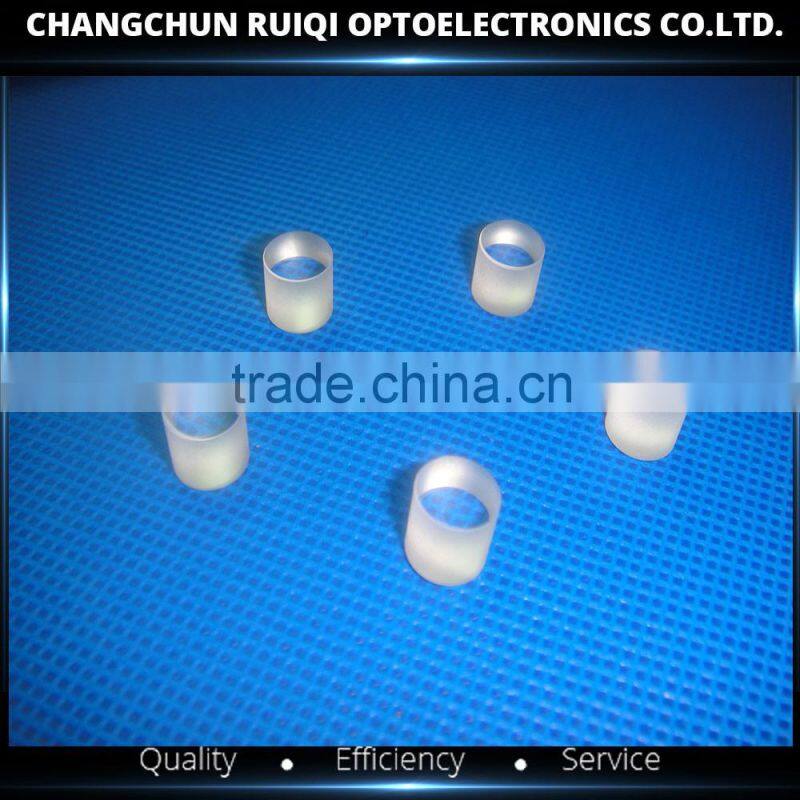

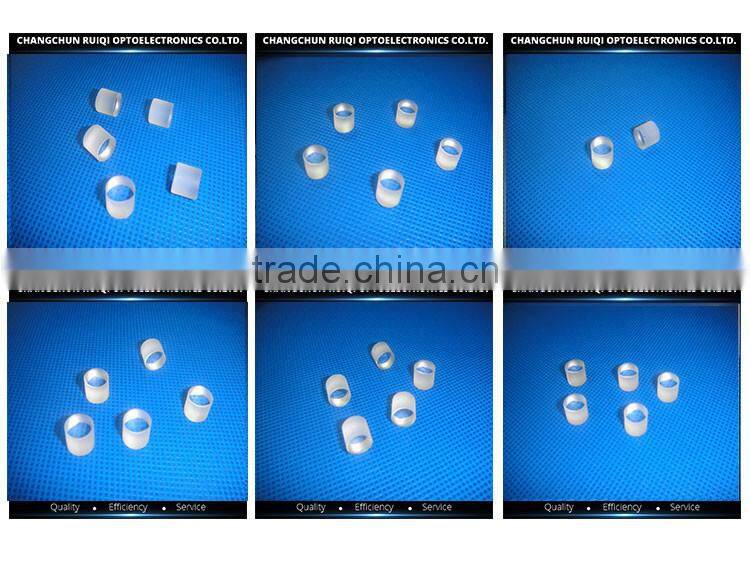

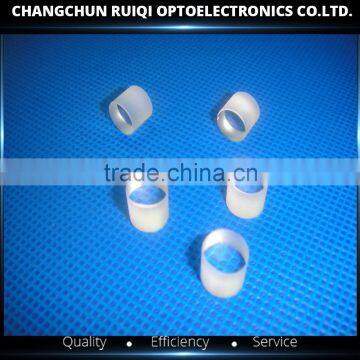

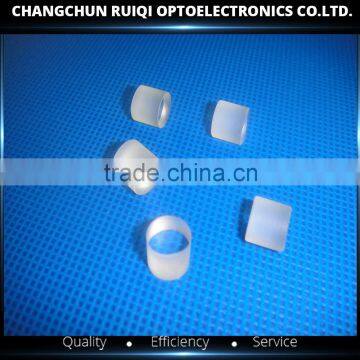

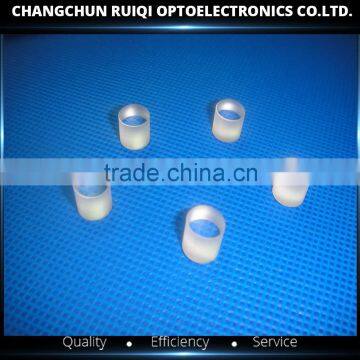

Proudcts as in picture,welcome to inquiry
