300mm Large Glass Magnifier Lens, Plastic Magnifying Lens
- Changchun Beijing Shenzhen Shanghai
- Credit Card
You May Like
-
VIS - AR Coated Plano Convex Lenses(BK7,Fused Silica,Sapphire)
-
BK7/K9 Optical Glass Large Plano Convex Lenses Magnifying Lenses
-
AR BBAR Coating BK7 Optical Glass Plano Convex Lens
-
100mm Plano Convex Lenses(BK7,Fused Silica,Sapphire) Quality Choice
-
Optical Glass Plano Convex Sapphire Glass Lens,Magnifying Glass Lens
-
300mm Diameter Optical Usage Double Convex Magnifying Glass Lens
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | CCRQ-PV1 | Material | Other, Glass, BK7,Fused Quartz | |
| Usage | Optical | Structure | Plano-convex | |
| Shape | Plano |
Product Description

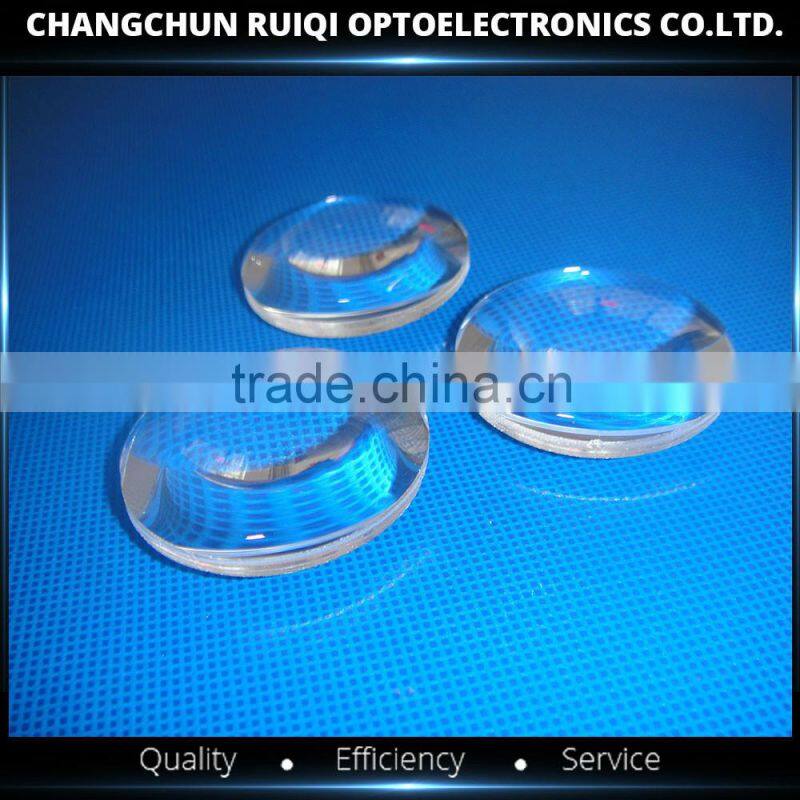

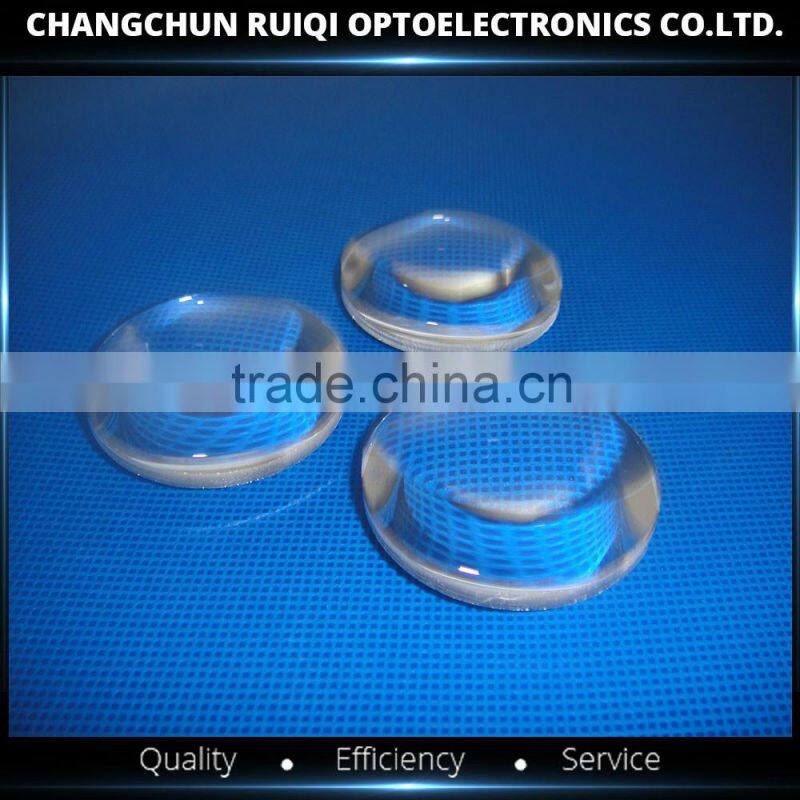

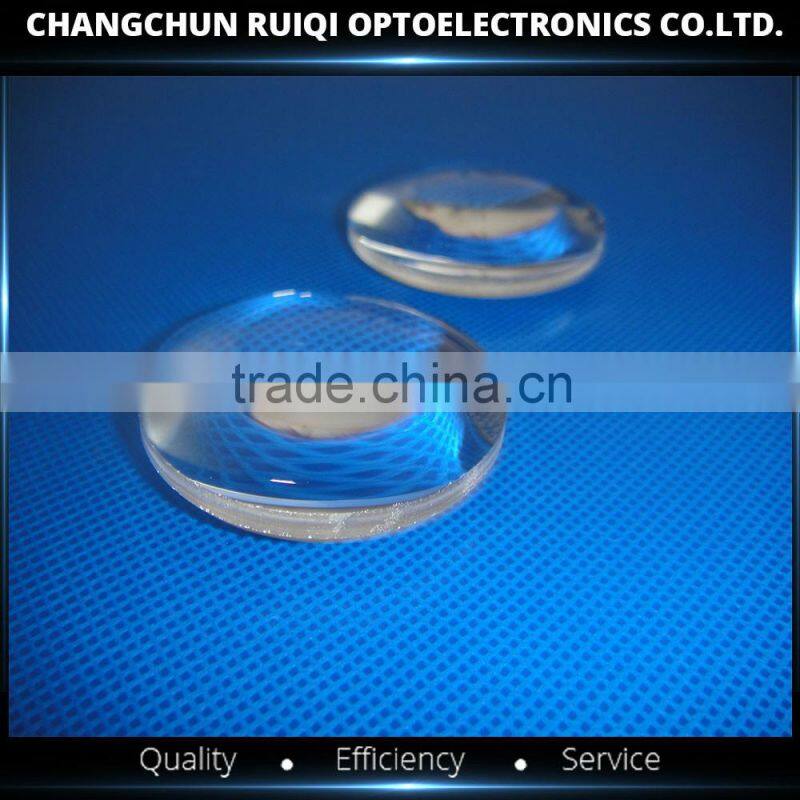

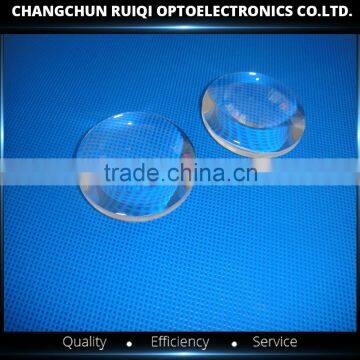

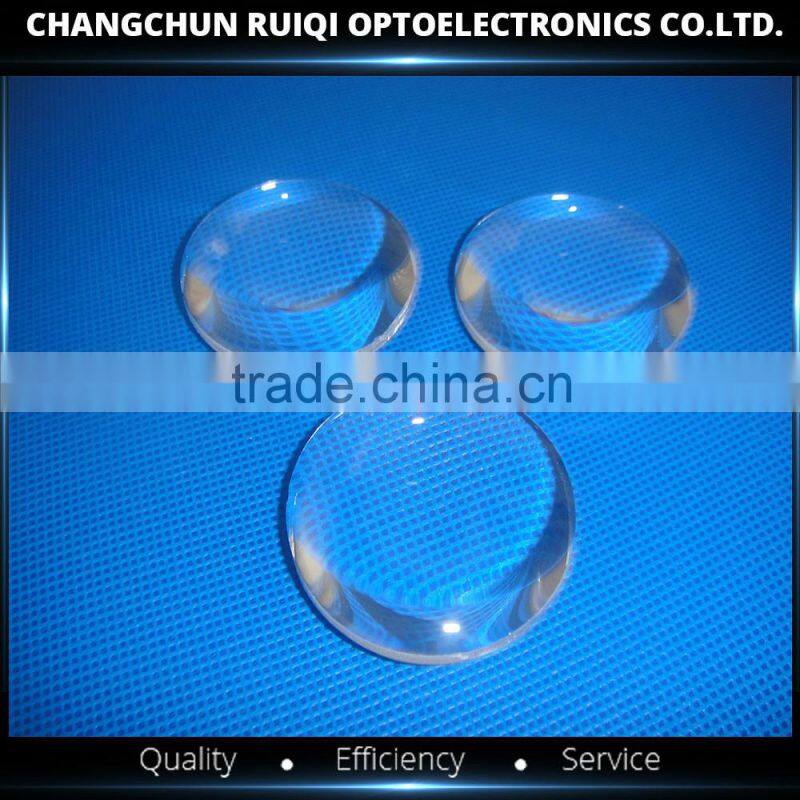

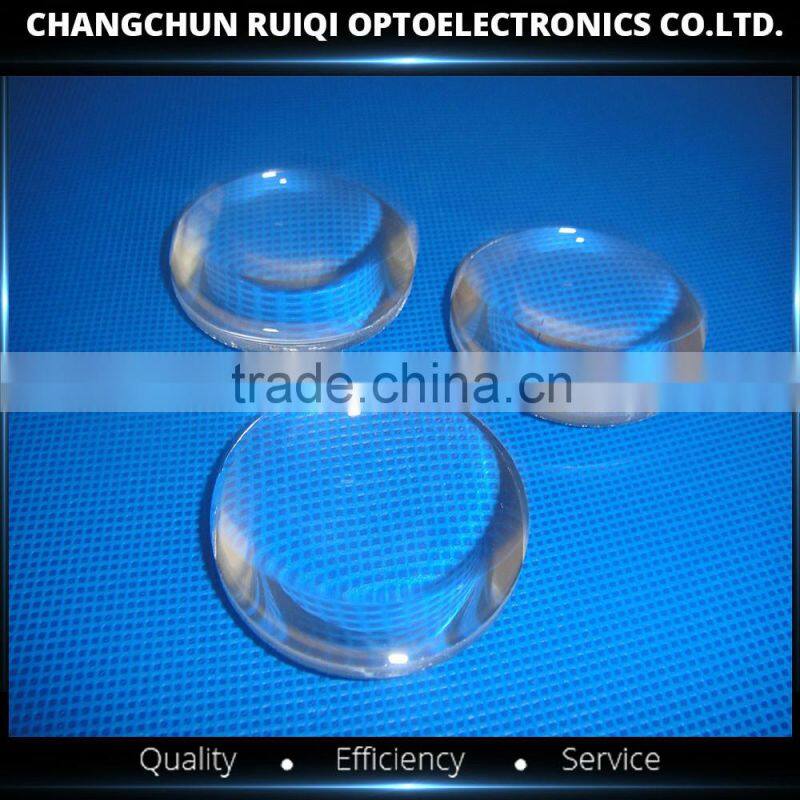

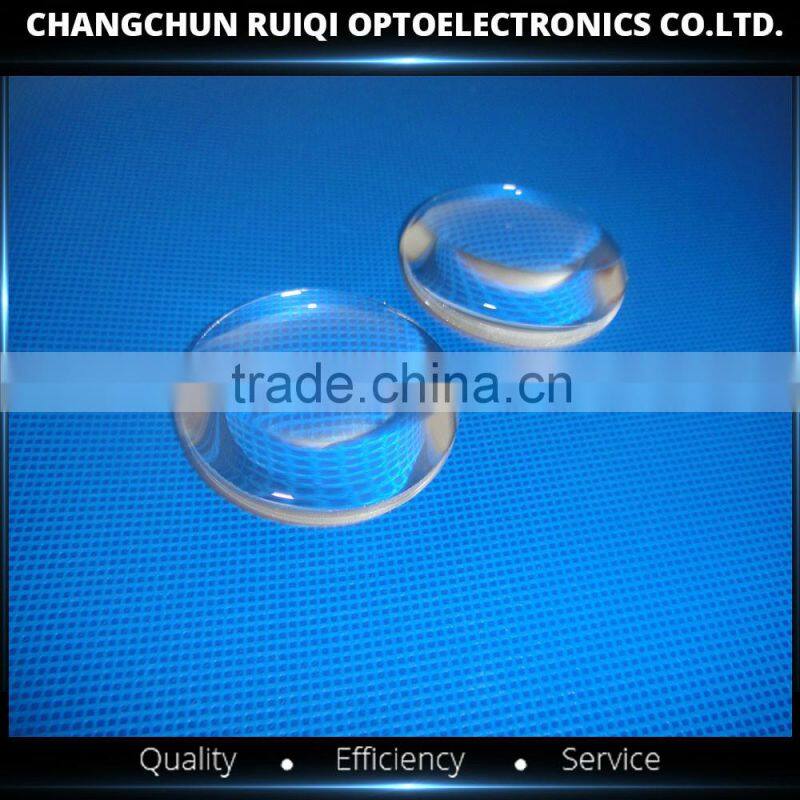

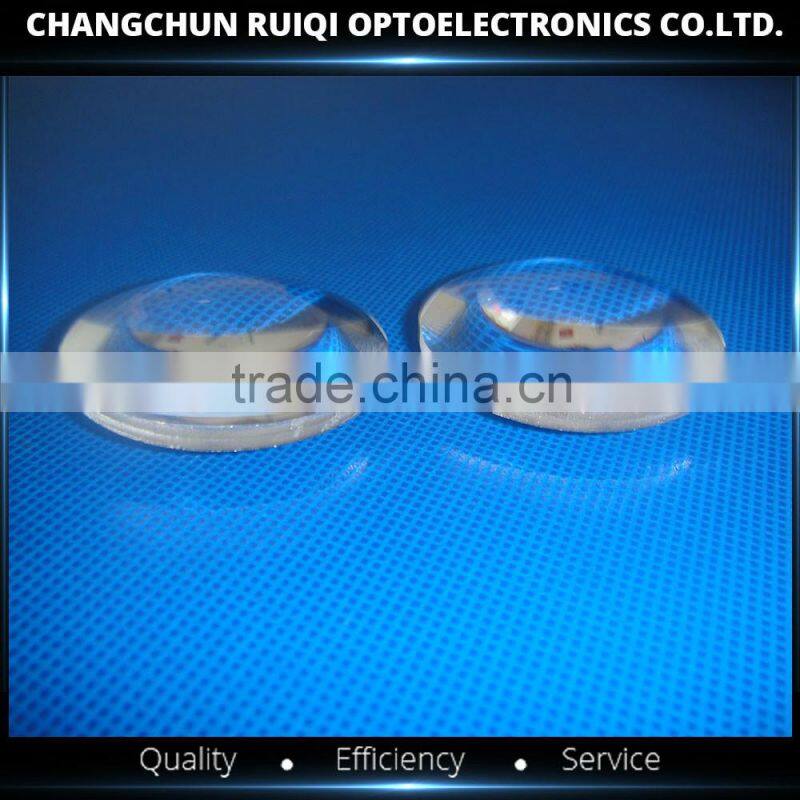

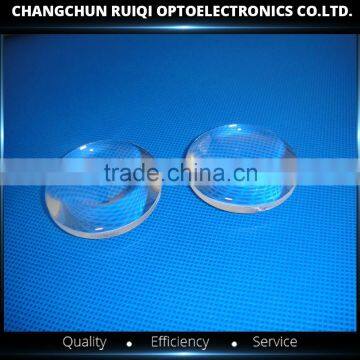

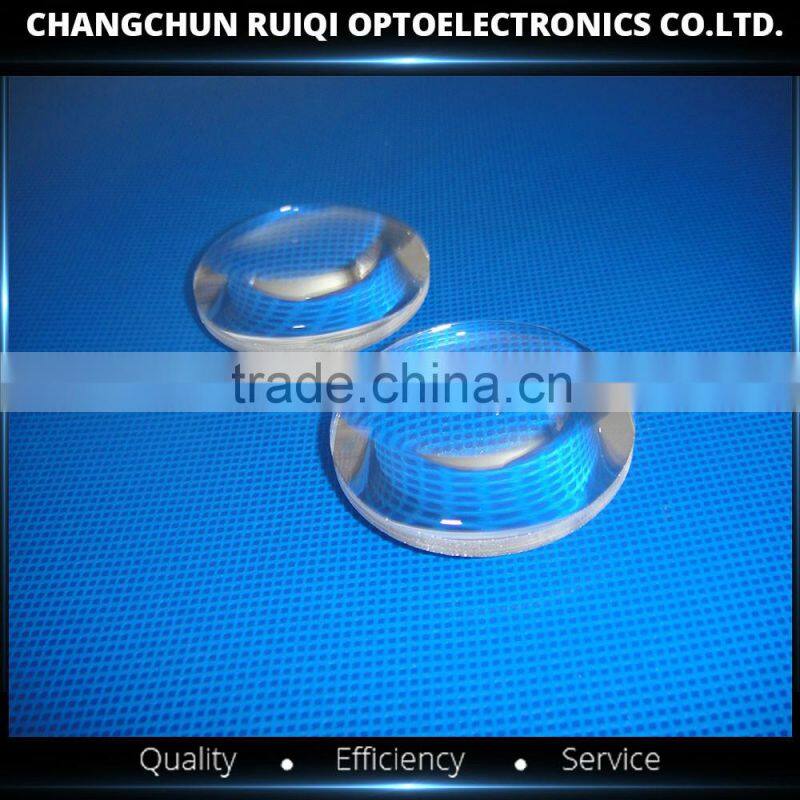

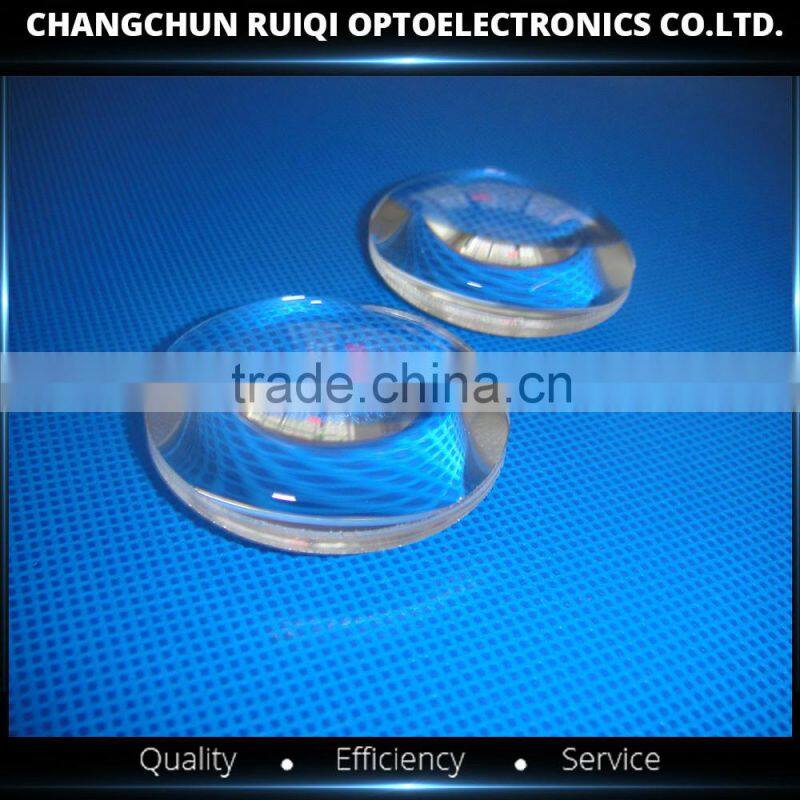

300mm large glass magnifier lens, plastic magnifying lens
Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
Changchun Ruiqi manufactures Plano-convex lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade,Sapphire,CaF2,MgF2 and BK7 Optical Glass. Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.
We also offer plano-concave lenses, which have negative focal length components and one concave surface. For information on our optic lens custom work, contact Ruiqi today.
Technical Specifications:
| Material | BK7 optical glass |
| Dimension | 300mm circular or square |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Center thickness | 53mm |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Focal length | 490mm |
| Edge Thickness | 3mm |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
