BK7 Powell lenses (Laser Line Generator Lenses)
USD $18 - $25
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Changchun Shenzhen Dalian
- Credit Card
You May Like
-
Laser Line Generation Lenses/Powell Lenses
-
40/20 polished right angle glass triangular prism for sale
-
N-BK7 Uncoated Corner Cube Retroreflectors Prism
-
N-BK7 Corner Cube Retroreflectors Prism,38.1mm Corner Cube Prism
-
N-BK7 Corner Cube Retroreflectors Prism,Laser Retroreflectors
-
N-BK7 Corner Cube Retroreflectors Prism, Unmounted Retroreflector Prisms
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | Powell lens | Material | Other, Glass, BK7,N-SF5,N-SF6 | |
| Usage | Optical | Structure | Other, cylindrical aspheric lens | |
| Shape | Cylindrical |
Product Description
BK7 Powell lenses (Laser Line Generator Lenses)
Introduction for Powell lens
Powell Lens is used to generate straight line.with aspherical curvature on its apex,the output line from powell lenses is even distribution of energy. For comparison, Cylindrical lenses generate gaussian beam profiles with hot-spot center points and fading edges.
To get enen distribution of engergy,the apex curvature needs to be slightly modified and optimized for particular laser beam
Features
- Generates uniform laser line
- Fan angle from 1°up to 90°
- Line uniformity better than 25% total variation in line intensity
- Line straighness better than 0.1%
- Custom made lenses also availalbe
Specifications
Fan angle | materials | wavelength(nm) | Input beam(mm) |
5° | BK7 | 532,650 | 0.8-1,2-3,5 |
10° | BK7 | 532,650 | 0.8-1,2-3,5 |
30° | BK7 | 532,650 | 0.8-1,2-3,5 |
45° | SF6 | 532,650 | 0.8-1,2-3,5 |
53° | BK7 | 532,650 | 0.8-1,2-3,5 |
60° | SF6 | 532,650 | 0.8-1,2-3,5 |
70° | SF6 | 532,650 | 0.8-1,2-3,5 |
85° | SF6 | 532,650 | 0.8-1,2-3,5 |
90° | SF6 | 532,650 | 0.8-1,2-3,5 |
You could customized as your demand

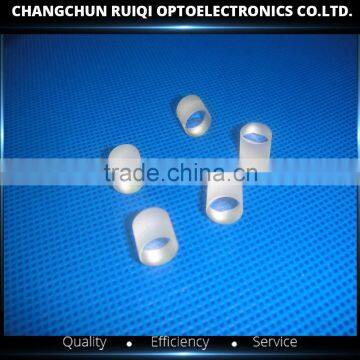

Proudcts as in picture,welcome to inquiry
