Home > Products > Prisms > Laser Line Generator Lenses,Fan Angle 30 45 60 75 ,N-BK7 Substrate Powell Lenses
Laser Line Generator Lenses,Fan Angle 30 45 60 75 ,N-BK7 Substrate Powell Lenses
US$ 18 - 25
/ Piece
1 Piece(Min. Order)
- changchun shenzhen Dalian beijing
- Credit Card
You May Like
-
BK7 Powell Lenses (Laser Line Generator Lenses)
-
Laser Line Generation Lenses/Powell Lenses
-
40/20 Polished Right Angle Glass Triangular Prism for Sale
-
N-BK7 Uncoated Corner Cube Retroreflectors Prism
-
N-BK7 Corner Cube Retroreflectors Prism,38.1mm Corner Cube Prism
-
N-BK7 Corner Cube Retroreflectors Prism,Laser Retroreflectors
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | Powell lens | Material | Other, Glass, BK7,N-SF6,N-SF5 | |
| Usage | Optical | Structure | Other, cylinder lenses | |
| Shape | Cylindrical |
Product Description
Laser Line Generator Lenses,Fan Angle 30 45 60 75 ,N-BK7 Substrate Powell Lenses
Introduction for powell lenses
The Powell lens resembles a round prism with a curved roof line. The lens is a laser line generator, stretching a narrow laser beam into a uniformly illuminated straight line
Unlike cylindrical lenses, which generate Gaussian beam profiles with hot-spot center points and fading edges, Laser Line Generator Lenses provide an even distribution of energy along the length of the entire line.
Application:
- Ideal for Alignment and Machine Vision Applications
- Multiple Fan Angles Available
- Creates Uniform, Straight Line
- Uniform Laser Line with Nearby Flat Top Profile
- Output Fan Angles of 30° 45° 60° 75°
- Design for 635nm 650nm
Specification:
Fan angle | materials | wavelength(nm) | Input beam(mm) |
5° | BK7 | 532,650 | 0.8-1,2-3,5 |
10° | BK7 | 532,650 | 0.8-1,2-3,5 |
30° | BK7 | 532,650 | 0.8-1,2-3,5 |
45° | SF6 | 532,650 | 0.8-1,2-3,5 |
53° | BK7 | 532,650 | 0.8-1,2-3,5 |
60° | SF6 | 532,650 | 0.8-1,2-3,5 |
70° | SF6 | 532,650 | 0.8-1,2-3,5 |
85° | SF6 | 532,650 | 0.8-1,2-3,5 |
90° | SF6 | 532,650 | 0.8-1,2-3,5 |
You could customized as your demand

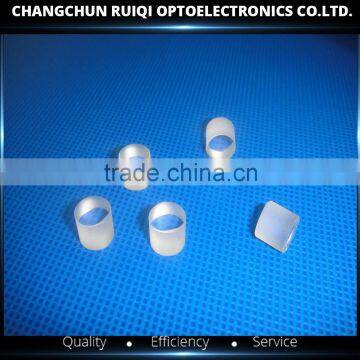

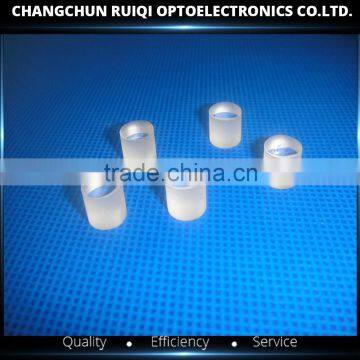

Proudcts as in picture,welcome to inquiry
