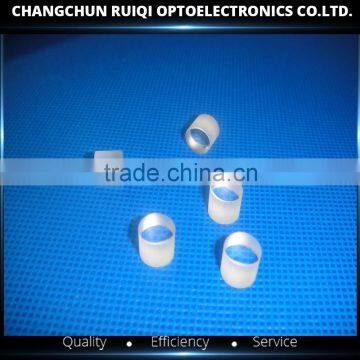

BK7/SF5/SF6 5 degrees Laser Line Powell Lens
USD $18 - $25
/ Piece
5 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Changchun Shenzhen Dalian
- Credit Card
You May Like
-
30 degree Full Fan Angle Laser Line Generator Lens,Powell lens
-
Laser Line Generator Lenses,Fan Angle 30 45 60 75 ,N-BK7 Substrate Powell Lenses
-
BK7 Powell lenses (Laser Line Generator Lenses)
-
Laser Line Generation Lenses/Powell Lenses
-
40/20 polished right angle glass triangular prism for sale
-
N-BK7 Uncoated Corner Cube Retroreflectors Prism
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | Powell lens | Material | Other, Glass, BK7,H-SF5,H-SF6 | |
| Usage | Optical | Structure | Other, cylindrical aspheric lens | |
| Shape | Cylindrical |
Product Description
BK7/SF5/SF6 5 degrees Laser Line Powell Lens
Introduction for Powell lens
The Powell lens has an advantage over cylindrical lenses because later one produces a poorly illuminated line, limited by the non-uniform Gaussian laser beam. Huge spherical aberration redistribute light along the line, decreasing the light in the central area while increasing the light intensity at the line's end. The outcome is uniformly illuminated line used in all manner of machine vision applications.
Features
- Generates uniform laser line
- Fan angle from 1°up to 90°
- Line uniformity better than 25% total variation in line intensity
- Line straighness better than 0.1%
- Custom made lenses also availalbe
Specifications
Fan angle | materials | wavelength(nm) | Input beam(mm) |
5° | BK7 | 532,650 | 0.8-1,2-3,5 |
10° | BK7 | 532,650 | 0.8-1,2-3,5 |
30° | BK7 | 532,650 | 0.8-1,2-3,5 |
45° | SF6 | 532,650 | 0.8-1,2-3,5 |
53° | BK7 | 532,650 | 0.8-1,2-3,5 |
60° | SF6 | 532,650 | 0.8-1,2-3,5 |
70° | SF6 | 532,650 | 0.8-1,2-3,5 |
85° | SF6 | 532,650 | 0.8-1,2-3,5 |
90° | SF6 | 532,650 | 0.8-1,2-3,5 |
You could customized as your demand
Proudcts as in picture,welcome to inquiry
