Co2 Laser Usage and Meniscus Shape Co2 Laser Infrared ZnSe Window
- Changchun Beijing Shenzhen Shanghai
- Credit Card
You May Like
-
IR Laser Optics, Zinc Selenide (ZnSe) Lenses for CO2 Lasers Quality Choice
-
Beam Expanders for CO2 Lasers
-
Stock Output Couplers and End Mirrors for CO2 Laser
-
Znse Output Couplers (partial Reflectors), Rear Mirrors (Silicon)for High Power CO2 Lasers
-
Optical Output Couplers (Partial Reflectors),Laser Output Couplers
-
Scanning Laser System Optics, F-theta Scan Lenses
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | high quality co2 laser focus lens | Material | Other, Glass, CVD Znse | |
| Usage | Optical | Structure | Other, Circular | |
| Shape | Plano |
Product Description

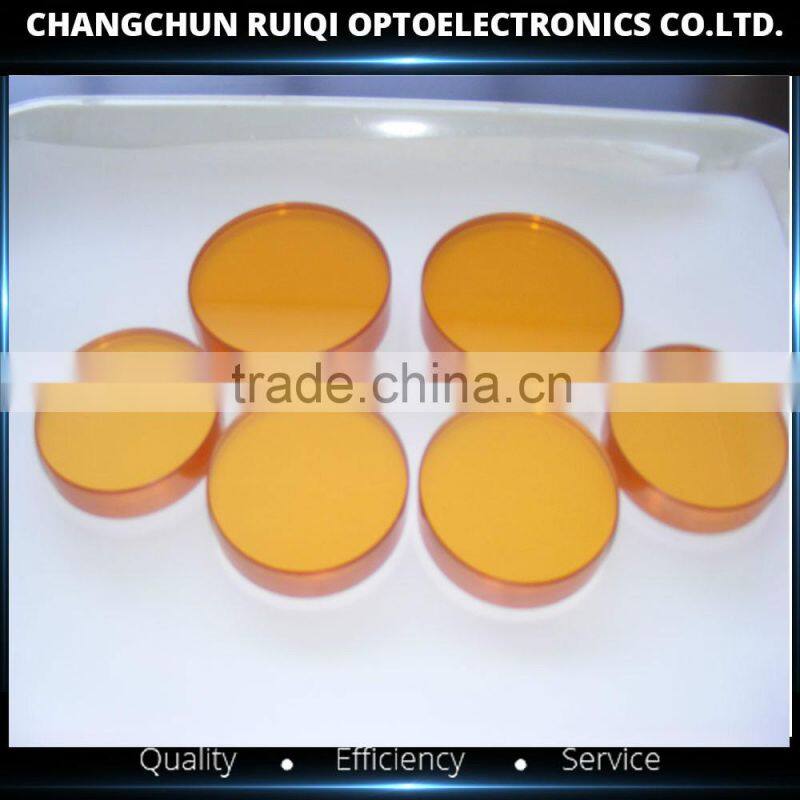

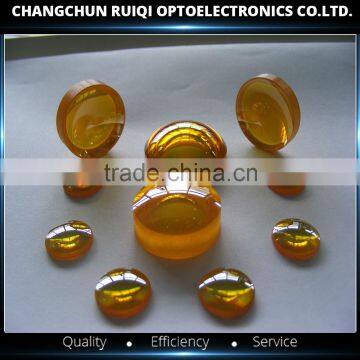

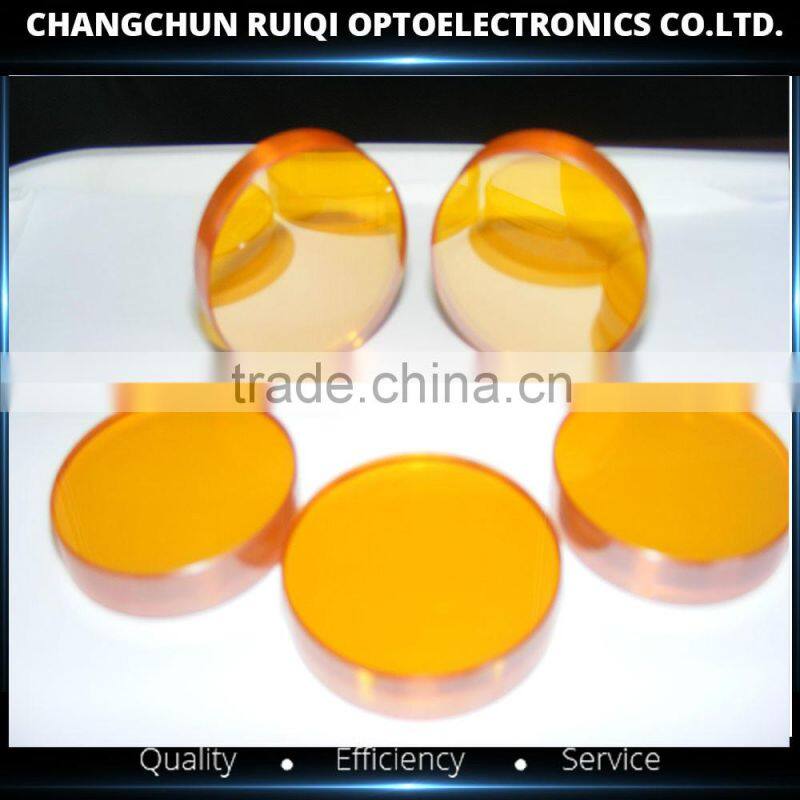

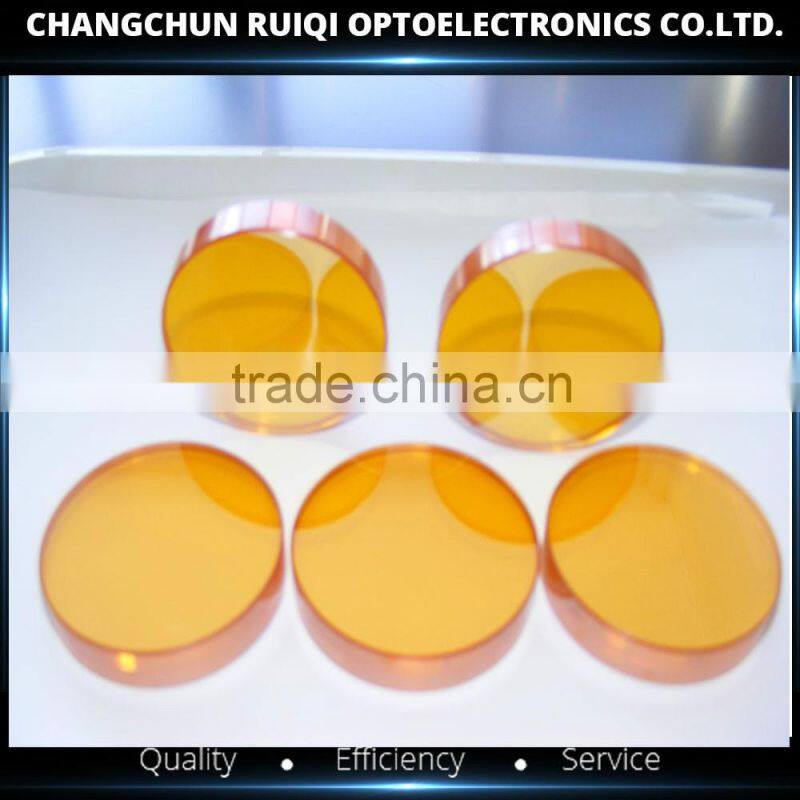

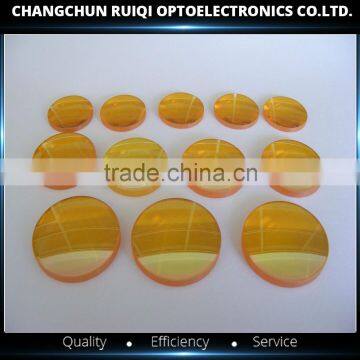

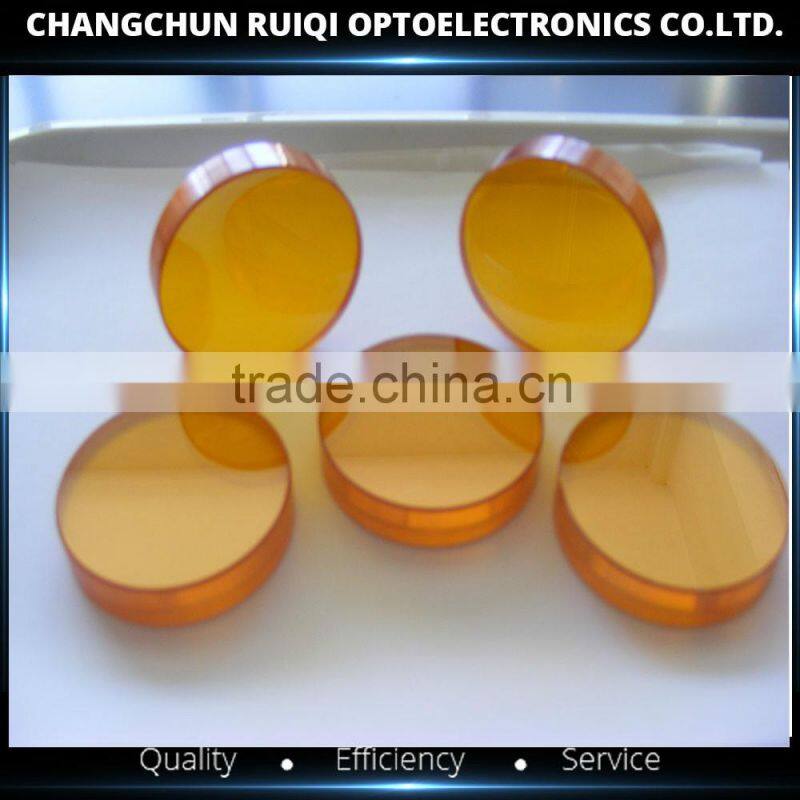

co2 laser Usage and Meniscus Shape Co2 Laser Infrared ZnSe Window
Co2 laser focus lens are made of USA imported CVD Zinc Selenide,which is produced by DOW chemical. USA made CVD ZnSe with sided AR-coated, whose main function is to decrease or eliminate the reflective light from lens, prisms, etc. and thus to increase these components transmittance rate and decline or eliminate stray light. Our focus lenses have advantages over than those of others, such as low laser power absorption rate, enduring high laser power density, stable surface coating film and wiping resistance. In CO2 laser industry common working band, 10.6 um, our laser lens transmittance rate is 99.8%.
As a most economical transmission laser focus components, laser focus lens is widely used in laser heat treatment, welding, cutting and infrared radiation collection. In order to obtain satisfactory performance and achieve the purpose that the surface of the lens should be towards the direction of imputed light beam towards the conjugate distance the longer end.
Technical Specifications:
| Material | CVD Znse |
| Diameter | 12.7mm 20mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Parallelism | 3 arc minute(standard) |
| Radius | 3000mm |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Type | Circular.Meniscus |
| Edge | 0.2mm*45degree,others are available upon customer request |
| Coating | AR Coating at 10.6um |
