BK7/K9 Plano Concave Cylindrical Optical Lenses Quality Choice
- Changchun Beijing Shenzhen Shanghai
- Credit Card
You May Like
-
CaF2 Plano Concave/Convex Cylindrical Optical Lenses
-
JGS1/JGS2/JGS3Plano Concave/Convex Cylindrical Optical Lenses
-
Plano Convex Cylindrical Lenses(BK7,Fused Silica,Sapphire)
-
Optical Glass Plano Convex Cylindrical Lenses
-
BK7 Plano Convex Cylindrical Lens
-
Custom Made High Quality BK7 Plano Convex Cylindrical Lens Focal Length 100mm
Product Details
| Place of Origin | Jilin, China | Brand Name | CCRQ | |
| Model Number | CCRQ-PVCL4 | Material | Other, Glass, BK7,Fused Quartz,Sapphire,CaF2 | |
| Usage | Optical | Structure | Plano-concave | |
| Shape | Plano |
Product Description

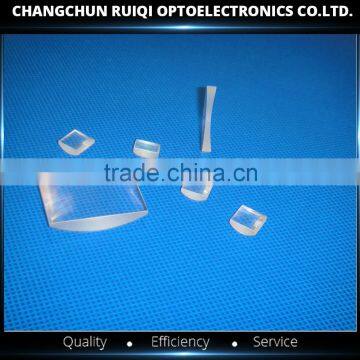

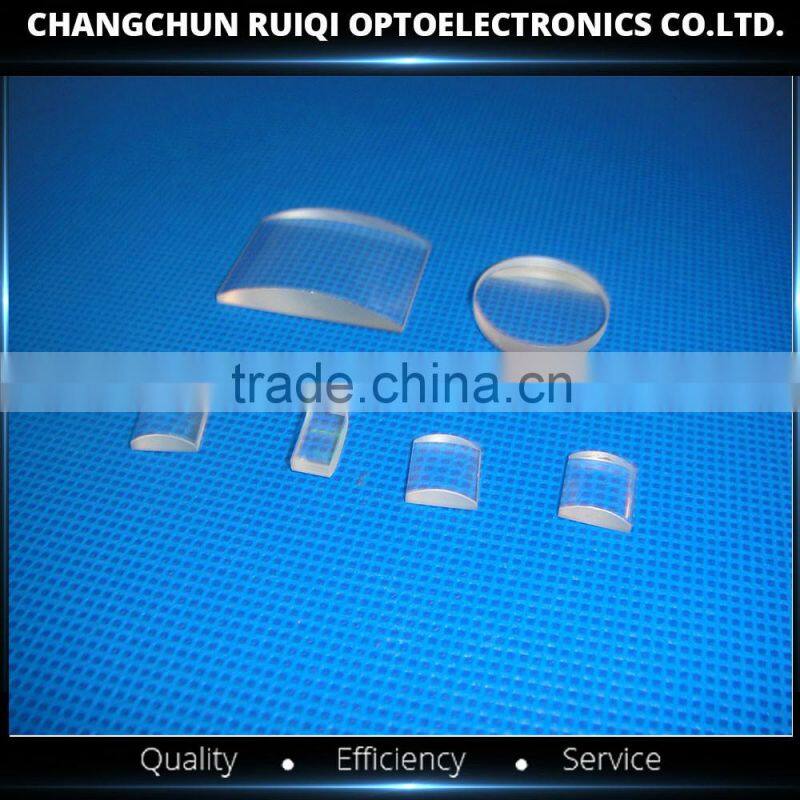

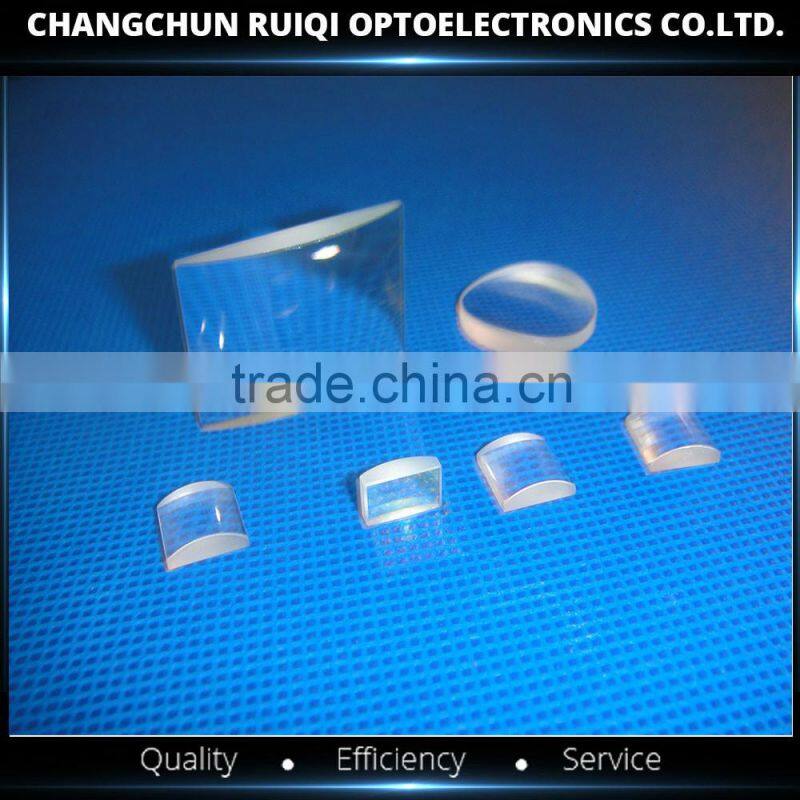

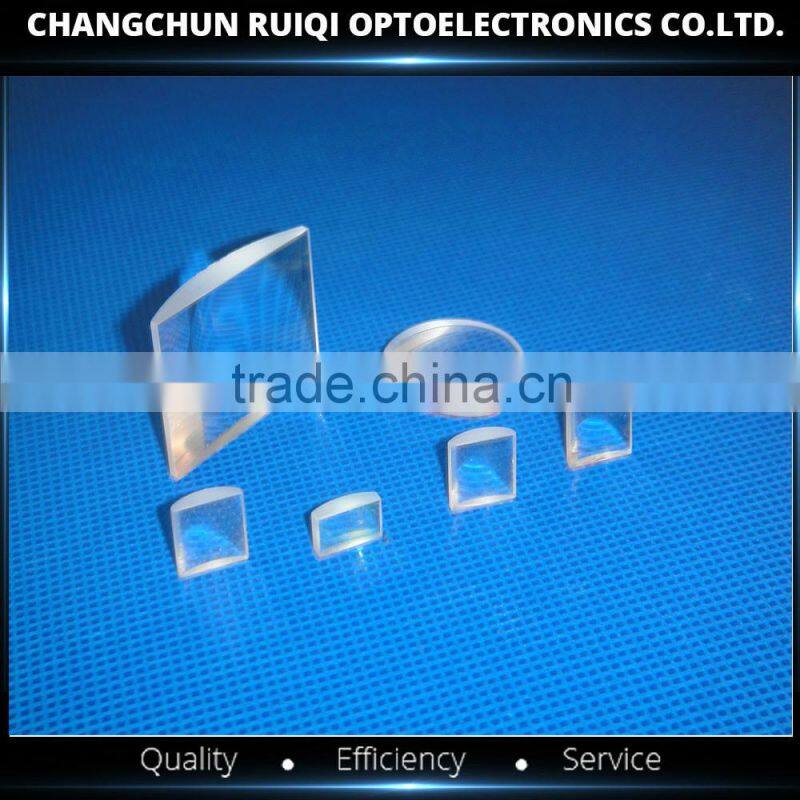

BK7/K9 Plano concave Cylindrical Optical Lenses
Cylindrical Lenses are used to condense,focus or expand light in a single dimension.Typical applications include laser scanners,holography,optical information processing/computing,spectroscopy,dye lasers,and scanning confocal microscopy.
Changchun Ruiqi manufactures Plano-convex cylindrical lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade,Sapphire,CaF2,MgF2 and BK7 Optical Glass. Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.
We also offer plano-concave Cylincrical lenses, which have negative focal length components and one concave surface. For information on our optic lens custom work, contact Ruiqi today.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2,BaF2 |
| Dimension | 5-300mm circular or square |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Centration | <3' |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Focal length | +/-3% |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
