Heat Pipe Solar Flat Panel Heater Collector for Swimming Pool Quality Choice

Detailed  solar water heater  project Description
1.Horizontal type or vertical type for choice
2More designs solar manifold
3.More materials & colors optional

solar water heater  project  Specifications:
1) inner manifold: Stainless steel SUS304-2B
2) outer manifold: Color steel or Stainless steel
3) Glass tube dimensions: 47mm x 1.5m x 50 PCS; 58mm x 1.8m x 50 PCS
4) Heat preservation: 72hrs
5) Hail resistance: 25mm

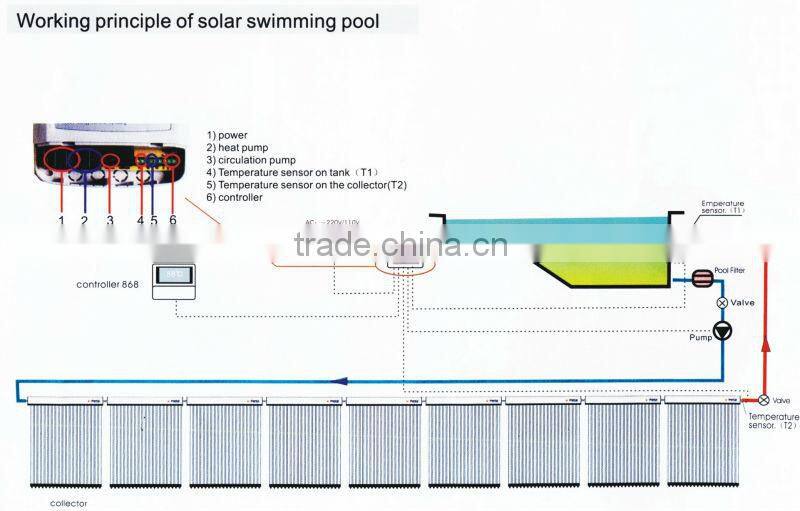

Working Principle of solar water heater  project :

1. The solar collector connect with non-pressurized solar tank

2. The water pass through solar manifold then into vaccum tube, vacuum tube absorb solar energy, heating the water inside of vacuum tube

3. According to density difference, the cold water through down into vacuum tube, and hot water flow up into solar manifold, then storage in heat protection water tank

4. After circulation by temperature circulation pump, all of the cold water will be heated to hot water and storaged in heat protection water tank.

Features of solar water heater  project :

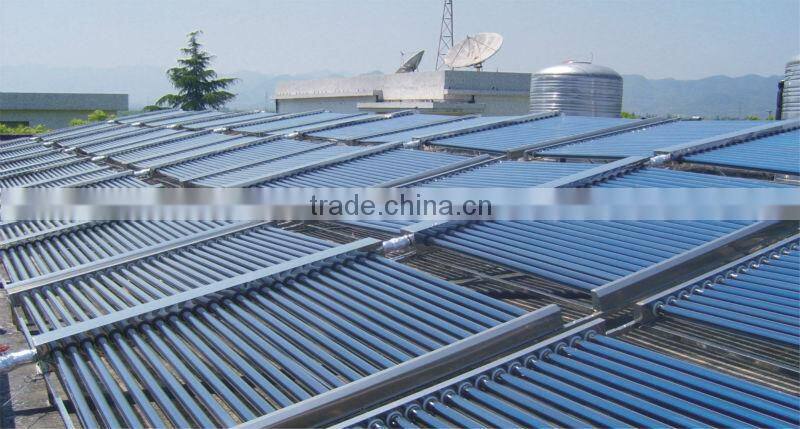

1. The solar collector is more suitable for solar hot water project, because you can free compose many solar collectors for connect with different capacity solar tank, for example, the capacity can do 1000liters, 2000liters, 3000liters,-----100000liters-----200000liters and more , normally use in hotel, swimming pool, and others large project

2. The solar collector is separated with non-pressurized solar tank, so it need temperature circulation pump for promote circulation, when the water temperature is difference between storage tank and solar collector, the pump will strat working, cold water will into vacuum tube for heating, and hot water will back to solar tank for storage.

3. The solar collector and solar tank is non-pressurized , so exhaust vent on solar collector and exhaust pipe on solar tank is most important for protection the solar hot water system

Features of solar water heater  project :

1. We have three design for your choose: round type, quadrilateral type and octagonal type

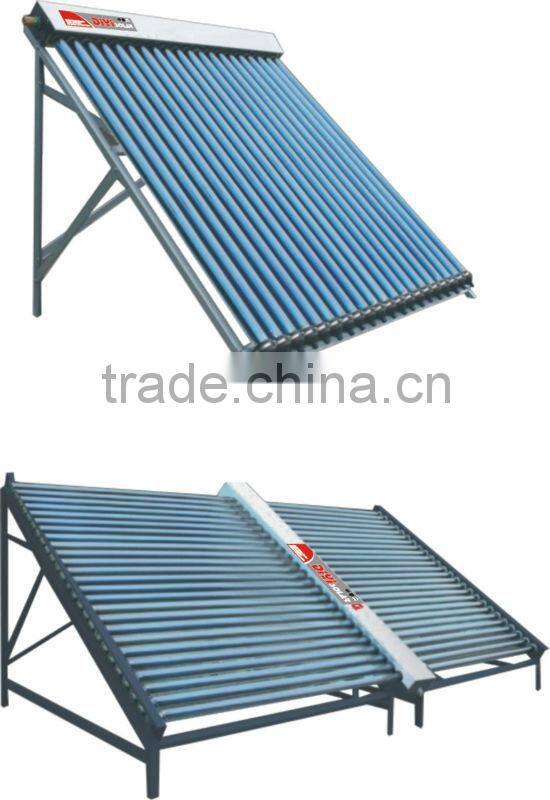

2. Double sides opening for horizontal type solar collector, single side opening for vertical type solar collector

3. The solar manifold can opening from 10tubes to 70tubes for φ47mm/1500mm or φ58mm/1800mm vacuum tube

4. We have many material for your choose: stainless steel, color armor plate, aluminium alloy and galvanized steel

5. The color armor plate have different color for your choose : white, red, silver gray

Material of Solar collector:

a) Solar manifold : Round type solar manifold, horizontal type solar collector

Internal: SUS304-2B

Outer shell: Color steel or SUS304 2B

b) Frame: Galvanized steel with powder coating

c) Insulation layer: polyurethane foam

d) Vacuum tube: high borosilicate glass with AL/N/AL coating

e) Specification of vacuum tube: φ47mm/1500mm, φ58mm/1800mm vacuum tube

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
