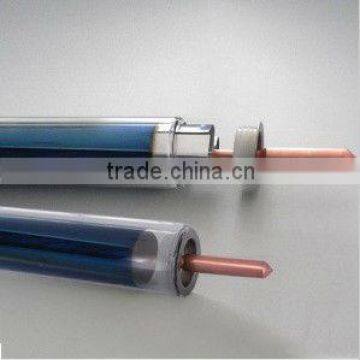

copper heat pipe vacuum tube three high evacuated tube
- 1000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T
You May Like
-
Working station for split solar collector system include circulation pump,intelligent controller,expansion vessel
-
intelligent controller for solar water heater
-
DIYI or OEM brand split pressurized solar water panel with copper coil
-
Eco-friendly rockwool 50mm solar collectors
-
1600 mm full length water heater concentrated solar collectors
-
2015 high quality professional solar thermal collector
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Indirect / Closed Loop (Active) | Heating System | Batch / ICS (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Plastic | Capacity | 300 | |
| Place of Origin | Zhejiang, China | Brand Name | DIYI |
Product Description
vacuum tube specification:
Structure | All-glass double-tube co-axial structure | |
Glass material | High borosilicate 3.3 glass | |
External pipe diameter and thickness | Φ=47±0.7mm=1.6mm Φ=58±0.7mm=1.6mm | |
Internal pipe diameter and thickness | Φ=37±0.7mm=1.6mm Φ=47±0.7mm=1.6mm Φ=58±0.7mm=1.6mm | |
Pipe length | 1500mm 1800mm | |
Absorptive coating property | Structure | Cu/SS-ALN(H)/SS-ALN(L)/ALN |
Sediment method | 3 target magnetron sputtering plating | |
Specific absorption | 0.93~0.96 | |
Emission ratio | 0.04~0.06 | |
Vacuum tightness | 5.0×103 Pa | |
Idle sunning property parameters | 260~300./KW | |
Solar irradiation for obtaining a preset water temperature | H≤4.7MJ/(Φ58) | H=3.7~4.2MJ/ |
H≤3.7MJ/(Φ47) | H=2.9~3.2MJ/ | |
Average heat loss coefficient | 0.4~0.7W/(.) | |
Thermal conductivity of HEAT PIPT | 2X10+4~1.6X10+6 W/(m.) | |
The material of HEAT PIPE | Copper and phase change | |
Resistant Hail | 25mm | |
Life aged | 15 years | |
