58*1800mm heat pipe solar vacuum tubes solar collector
- 1000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
DIYI non pressure solar water heater
-
Imetro low pressure vacuum tube solar heater
-
integrative pressurized solar water heating with copper heat pipe
-
non pressure solar water heater with Inmetro certification
-
split pressurized solar thermal collector panel export to Dutch,Australia,UK,Germany
-
Solar Keymark solar thermal collector panel export to UK,Germany,Italy,Spain,Denmark
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIYI | |
| Model Number | 58mm 1800mm | Type | Pressurized | |
| Application | Solar Thermal | Pipe Material | Copper |
Product Description

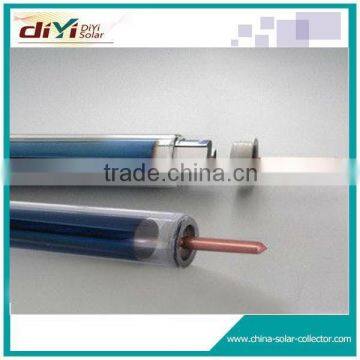

58*1800mm heat pipe solar vacuum tubes solar collector
Structure | All-glass double-tube co-axial structure | |
Glass material | High borosilicate 3.3 glass | |
External pipe diameter and thickness | Φ=47±0.7mm=1.6mm Φ=58±0.7mm=1.6mm | |
Internal pipe diameter and thickness | Φ=37±0.7mm=1.6mm Φ=47±0.7mm=1.6mm Φ=58±0.7mm=1.6mm | |
Pipe length | 1500mm 1800mm | |
Absorptive coating property | Structure | Cu/SS-ALN(H)/SS-ALN(L)/ALN |
Sediment method | 3 target magnetron sputtering plating | |
Specific absorption | 0.93~0.96 | |
Emission ratio | 0.04~0.06 | |
Vacuum tightness | 5.0×103 Pa | |
Idle sunning property parameters | 260~300./KW | |
Solar irradiation for obtaining a preset water temperature | H≤4.7MJ/(Φ58) | H=3.7~4.2MJ/ |
H≤3.7MJ/(Φ47) | H=2.9~3.2MJ/ | |
Average heat loss coefficient | 0.4~0.7W/(.) | |
Thermal conductivity of HEAT PIPT | 2X10+4~1.6X10+6 W/(m.) | |
The material of HEAT PIPE | Copper and phase change | |
Resistant Hail | 25mm | |
Life aged | 15 years | |
