Home > Products > Solar Water Heater Accessories > Working Station for Split Solar Collector System Include Circulation Pump,intelligent Controller,expansion Vessel

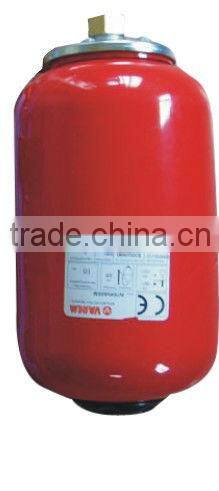

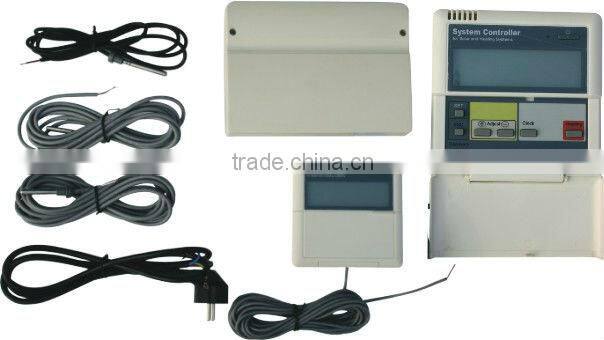

Working Station for Split Solar Collector System Include Circulation Pump,intelligent Controller,expansion Vessel
US$ 100 - 1,000
/ Set
1 Set(Min. Order)
- shanghai
- T/T
You May Like
-
Intelligent Controller for Solar Water Heater
-
DIYI or OEM Brand Split Pressurized Solar Water Panel With Copper Coil
-
Eco-friendly Rockwool 50mm Solar Collectors
-
1600 mm Full Length Water Heater Concentrated Solar Collectors
-
2015 High Quality Professional Solar Thermal Collector
-
Flat Plate Heater Solar Collector
Product Details
| Place of Origin | Zhejiang, China | Application | Solar Working Station | |
| Rated Voltage | Other, 220V |
Product Description
Working station
Specifications
Our products have obtained the national invention patents, and passed the European CE certification.
Main technical data:
1. Dimension: 380×220×140mm
2. Input voltage: 200V~240V AC or 100V~120V AC
3. Power: ≤3W
4. Accuracy of temperature measuring: ±1°C
5. Range of temperature measuring: PT1000 : 0~199°C NTC10K: 0~99°C
6. Input signals:
1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;
2 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C
7. Output signals:
1 x Auxiliary heating output (Max. load current: 12A)
2 x Relay output (Max. load current: 3A)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa

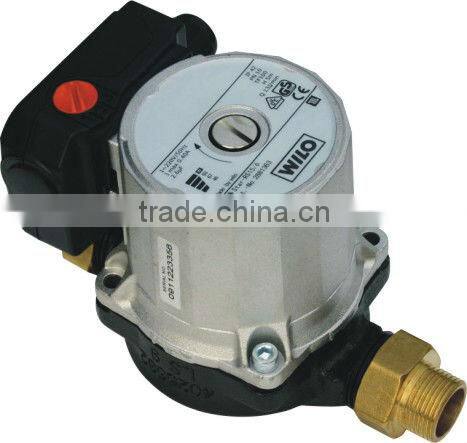

10. WILO pump model: RS15/6
11. Screw coupling: 1/2
12. Pipeline Material: Brass
13. Secondary display screen (For selection)
14. LCD-display
15. Range of environment temperature: -10~50°C
16. Water protection grade: IP40
Main functions:
1. Time display
2. Temperature difference circulation
3. Storage tank overheating protection
4. Emergent stop of system overheating
5. Frost protection of pipeline and collector
6. Three periods of time adjustable on pipeline circulation
7. Three periods of time adjustable on auxiliary heating
8. Holiday function
9. Anti-bacteria function
10. Three speed levels on circulation pump
11. Display flow rate
12. Display system pressure
