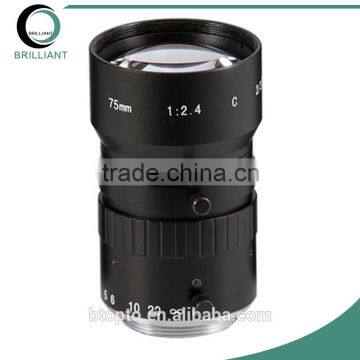

2MP 2/3" Format C-mount Manual Iris 75mm Fixed Focus Lens for Machine Vision
- Shanghai
- Credit Card
You May Like
-
5MP 1/2 inch Format C Mount Manual Iris 4mm Fixed Focus Industrial Lens
-
5MP 43mm Format F-mount Manual Iris 24mm Fixed Focus Industrial Lens
-
5MP 43mm Format F-mount Manual Iris 28mm Fixed Focus Industrial Lens
-
5MP 43mm Format F-mount Manual Iris 24mm Fixed Focal Camera Lens for Machine Vision
-
5MP 43mm Format F-mount Manual Iris 50mm Fixed Focal Camera Lens for Machine Vision
-
10MP 43mm Format F-mount Manual Iris 35mm Fixed Focal Camera Lens for Machine Vision
Product Details
| Place of Origin | Shanghai, China | Brand Name | AZURE | |
| Model Number | AZURE-7524MM | Material | Glass | |
| Usage | Optical | Shape | Cylindrical |
Product Description
SPECIFICATIONS
| Resolution: | 100lp/mm (2MP) | ||||||||
| Format : | 2/3" | ||||||||
| Mount : | C | ||||||||
| Focal Length: | 75mm | ||||||||
| F/No : | F2.4~F22 | ||||||||
| Back Focus : | 17.14mm | ||||||||
| I ris Type : | Manual Iris | ||||||||
| Horizontal Angle : |
| ||||||||
| Distortion : | <0.6% | ||||||||
| Focusing Range: | ~ 1m | ||||||||
| Coating Wavelength: | 400nm~950nm | ||||||||
| Filter Thread : | M30.5x 0.5 | ||||||||
| Dimension : | 34x0.5mm | ||||||||
| Weight : | 140g |
DIMENSIONS
MTF CURVES
1)Brilliant Technology is dedicated to being the leading provider of optical components and integrated optical inspection devices with high standard quality control. This goal will be achieved through our focus on the raw material selection, manufacturing process inspection, sampling,finalization and transportation monitoring.
2) During the manufacturing and sampling procedures, precious optical devices shall be used on the optical parameter detection such as surface irregularity, surface scratch,refractive index, coating and etc.
3) Not only optical components were strictly selected, but also the integrated devices. Every module will be under a series of spec run before releasing itself. Evaluation report comes along with the in-house test for the insurance of each devices’ regular working.
