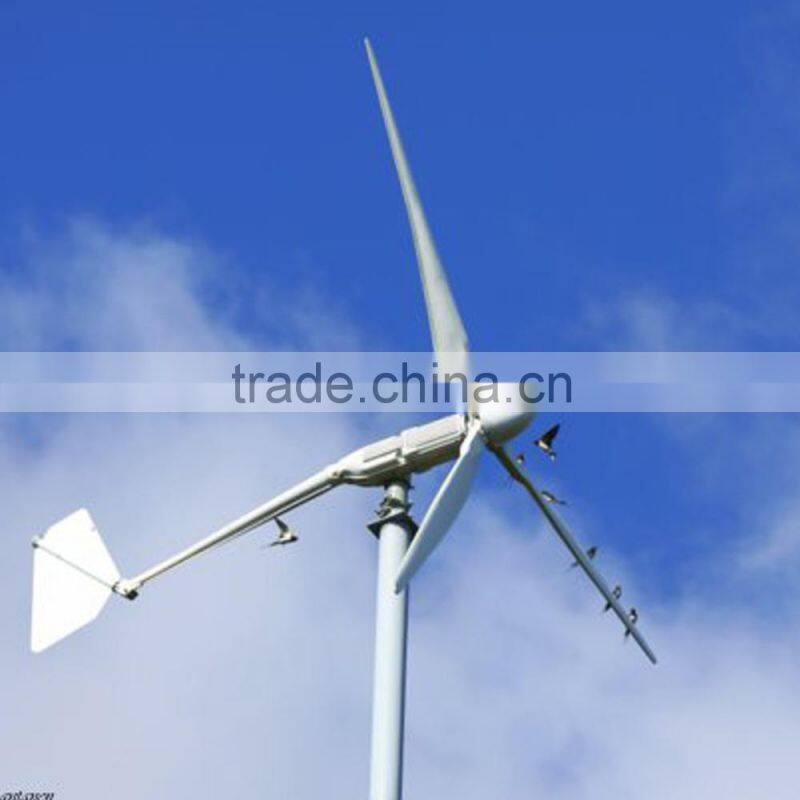

PROMO! 1.5kw Wind Power Generation, Residential Fixed Pitch Small Wind Turbine 1.5kw 24v 48v 240v 360v
- Qingdao
 - T/T Credit Card PayPal

You May Like
-


3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set
 -


PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator
 -


Factory! Low Noise Low Price 30kw Wind Turbine With 12m/14m Blades Rotor, 500v on Grid Wind Power System Kit
 -


Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw
 -


1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System
 -


Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw

Product Details
| Place of Origin | Shandong, China | Brand Name | HLD | |
| Model Number | 1.5kw | Type | Wind Power Generator |
Product Description
HENRYD! 1.5kw wind turbine for home, wind generator 1.5kw wind power generator 24v 48v 240v 380v
- Wind turbine type: Fixed blades pitch, horizontal type, directly drive, C.W rotation wind power generator

on grid system
off grid system
wind solar hybrid on/off grid system (grid power/diesel power as backup power)
Used for the home, farm, signal station,garden, island, rooftop...
3. Wind turbine technical data
Model: FD3.2-1500W
Rotor Diameter: 3.2m
Number of Blades: 3pcs
Material of Blades: FRB
Cut-in wind speed: 2m/s
Working wind speed: 3-25m/s
Survival wind speed: 40m/s
Rated wind speed: 9m/s
Rated rotate speed: 350r/min
Rated output power: 1500w
Max output power: 2000w
Type of tower: Guy wire tower, tilting up tower (optional)
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Yaw auto brake
Working voltage: 12v 24V/DC48v/DC120V/240V/360V or special request
Operating Temperature: -40---+60
Tower height: 6m,8m,9m,12m or special request
Wind turbine main body weight: 90kg
Life span: WTG 20 years;
Warranty: 3years.
__________________________________________
Note:
1. Tower type, tower height can be special requested;
2. working voltage can be special requested;
3.Ce,ccc,iso,IEC approved;
4. We have blades rotor diameter 2.8m, 3.2m for different wind place.

4. 1.5kw wind turbine Output power curve

5. Wind turbine freatures/advantage
| 1.) Blade: Manufacturing according to the airscrew structure principle and techniques. |
| Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life. |
| Select blade type by wind tunnel testing. |
| With high efficiency, low noise. |
2. ) Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal connection, directly driven.  |
| Connection is reliable, durable, smooth operation without vibration. |
| 3.) Generator |
| Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High magnetic flux density, small |
| cubage, good manufacturing process and high performance. |
| Adopt SKF, NSK bearing. |
| Close transmission slip ring, the cable will not enlace. |
| 4.) Speed regulation: yaw. Simple, reliable and safety. |
| 5.) Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog, anti-atmospheric |
| anti-sandstorm corrosion design. |
6.) Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be designed according to your request.  |
| 7.) 300w-2.5kw auto braking; 3kw-30kw auto braking system and manual braking system. |
| 8. ) Wind turbine design principle is simple, safety, reliable, maintenance free. |
| 9.) Provide low wind place, rich wind place solution. Wind turbine OEM service, customized service. |
6. Main market: US, Canada, Australia, New Zealand, European...
7. Testing Machinery:
Generator platform test
Blade balance adjustment instrument
Blade weight center test platform
Turbine turn-to-turn test system
8. Application
Home, farm, signal station, island, garden...

9.Blades,pma
Vacuum mould blades with protection film
C.W blades, low noise level, high efficiency
FRB material, 3 pcs blades per set
Adjust blades rotor balance before delivery

Rare earth material, high efficiency, low start up torque 2.67N.m
Aluminum generator housing and nacelle
11. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)
Tower height can be manufacture according to user's request.
The tower with hot-galvanize.
We provided the tower foundation drawing after confirm the tower type, tower height.

12. Matched controller

Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.
Controller with auto brake function, PWM voltage stablization function.
Matched with off grid single phase/ 3 phase pure sine wave inverter.
On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.
PWM on grid controller spec:
Power of the equipped wind turbine (W)  | 1.5K  |
Operating mode  | Continuous  |
Function  | Commutation, control  |
Operating environment  | Temperature -30~60℃, humidity≤80%  |
PWM unloading voltage (DCV)  | ≥220V  |
brake voltage (DCV)  | 260±5V  |
brake delay time (min)  | 10-20 minutes  |
Low voltage indicator (V)  | ≤130V  |
Self-provided connecting wire of the brake (mm²)  | >2.5mm²  |
Self-provided connecting wire of the PWM dump load(mm²)  | >2.5mm²  |
PWM unloading fuse (A)  | 10A  |
DC output fuse (A)  | 10A  |
PWM off grid controller spec:
Type  | 1.5KW-24Vdc  | 1.5KW-48Vdc  |
Wind turbine rated power  | 2KW  | 2KW  |
Wind turbine max. power  | 4KW  | 4KW  |
Solar panel  | 600Wp  | 600Wp  |
Battery  | 24Vdc  | 48Vdc  |
Function  | Rectifier,charge, control  | |
Display mode  | LCD  | |
Display content  | Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current  | |
PWM constant pressure voltage  | >28Vdc  | >56Vdc  |
3-phase load voltage of the wind turbine  | 29±1Vdc  | 58±1Vdc  |
Recovery charging voltage of the wind turbine  | 27±1Vdc  | 54±1Vdc  |
Solar stop charge voltage  | 29±1Vdc  | 58±1Vdc  |
Solar recovery charging voltage  | <28Vdc  | <56Vdc  |
Low-voltage of the battery  | 20±1Vdc  | 40±1Vdc  |
Self-provided connecting wire of the battery  | >20mm²  | >10mm²  |
PWM fuse  | 100A  | 40A  |
Solar fuse  | 40A  | 20A  |
Charging fuse  | 125A  | 63A  |
Work environment temperature  | -30-60°C  | |
Relative humidity  | <90% No condensation  | |
Noise (1m)  | <40dB  | |
Degree of protection  | IP20(Indoor)  | |
Cooling method  | Forced air cooling  | |
*Communication interface (optional)  | RS485/USB/GPRS/Ethernet  | |
*Temperature compensation (optional)  | -4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C  | |
Size of the controller (mm)  | 480*360*23  | 480*360*230  |
Weight of the controller  | 23 Kg  | 16 Kg  |
Size of the load (mm)  | 490*460*310  | 490*460*310  |
Weight of the load  | 15.5 Kg  | 15.5 Kg  |
14. Matched grid tie inverter 2k, pure sine wave inverter single phase 2kva/3kva
Inverter output voltage, frequency can be manufactured according to different countries request.
Off grid controller with dump load, tilting up tower, BEL storage battery, inverter
The DC Max voltage  |
 600Vdc  |
The DC range  | 30V~540Vdc  |
The rating max DC input current  | 20Adc  |
The rating grid voltage  | 230Vac or 240Vac  |
The grid voltage range  | 180~270Vac (adjustable)  |
Operation phase  | single  |
Rating grid output current  | 13.0Aac/12.5Aac  |
Rating output power  | 3.0KW  |
Grid current THD  | Total THd<4%,  |
The DC injection current  | <20mA  |
Output power factor  | >0.99  |
Grid frequency range  | 47.0~52.0Hz /57.0~62.0Hz(adjustable)  |
Max efficiency  | >96.5%  |
Design lifetime  | >20 years  |
Operation environment temperature  | 25~60  |
On grid controller with dump load +grid tie inverter
1. 48v off grid system wind turbine main body + controller with dump load: 0.32cbm, 90 kgs. 1 plywood case
2. 380v on grid system wind turbine main body + controller with dump load:0.39cbm, 105kgs.
Delivery by sea. FOB/C&F, CIF
Delivery by air or express.
Packing details:
| Item# | Product description | Spec | Unit | Q'ty | Remark |
| 1 | main body | FD3.2-1.5kw 56v | set | 1 | |
| hex nut | M20*1.5 | pcs | 1 | 8.8 grade | |
| flat washer | φ20 | pcs | 1 | ||
| hexagon bolt | M10*25 | pcs | 4 | ||
| hexagon bolt | M10*80 | pcs | 4 | ||
| hex nut | M10 | pcs | 4 | ||
| flat washer | φ10 | pcs | 8 | ||
| 2 | Blades | FD3.2 L=1.56m | pcs | 6 | |
| 3 | hub | FD3.2 | set | 2 | |
| hexagon bolt | M12*80 | pcs | 18 | 8.8 grade | |
| hex nut | M12 | pcs | 18 | ||
| flat washer | φ12 | pcs | 18 | ||
| elastic pin | φ5*25 | pcs | 6 | ||
| hexagon bolt | M6*20 | pcs | 6 | 8.8 grade | |
| flat washer | φ6 | pcs | 6 | ||
| 4 | nose cone | FD3.2 | pcs | 1 | |
| 5 | tail vane | 1.5kw | set | 1 | |
| 6 | tail rod | 1.5kw | pcs | 1 | |
| hexagon bolt | M10*70 | pcs | 2 | 8.8 grade | |
| self lock nut | M10 | pcs | 2 | ||
| flat washer | φ10 | pcs | 2 |

Provide professional technical support;
Provide system design;
Wind turbine type, model, capacity selection professional support;
Tower design, foundation design support;
Completely system provider and designer;
Support paypal payment, TT payment;
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures
in China. We keep improving and develop in the small wind turbine field. We are not the leading small wind
turbine exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.

1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Contact Us
                - Qingdao HenryD Wind Power Equipment Co., Ltd.
 - Contact nameAron wang Chat Now
 - Phone86-532-82903820
 - AddressNo.803 Jin Shui Road, Qingdao, Shandong

Product Categories
| Battery, inverter, controller,tower | Fixed pitch wind turbine | New Products |
New Products
-


HLD! Horizontal Axis Wind Generators 3KW With Wind Turbine Price for 5kw Wind Solar Hybrid System
 -


2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators
 -


AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit
 -


HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice
 -


HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT
 -


HOT! 2500w Wind Turbine Wind Generators for Home, Horizontal Axis Home Wind Turbines With On/off Grid System

-


X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw
 -


CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter
 -


1kw 2kw 3kw 5kw 10kw 20kw 30kw Wind Power Generator Blades, Small Wind Turbine Blades,wind Generator Aluminum Blades
 -


SALES! 2KW Wind Energy Generator/wind Turbine Generator 380v on Grid System, HAWT
 -


Horizontal Axis Wind Power Generator 6kw 120v 240v 380v, Aerogenerator 6kw Wind Turbine
 -


ROOFTOP! 1kw Small Wind Turbine, 1kw Wind Generator Permanent Magnet Generator 3 Phase AC , 2.8m Blades Rotor, 9m/s

-


15kw Wind Power System, Residential/home Wind Turbine 15kw Wind Power Generation
 -


Wind Generator Manufacture: 2000w/2kw Wind Power Generator With Windmill Generator for Home Wind Power System
 -


3000w Wind Turbine Price, Wind Power System 3kw 24v 48v 96v 120v 240v 380v, Small Wind Turbine 3kw
 -


HOT! 1kw 2kw 3kw 5kw 10kw 20kw Wind Turbine, off Grid/on Grid Wind Generator,24v-240v Wind Generator Price
 -


Trade Assurance! 10kw Wind Generators Wind Turbine Generator Price, 10kw Wind Turbine Manufacture, Wind Electric Generator Pma
 -


POP! 2KW Wind Turbine With Permanent Magnet Generator for Home Type Windmill Generator Grid Tie/off Grid System

-


High Return! 1500w Home Wind Generator 1.5kw Horizontal Rooftop Wind Energy System, Permanent Magnet Free Energy Generator
 -


Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm
 -


MANUFACTURE! 5kw Wind Turbine Price Small Wind Generators for Home
 -


HYBRID! 5kw Wind Turbine + 2kw/3kw/5kw Solar Wind Power Hybrid System, Home Wind Solar Hybrid Power System 7kw 8kw 10kw Quality Choice
 -


2000w Small Wind Turbine Power Generator Permanent Magnet Generator 2kw Wind Generator Low Rpm
 -


Reliable Free Energy Power Supply System, Solar and Wind Power System for Home 5kw Wind Generator

Popular Searches
- wind generator
 - permanent magnet generator
 - wind turbine generator
 - vertical wind turbine generator
 - wind power generator
 - water turbine generator
 - horizontal wind generator
 - turbine
 - alternative energy
 - hydro turbine generator
 - windmill generator
 - turbine power generator
 - turbine generator set
 - permanent magnet alternator
 - wind turbine
 - wind power
 - turbine generator
 - low rpm generator alternator
 - energy generator
 - free energy permanent magnet generator
 - free energy magnet generator
 - magnet generator
 - hydro turbine
 - neodymium magnet generator
 - horizontal engine
 - steam turbine
 - hydro power
 - pmg
 - alternative energy generator
 - wind mill

Recommended Products
- Hydraulic Disc Brake
 - Wind Power Using Duplex Stainless Steel PSA Fall Protection Anchor
 - 20KW MOBILE DC Charging Pile User Manual for Car Charging Station
 - 40KW MOBILE DC Charging Pile User Manual for Car Charging Station
 - Hydraulic Lockpin for Wind Turbine
 - 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
 - 120KW DC Fast EV Charger With Two Connectors for Car Charging Station
 - Fast Electric Car Charging Station ev Charger Pile DC 40kw 5m Cable 1 MOQ to Deliver in Stock
 - Full Automatic Solar Panel Production Line Equipment
 - 500MW Solar Panel Production Line Equipment
 - 450MW Solar Panel Production Assembly Line Equipment
 - Full Automatic Solar Module Production Line Equipment

Find Similar Products By Category
- Industrial Equipment & Components > Power & Generating Sets > Wind Generator

- Please Enter your Email Address
 - Please enter the content for your inquiry.

We will find the most reliable suppliers for you according to your description.
Send Now-

			                    Aron wang
                Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
                    - Contact supplier for lowest price
 - Customized Request
 - Request Sample
 - Request Free Catalogs

Your message has exceeded the limit.
-
                Purchase Quantity
 -
                *Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
 -
                *Email
Please enter Your valid email address.
 -
                Mobile












3kw/3000w Wind Power Equipment, Wind Electric Generator 3000w Wind Energy System US$900/set

PROMO! CE and IEC Confirmed Commercial FD6-5KW Wind Generator for Home With Eolic Generator

Factory! Low Noise Low Price 30kw Wind Turbine With 12m/14m Blades Rotor, 500v on Grid Wind Power System Kit

Wind Energy Generators 30kw Wind Power Generator on Grid System, Windmill Generator FD12-30kw

1kw Wind Power Generator Hybrid 1kw Solar Power System, 2kw Wind Solar Hybrid System/solar Wind System

Wind Turbine 2kw Wind Power Generator, Aero-generator 2000w Max Output 3kw














HLD! Horizontal Axis Wind Generators 3KW With Wind Turbine Price for 5kw Wind Solar Hybrid System

2500w! 2500w Wind Turbine Generator Type Wind Power Generator, Fixed Pitch/horizontal Axis/yawing Wind Generators

AEROGENERADOR 10kw Wind Power Generator, Wind Electric Generator 380v on Grid System Kit, Wind Generator Kit

HOT! 4kw 5kw 6kw Wind Solar Hybrid System With 3kw Wind Generator for Home Use 24v 48v Quality Choice

HOT SALES! 5000w Wind Turbine Generator/wind Generator Price,windmill Generator 5000w Wind Power HAWT

X-max Promo! 10kw Wind Generator Horizontal Axis Wind Turbine Generator 10kw

CHINA Farm Wind Generator 50kw Wind Turbine With Permanent Magnet Alternator 60rpm 23m Rotor Diameter

1kw 2kw 3kw 5kw 10kw 20kw 30kw Wind Power Generator Blades, Small Wind Turbine Blades,wind Generator Aluminum Blades

SALES! 2KW Wind Energy Generator/wind Turbine Generator 380v on Grid System, HAWT

Horizontal Axis Wind Power Generator 6kw 120v 240v 380v, Aerogenerator 6kw Wind Turbine

15kw Wind Power System, Residential/home Wind Turbine 15kw Wind Power Generation

Wind Generator Manufacture: 2000w/2kw Wind Power Generator With Windmill Generator for Home Wind Power System

3000w Wind Turbine Price, Wind Power System 3kw 24v 48v 96v 120v 240v 380v, Small Wind Turbine 3kw

HOT! 1kw 2kw 3kw 5kw 10kw 20kw Wind Turbine, off Grid/on Grid Wind Generator,24v-240v Wind Generator Price

Trade Assurance! 10kw Wind Generators Wind Turbine Generator Price, 10kw Wind Turbine Manufacture, Wind Electric Generator Pma

POP! 2KW Wind Turbine With Permanent Magnet Generator for Home Type Windmill Generator Grid Tie/off Grid System

High Return! 1500w Home Wind Generator 1.5kw Horizontal Rooftop Wind Energy System, Permanent Magnet Free Energy Generator

Factory Price! FD3.2-1.5kw Small Wind Turbine for Sales, 1500w Mini Wind Power Generator,Horizontal Type Wind Generator 1.5kw pm

MANUFACTURE! 5kw Wind Turbine Price Small Wind Generators for Home

HYBRID! 5kw Wind Turbine + 2kw/3kw/5kw Solar Wind Power Hybrid System, Home Wind Solar Hybrid Power System 7kw 8kw 10kw Quality Choice

2000w Small Wind Turbine Power Generator Permanent Magnet Generator 2kw Wind Generator Low Rpm

Reliable Free Energy Power Supply System, Solar and Wind Power System for Home 5kw Wind Generator
