Home > Products > Machine parts and accessories > Hypertherm 105 Machine Torch Plasma Cutter Nozzle and Electrode
Hypertherm 105 Machine Torch Plasma Cutter Nozzle and Electrode
US$ 10 - 100
/ Piece
100 Pieces(Min. Order)
- dalian
- T/T Credit Card
You May Like
-

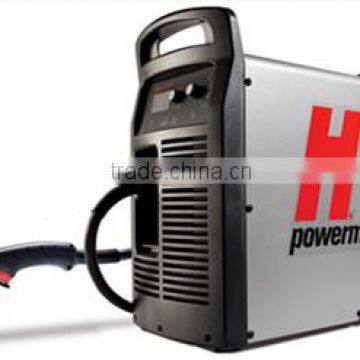

Hypertherm Plasma Cutters, Powermax 85
-
USA Hypertherm Plasma Supplier Hypertherm Powermax 65,hypertherm Powermax
-
USA Hypertherm Plasma Source, Powermax45 Plasma System, Hypertherm Plasma Cutting Machine
-
Plasma HPR130XD Consumables
-
Hypertherm 428244 Kit With FineCut Nozzle and Electrode Pack for 420120 or 420117 Powermax30
-
Electrode Plasma Hyperterm Consumables Powermax85
Product Details
| Place of Origin | American Samoa | Brand Name | Hypertherm | |
| Type | Casting Parts | Material | Stainless steel | |
| Plating | Other | Certification | ASTM |
Product Description
Hypertherm 105 machine torch plasma cutter nozzle and electrode
Product Description
| Capacity | Thickness | Cut speed |
|---|---|---|
Cutting | ||
| Recommended | 32 mm (1-1/4”) | 500 mm/min (20 ipm) |
| 38 mm (1-1/2”) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 50 mm (2”) | 125 mm/min (5 ipm) |
| Pierce * | 22 mm (7/8”) | |
* Pierce rating for handheld use or with automatic torch height control
| Capacity | Metal removal rate | Groove profile |
|---|---|---|
Gouging | ||
| Typical gouge | 9,8 kg/hr (21.7 lbs/hr) | 6,4 mm D x 7,4 mm W (0.25” D x 0.29” W) |
Production cut chart
| Material | Thickness | Current | Production cut speed * | ||
|---|---|---|---|---|---|
| inches | mm | amps | ipm | mm/min | |
| Mild steel | 1/4 | 6 | 105 | 192 | 5090 |
| 3/8 | 8 | 105 | 116 | 3870 | |
| 1/2 | 12 | 105 | 76 | 2060 | |
| 3/4 | 20 | 105 | 40 | 940 | |
| Stainless steel | 1/4 | 6 | 105 | 224 | 6000 |
| 3/8 | 8 | 105 | 112 | 4210 | |
| 1/2 | 12 | 105 | 68 | 1860 | |
| 3/4 | 20 | 105 | 34 | 810 | |
| Aluminum | 1/4 | 6 | 105 | 265 | 7090 |
| 1/2 | 12 | 105 | 91 | 2450 | |
| 3/4 | 20 | 105 | 50 | 1190 | |
Easy-to-use for cutting and gouging
- No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
- SpringStart™ technology ensures consistent starting and a more reliable torch
- Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Built to handle tough jobs
- Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
- Duramax torches are designed for high-impact and heat resistance
Certifications
