Product Details
| Place of Origin | Jiangsu, China | Brand Name | BAOMA | |
| Model Number | EDMN2180cnc | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

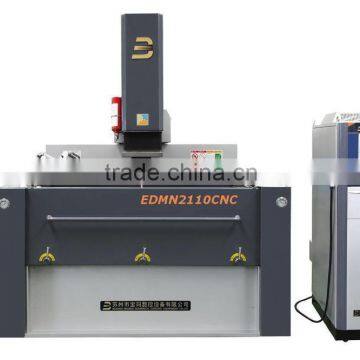

Professional supplier Spark Erosion Machine/sinker electric discharge machine/fishing sinker machine/EDMN2180CNC
CNC Sinker EDM, die sinking machine
AC Servo : Japan YASKAWA or Panasonic
Linear guideway: Taiwan HIWIN
Denmark Grundfos Pump
Current: 90A
Smooth: Ra<=0.4um
Precision: <=0.005mm
EDM sinker machine EDM2180CNC /High quality/High precision/Best price
» Specifications / Parameters
| Parameters | UNIT | EDMN2180CNC | |
|---|---|---|---|
| Working Tank (LxWxH) | mm | 3200 x 1650 x 740 | |
| Max. Oil Level | mm | 550 | |
| Table Size (LxW) | mm | 2500 x 1200 | |
| Travel Size | X-One Spindle | mm | 2100 |
| X-Twin Spindle | mm | 1400 | |
| Y | mm | 800 | |
| Spindle Travel (Z) | mm | 600 | |
| Distance between Spindle Nose to Work Table | Min. | mm | 600 |
| Max. | mm | 1200 | |
| Max. Table Load (Workpiece weight) | mm | 7000 | |
| Max. Spindle Hold (Electrode weight) | kg | 300 | |
| Oil Tank | L | 2500*2 | |
| Oil Tank Dimension (LxWxH) | mm | 3840 x 2600 x 700 | |
| Control Method | AC / DC (Japan SANYO) | ||
| Rated Current | A | 150 / 200 | |
| Machine Dimension (LxWxH) | mm | 3800 x 4050 x 4050 | |
| Machine Weight | kg | One Spindle:15000 Twin Spindle:18000 | |
» Current Parameters
| Max. Working Current | Best Speed / Efficiency | Best Electrode Loss | Best Surface Finishing | Input Power |
| 60A | 450 mm³/ min. | ≤0.3% | 0.2/AC | 0.3/DC | 7 KVA |
| 100A | 750 mm³/ min. | ≤0.3% | 0.2/AC | 0.3/DC | 10 KVA |
| 150A | 1000 mm³/ min. | ≤0.3% | 0.2/AC | 0.3/DC | 15 KVA |
» Accuarcy | Precision (Standard:GB/T 5291.1—2001)
| Items | Resualt | |
|---|---|---|
| Flatness of the workbench | 0.03mm / 1000 | |
| X Axis Movement Straightness | in Y-X plane | 0.015/ 500 |
| in Z-X plane | 0.015 / 500 | |
| Y Axis Movement Straightness | in X-Y plane | 0.015 / 500 |
| in Z-Y plane | 0.015 / 500 | |
| Z- Axis Movement Straightness (Spindle Perpendicularity ) | move on X axis | 0.02 / 200 |
| move on Y axis | 0.02 / 200 | |
| Parallelism of work table | move on X axis | 0.015 / 300 |
| move on Y axis | 0.015 / 300 | |
| X-Y Axis Squareness | 0.015 / 500 | |
» Configuration | Setup
| Resine Sand Casting | Machine Body : HT250 |
|---|---|
| Work Table: HT300 | |
| X/Y Axis: | JANPAN SANYO DC/AC Servo |
| TAIWAN PMI Linear Guideway | |
| TAIWAN PMI Ball Screw | |
| Z Axis: | JANPAN SANYO DC/AC Servo |
| JAPAN THK Linear guideway & Taiwan PMI Ball screw | |
| JAPAN NSK Bearing | |
| Universal | Italy GRUNDFOS or Taiwan WALRUS Oil Pump |
| Taiwan Automatic Fire Extinguisher | |
| Taiwan Halogen work lamp | |
| Taiwan Skeet chuck | |
Main Application
EDM sinker machine is used for cavity forming. It utilizes conductive material (copper, graphite, steel) as electrode to process workpiece (conductive material) by spark erosion. Main use: processing precious die, cavity mold and so on. It is widely used in metal processing and mold making workshop.
Our company's EDM series machines are featured in strong functions, convenient and reliable operation, of fairly good rigidity, running placidly, of good controllability, suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing. EDM process has become the important part in the field of mechanical manufacture. They are widely used in the fields of moulds, electronic instruments, precision mechanical process, automobile parts, military, etc.
ZNC EDM SINKER
- Adopt Japan SANYO FC servo motor.
- Steady safety device, optical sensors, auto answer, fire extinguisher and power cut off.
- Good machine structure , high rigidity ,high precision , adopt V slide design.
- Adopt HT300 ageing treatment casting ,keep precision long time.
- Adopt high quality imported oil pump.
- Three-axis linear scale;
- Can choose red oil, pumping oil slagging mode, but also choose not to dip the oil processing;
- For copper, graphite, steel, on the cavity, and special shape holes machining
- Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean
- Moistureproof, Antirust, rust, gold plated K PCB board design
Compare of Old and New Controller
| Controller Type | OLD-ZNC EDM2000 | New - BMS3000 |
| Control Panel | ||
| System UI | ||
| PCB Boards | 11 Pcs | 7 Pcs |
| Rate Current & Power | 60A / 5KVA | 60A / 6KVA |
| Max. Working Current | 45A | 50A |
| Best Finishing(without Orbit Head) | Ra <=0.8um | Ra <=0.4um |
| Best Finishing(with Orbit Head) | Ra <=0.4um | Ra <=0.2um |
| Max. Machining Speed | 350 mm³/min | 400 mm³/min |
| Carbon deposits Sensitivity Adjustment | Manual | Automatic |
| Parameters Save Function | Only Save one Group, new parameters will cover old ones | Support Save 100 groupsParameters |
| Program Function | Unlimited Segment Find Machining Function (1)Manual programming According to Experience (2)AUTO Z programming: Set All Parameters in advance, then start | 10 Segment Find Machining Function (1)Manual programming According to Experience (2)AUTO Z programming: Set All Parameters in advance, then start (3)Intelligent programming: set electrode shape, material,machining area,depth and finishing, then start automatically from Rough machining to find machining |
| Discharge auto adjustment function | Only Manual | 1)Automatically adjust when discharging is not steady 2) Can manually adjust during discharging |
| Automatic anti-coking detection | Only Manual | Automatic |
| Upward Discharging Function | NONE | YES |
| Mirror processing performance | NONE | YES |
| Touch edge Auto-zero function | Must manual set 0 | CNC Control, when electrode touch work piece, automatic set Z=0 in relative coordinate system |
| HUNTING(Touch Edge with discharging) | Manually | Automatic start with a minimum current discharge function, not slagging, can eliminate the bottom burr. |
| Screen saver function | NONE | Auto OFF Screen during Discharge, press any key to recover |
| X/Y/Z back to Origin | NONE | Each time start machine must Back to Origin, at least Z axis need back to Origin |
| Coordinate system | Absolute /Incremental | Absolute / Relative |
| Min. Display Accuracy | 0.005(0.001)mm | 0.005(0.001)mm |
| Max. Display Accuracy | 999.995(999.999)mm | 998.995(998.999)mm |
| Min. Loss | <= 0.3% | <= 0.3% |
| Z-axis transnational mode | 1.Mechanical Orbital Head 2. NC Orbital Head | 1.Mechanical Orbital Head 2. NC Orbital Head |
| Main Board | Taiwan IPC | Taiwan IPC |
| Monitor | 15" LCD | 15" LCD |
| System | Modular Control Software | Modular Control Software |
Standard Setup(On Machine Body)
| ID | ITEM | Unit | Quantity | ||
|---|---|---|---|---|---|
| 01 | EDM Sinker Machine | Set | 1 | ||
| 02 | LCD Monitor | Set | 1 | ||
| 03 | Oil Tank and Pump | Group | 1 | ||
| 04 | Z Axis DC Servo Motor | Piece | 1 | ||
| 05 | Z Axis 220VAC reduce motor | Piece | 1 | ||
| 06 | Manual Lubricator | Piece | 1 | ||
| 07 | T Shape screw of Z axos linear guideway | Set | 1 | ||
| 08 | Screw and Guideway of X/Y aixs | Set | 2 | ||
| 08 | Woking lamp | Piece | 1 | ||
| 10 | Dial indicator | PIECE | 1 |
Accessories in Toolbox
| ID | Name | Unit | Quantity | ||
|---|---|---|---|---|---|
| 01 | Tool box | Piece | 1 | ||
| 02 | Chuck handle | Piece | 1 | ||
| 03 | Chuck | Piece | 1 | ||
| 04 | Plate pinch | Piece | 2 | ||
| 05 | Trapezoid seat | Piece | 2 | ||
| 06 | Foot Pad | Piece | 5 | ||
| 07 | Screw of Foot Pad | Piece | 5 | ||
| 08 | Magnetic base of flushing nozzle | Piece | 2 | ||
| 08 | T groove nut | Piece | 2 | ||
| 10 | Double end bolt | Piece | 2 | ||
| 11 | Hexagon socket wrench | Set | 1 | ||
| 12 | Automatic fire distinguisher | Piece | 1 |
