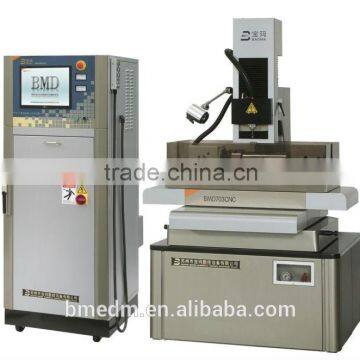

BMD703-500CNC Small Hole Drilling EDM
- Any port of China
- T/T
You May Like
-
BMD703-400CNC Small Hole Drilling EDM
-
BMD703-500 Small Hole Drilling EDM
-
BMD703-400 Small Hole Drilling EDM
-
Highly active and accuracy wire EDM small drilling machine BMD703-400
-
Highly active and accuracy wire edm drilling machine BMD703-400
-
Highly active and accuracy wire EDM hole drilling machine BMD703-400
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | BAOMA | |
| Model Number | BMD703-500CNC | Voltage | 3N-380V/50HZ | |
| Power(W) | 3.5KVA | Dimension(L*W*H) | 1379*1429*1886mm | |
| Weight | 900kg | Certification | ISO9001, ISO14001,CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
BAOMA edm drilling machine is famous for its fast drilling speed, stable machine body in Chinese marketProduct Description
Main Function
A. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.
Item | BMD703-500CNC |
Worktable size(L×W)mm | 590×410 |
Table travel(X×Y)mm | 500×400 |
Z axis travel mm | 300+(320) |
Max. drilling depth mm | 0-300 |
Max. drilling speed mm2/min | 60 |
Max re-track speed of spindle mm/min | 320 |
Max. working current A | 30 |
Electrode diameter | 0.2-3.0 |
Load of table kg | 300 |
Working solution | Water/Saponification |
Working reservoir capacity L | 30 |
Power supply | 380V AC/50 Hz or 415V AC/50 Hz |
Max. Power consumption KVA | 3.5 |
Machine dimension mm | 1236×1025mm×1934 |
Package dimension mm | 1400×1450×2050 |
Machine weight kg | 900 |
Controller type | Three axis |
Digital Display | X,Y,Z axis |
Function of setting depth | yes |
Function of group drilling | yes |
