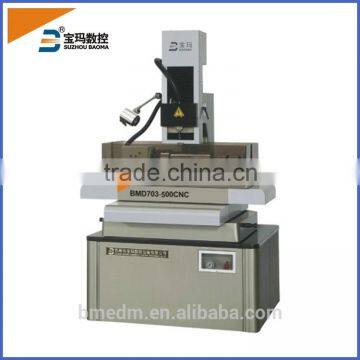

2014 HOT SALES EDM cnc drill machine price best BMD703-500 Quality Choice

FOB Price

US$ 3,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Drilling Speed	60 mm2/min	Place of Origin	Jiangsu, China
Brand Name	Baoma	Model Number	BMD703-500
Voltage	Customized	Power(W)	3.5 KVA
Dimension(LWH)	1379 x 1429 x 1886 mm	Weight	900Kg
Certification	CE, ISO9001 ISO14001	After-sales Service Provided	Engineers available to service machinery overseas

cnc drill machine price diameters 0.2mm ~3mm
Patented product able to drill various meteals
Super Drilling speed 30-60mm/min

2014 HOT SALES EDM cnc drill machine price best BMD703-500 CNC Small Hole Drilling Machine Able to drill holes range from diameter 0.2-3.0mm with max depth-diameter ration 300:1 Drilling speed 30-60 mm/min Able to drill various conductive metals , such as stainless steel , chilly steel , solid carbide , copper, aluminum etc Able to drill directly into bevel or curve surface With electrode auto checking function , improve machining hole precision With lubrication system , and hand control equipment With memory function NC axis with opposite clearance error compensation function With hand zero clearing function for NC axis X,Y,Z axis adopt ball screw ,linear guideway X,Y,Z axis adopt servo motor ,control precision as 0.001mm Hole position and parameters editor function Optional C axis (rotate axis), four axis CNC
Specification	BMD703-500	Universal Parameter

Work table Size	590x 410 mm	Drilling Depth	0 - 300 mm

Work Table Travel	500 x 400 mm	Z axis Travel	300+(320) mm

Load of Table	300 Kg	Max. Drilling Speed	60 mm2/min

Electrode Diameter	0.2-3.0 mm	Max. Working Current	30 A

Water Tank Capacity	30 L	Max. Power comsumption	3.5 KVA

Machine Weight	900Kg	Voltage	Customized

Machine Dimensions	1379 x 1429 x 1886 mm	Working Solution	Water/Saponification

Packing Dimensions	actual measurement	Function of setting depth	Yes

Control Type	ZNC: Z axis NC Control	Z axis Travel Control	Electric Motor

Packing Size: 1450x1340x2050mm/Unit; G.W/N.W:800/700 Kg
