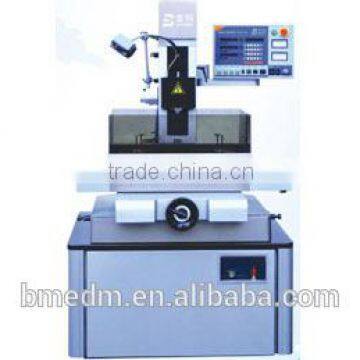

Small Hole Drilling EDM

FOB Price

US$ 1.333 - 8,697,597 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Drilling Speed	60 mm2/min	Place of Origin	Jiangsu, China
Brand Name	BAOMA	Model Number	BMD703-500
Voltage	380V	Power(W)	3.5 KVA
Dimension(LWH)	1379 x 11429 x 1886	Weight	900
Certification	CE, ISO	After-sales Service Provided	Engineers available to service machinery overseas

Hole Drilling EDM ,can drilling Tungsten Carbide,
Brass/Copper Tube electrode, Dia. 0.2-3.0mm
Depth: 0-300 mm
Speed: 60 mm2

Able to drill holes range from diameter 0.2-3.0mm with max depth-diameter ration 300:1
Drilling speed 30-60 mm/min
Able to drill various conductive metals , such as stainless steel , chilly steel , solid carbide , copper, aluminum etc
Able to drill directly into bevel or curve surface
With electrode auto checking function , improve machining hole precision
With lubrication system , and hand control equipment
With memory function
NC axis with opposite clearance error compensation function
With hand zero clearing function for NC axis
X,Y,Z axis adopt ball screw ,linear guideway
X,Y,Z axis adopt servo motor ,control precision as 0.001mm
Hole position and parameters editor function
Optional C axis (rotate axis), four axis CNC
