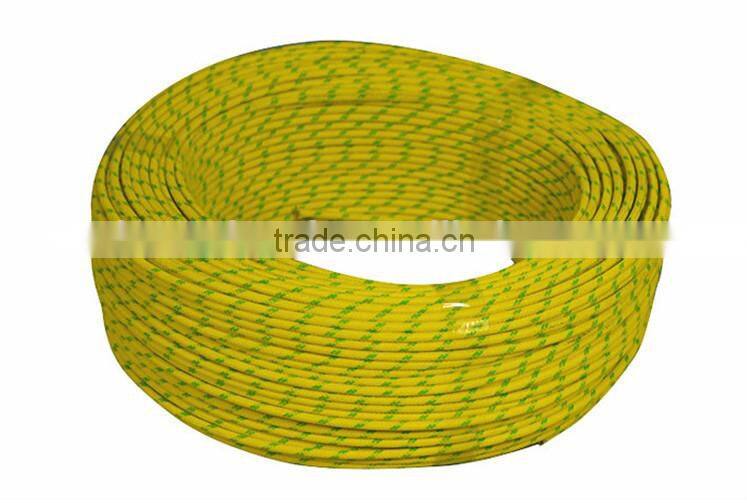

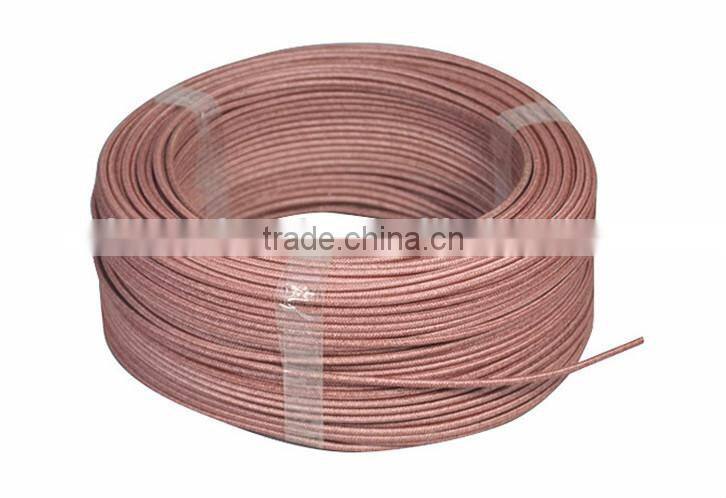

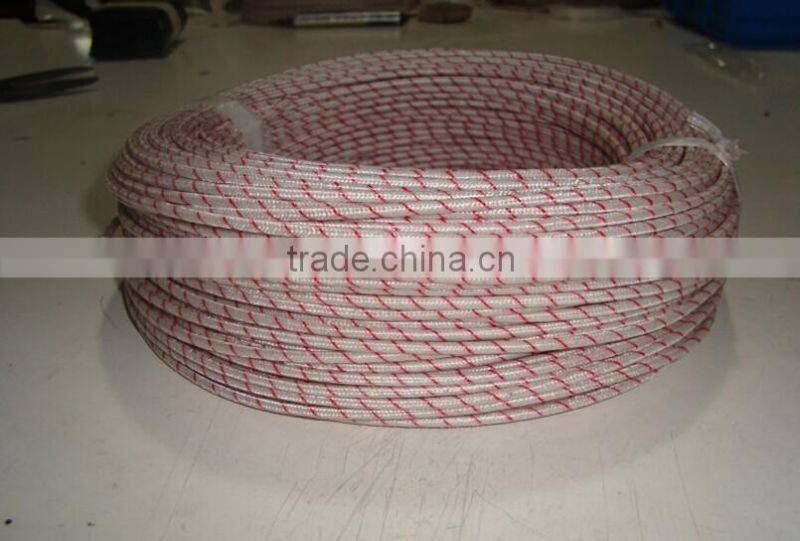

Fiberglass Silicon Rubber Insulated High Temperature Silicon Wire
- Ningbo or Shanghai
- T/T D/P D/A Credit Card
You May Like
-
High Flexible Electric Fiberglass Silicone Rubber Wire
-
Fiberglass Braid Silicone Rubber Insulated Wire
-
Fiberglass Braid Silicone Rubber Insulation Wire
-
Fiberglass Braid Heat Resisting Silicone Rubber Insulated Wire
-
Silicone Rubber Fiberglass Braided Electric Heat Resistant Wire
-
Electric Flexible Industrial Heating Pad
Product Details
| Place of Origin | China | Brand Name | Beno |
Product Description
Specifications
1.Environment friendly
2.High quality
3.Fast delivery
4.Cost effective
Detailed Information
Conductor | Insulation | |||||
AWG | Nominal Area (mm2 ) | Conductor Structure (No./mm) | Nominal Thickness (mm) | Braid Thickness(mm) | Nominal Diamete r(mm) | Max. Diameter (mm) |
16 | 1.31 | 7/0.16 | 0.39 | 0.20 | 2.68 | 2.85 |
18 | 0.823 | 7/0.20 | 0.39 | 0.20 | 2.38 | 2.55 |
20 | 0.519 | 7/0.26 | 0.39 | 0.20 | 2.15 | 2.3 |
22 | 0.324 | 7/0.32 | 0.39 | 0.20 | 1.96 | 2.1 |
24 | 0.205 | 7/0.40 | 0.39 | 0.20 | 1.78 | 1.95 |
26 | 0.128 | 7/0.50 | 0.39 | 0.20 | 1.66 | 1.8 |
Application:
Wiring of Electrical Household Appliance,Lamps,Electronic Equipment and High Temperature Environmet,etc...
Technology data:
Insulation: Silicone rubber
Conductor: Tinned, Silver plated or Nickel copper
Retad Temperature: 200°C
Voltage: 300V
Color:White,Blue,Red,Black,Green etc.
Structure:
Products photos:
We can send the sample to you for free. you can test our qanlity!!
