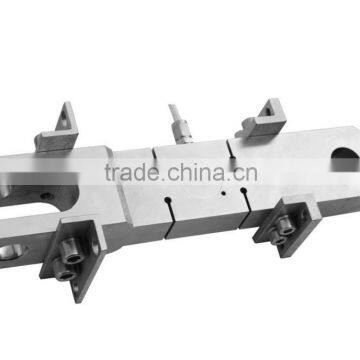

DLC313 crane scale load cell

Model: DLC313 Category: Tension load cell Range: 10t Dimension: 3768078mm Material: Alloy steel,stainless steel Application: crane scale,tension test Characteristic: crane scale load cell,tension test load cell
REF PIC
Specification
comprehensive error:	0.03%FS	output resistance:	352±3Ω
Rated output:	2±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.03%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.03%FS	compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	use temperature:	-20~+65ºC
Creep:	0.02%FS/10MIN	temp effect on zero:	0.03%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	380±3Ω	defend grade:	IP68
