DLC402 vehicle scale , railroad scale load cell
- ShenZhen GuangZhou ChangSha
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | DETAIL | |
| Model Number | DLC402 |
Product Description
DLC402 vehicle scale , railroad scale load cell
Model: DLC402 Category: Compression Load Cell Range: 10t,20t,25t,30t,40t,50t Dimension: 118.5*87mm Material: Alloy steel,stainless steel Application: vehicle scale, railroad scale Characteristic: vehicle scale load cell, railroad scale load cell | |||

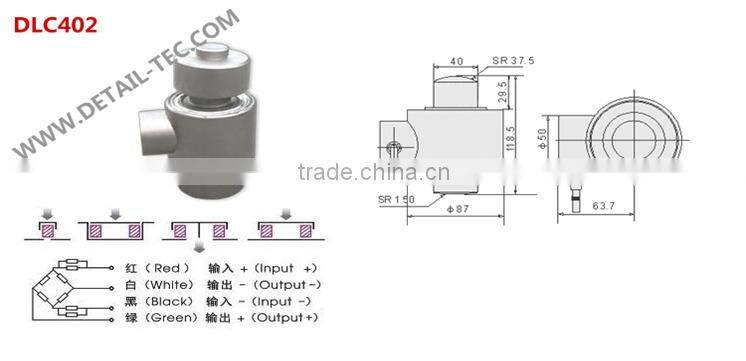

REF PIC | |||
Specification | |||
comprehensive error: | 0.02%FS | output resistance: | 700±10Ω |
Rated output: | 1.5±0.002mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.02%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.02%FS | compensated temp: | -10~+40ºC |
Repeatability: | 0.01%FS | use temperature: | -40~+80ºC |
Creep: | 0.02%FS/10MIN | temp effect on zero: | 0.017%FS/10ºC |
Zero balance: | ±1%FS | Temp effect on span: | 0.014%FS/10ºC |
Input resistance: | 700±10Ω | defend grade: | IP68 |
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (7-25 days) according to your Qty
4.Customized size and spec/OEM available

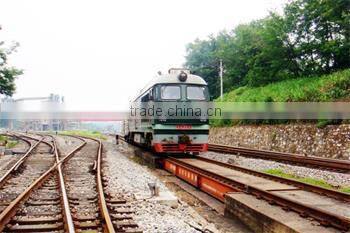

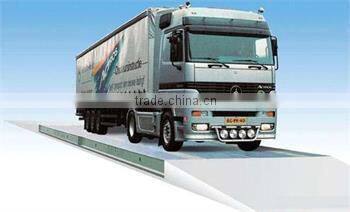

APPLICATION:
