Product Details
| Place of Origin | Hunan, China | Brand Name | DETAIL | |
| Model Number | DLC605 | Type | Floor Scale | |
| Power Supply | 9-36VDC | Accuracy | 0.00006kg |
Product Description

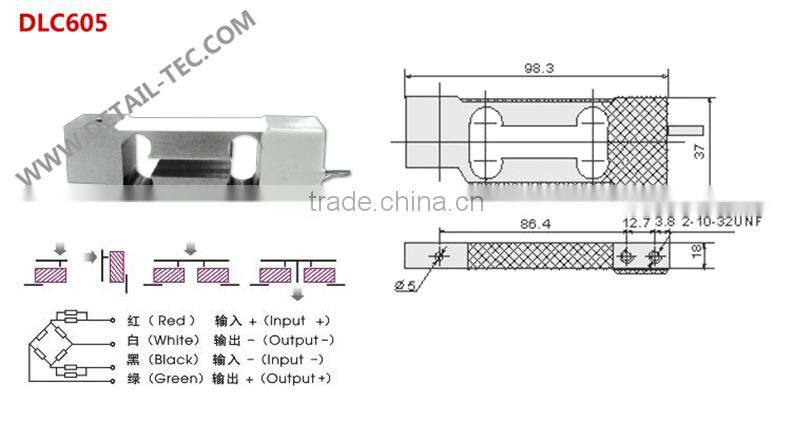

DLC605 platform weighing scale, electronic counting scale load cell
Model: DLC605 Category: single point load cell Range: 0.3kg,1.5kg,3kg,12kg Dimension: 98.3*37*18mm Material: Alloy aluminum Application: electronic counting scale,Platform scale, pricing scale, kitchen scale Characteristic: Platform scale weighing sensor, pricing scale weighing | |||||||||||||
REF PIC | |||||||||||||
other model | |||||||||||||
model | dimension | Rated load | Precision | error | Rated output | wire | thread | ||||||
DLC605D | 110 *33*10 | 0.3~6KG | C2 | 0.02%FS | 0.9±0.1mv/v | Ø4*420 | 4*M6 | ||||||
DLC605X | 110 *33*6 | 3~40KG | C2 | 0.02%FS | 1.6±0.1mv/v | Ø3*420 | 4*M6 | ||||||
DLC605SA | 110 *33*10 | 3~40KG | C2 | 0.02%FS | 0.9±0.1mv/v | ø5*420 | 4*M6 | ||||||
other dimension | |||||||||||||
Rated load | 0.3KG | 1.5KG | 3KG | 12KG | |||||||||
B | 10 | 18 | 18 | 18 | |||||||||
Specification | |||||||||||||
comprehensive error: | 0.02%FS | output resistance: | 350±3Ω | ||||||||||
Rated output: | 1.9±0.003mv/v | Insulation resistance: | ≥5000MΩ(100VDC) | ||||||||||
Non-linearity: | 0.02%FS | Excitation voltage: | 9~12VDC | ||||||||||
Hysteresis: | 0.02%FS | compensated temp: | -10~+40ºC | ||||||||||
Repeatability: | 0.01%FS | use temperature: | -20~+60ºC | ||||||||||
Creep: | 0.02%FS/30MIN, | temp effect on zero: | 0.03%FS/10ºC | ||||||||||
Zero balance: | ±1%FS | Temp effect on span: | 0.02%FS/10ºC | ||||||||||
Input resistance: | 405±10Ω | defend grade: | IP65 | ||||||||||
Aplication:
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
