DLC642 platform scale , electronic scale load cell
- ShenZhen GuangZhou ChangSha
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | DETAIL | |
| Model Number | DLC642 | Type | Other | |
| Power Supply | 9-36VDC | Accuracy | 0.017kg |
Product Description

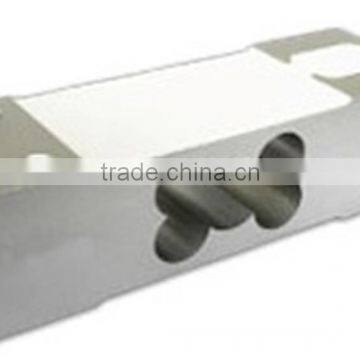

DLC642 platform scale , electronic scale load cell
Model: DLC642 Category: single point load cell Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg Dimension: 150*40*40mm Material: Alloy aluminum Application: Platform scale, pricing scale, electronic scale,postal scale Characteristic: platform scale load cell,500kg aluminum load cell | ||||||||
REF PIC | ||||||||
other model | ||||||||
model | dimension | Rated load | Precision | error | Rated output | |||
DLC642B | 100*30*22 | 100~500KG | C2 | 0.02%FS | C2 | |||
Specification | ||||||||
comprehensive error: | 0.02%FS | output resistance: | 350±3Ω | |||||
Rated output: | 2±0.01mv/v | Insulation resistance: | ≥5000MΩ(100VDC) | |||||
Non-linearity: | 0.02%FS | Excitation voltage: | 9~12VDC | |||||
Hysteresis: | 0.02%FS | compensated temp: | -10~+40ºC | |||||
Repeatability: | 0.02%FS | use temperature: | -20~+60ºC | |||||
Creep: | 0.027%FS/10MIN | temp effect on zero: | 0.03%FS/10ºC | |||||
Zero balance: | ±1%FS | Temp effect on span: | 0.02%FS/10ºC | |||||
Input resistance: | 405±10Ω | defend grade: | IP65 | |||||
APPLICATION:
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
