DLC403 90t force test equiment load cell
- ShenZhen GuangZhou ChangSha
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | DETAIL | |
| Model Number | DLC403 |
Product Description
DLC403 force test equiment load cell
Model: DLC403 Category: Compression Load Cell Range: 25t,30t,40t, 50t, 60t, 90t Dimension: 72*192/85*225mmm Material: Alloy steel,stainless steel Application: Force test equipment,compression test equipment, Characteristic: Force test sensor,compression test sensor | |||||||||||||

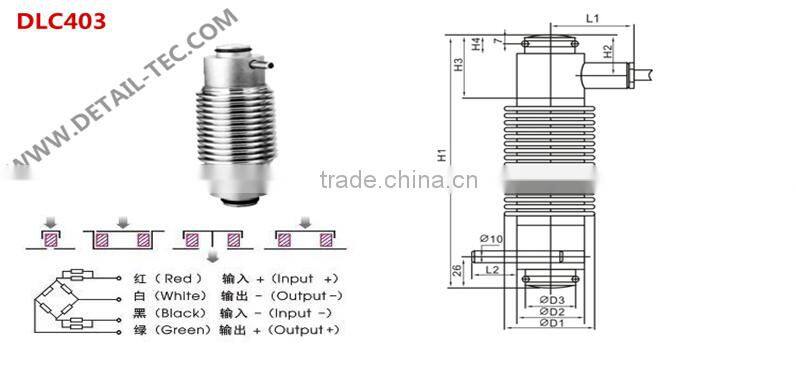

REF PIC | |||||||||||||
other dimension | |||||||||||||
LOAD T | L1 | L2 | H1 | H2 | H3 | H4 | D1 | D2 | D3 | S MAX | |||
25, 30 | 62 | 33 | 192 | 34 | 51 | 15 | 72 | 50 | 37 | 10.5 | |||
40 | 69 | 26 | 225 | 36 | 57 | 16 | 85 | 64 | 37 | 11 | |||
50, 60 | 69 | 26 | 225 | 36 | 57 | 16 | 85 | 64 | 54.4 | 12.5 | |||
90 | 69 | 26 | 225 | 36 | 57 | 16 | 85 | 64 | 54.4 | 9 | |||
Specification | |||||||||||||
comprehensive error: | 0.03&0.05%FS | output resistance: | 700±5Ω | ||||||||||
Rated output: | 1.5±0.002mv/v | Insulation resistance: | ≥5000MΩ(100VDC) | ||||||||||
Non-linearity: | 0.03%FS | Excitation voltage: | 9~12VDC | ||||||||||
Hysteresis: | 0.02%FS | compensated temp: | -10~+40ºC | ||||||||||
Repeatability: | 0.01%FS | use temperature: | -35~+65ºC | ||||||||||
Creep: | 0.02%FS/10MIN | temp effect on zero: | 0.03%FS/10ºC | ||||||||||
Zero balance: | ±1%FS | Temp effect on span: | 0.02%FS/10ºC | ||||||||||
Input resistance: | 700±10Ω | defend grade: | IP66&IP68 | ||||||||||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (7-25 days) according to your Qty
4.Customized size and spec/OEM available

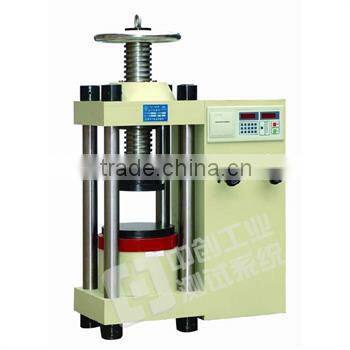

APPLICATION:

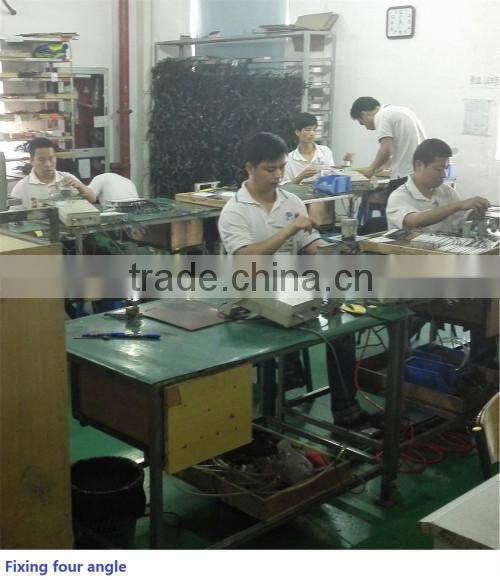

Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
