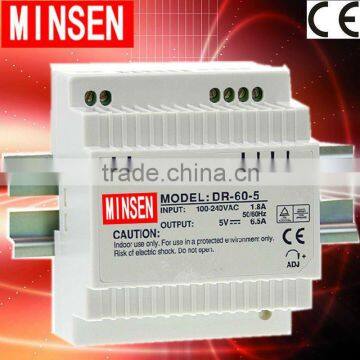

60w din rail switching power supply DR-60-5
- Ningbo Or shanghai
- Credit Card
You May Like
-
60w din rail switching power supply DR-60-5V 6.5A
-
60w 12V din rail switching power supply DR-60-12V
-
60w 15V din rail switching power supply DR-60-15V
-
60w din rail switching power supply DR-60-24V power supply
-
45w din rail power supply 45W 12V 3.5A single output power supply
-
Din Rail 75W regulated power supply with 12v CE approved
Product Details
| Place of Origin | Zhejiang, China | Brand Name | minsen | |
| Model Number | DR-60 | Output Power | Other, 60w | |
| Output Type | Single | Input Voltage | Other, 110V,220VAC | |
| Output Voltage | 5v | Output Current | 6.5A |
Product Description
Specifications
Competitived price and high reliabilityUniversal AC input/Full range
Protections:Short circuit/Over load/Over voltage
60w Din Rail Switching Power Supply DR-60
SPECIFICATIONS
INPUT
Voltage Range 88~264 VAC 47~63 Hz; selected by switch 124~370VDC
AC Current 1.2A/115 V 0.8A/ 230 V
Efficiency 76%(HDR-60-5); 82%(HDR-60-12); 83%(HDR-60-15); 81%(HDR-60-24)
Inrush Current Cold start 20A/115V 40A/230V
Leakage Current <1mA/240VAC
PROTECTION
Over Load 105%~160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage 115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity -20°C~+60°C; 20%~90 %RH
Storage Temp., Humidity -40°C~+85°C; 10%~95 %RH
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage I/P-O/P: 3KVAC
Isolation Resistance I/P-O/P: 100M Ohms / 500VDC
STANDARD
Safety Standard Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3
OTHERS
Weight 0.3Kg
Packing 48pcs/15.4Kg/1.02CUFT
