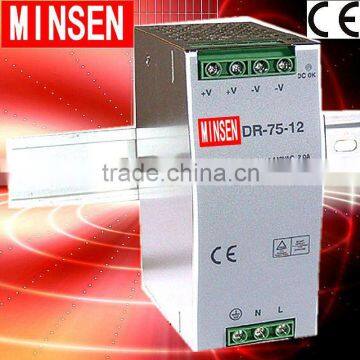

Din Rail 75W 24V regulated power supply with 12v CE approved

FOB Price

USD $2.99 - $10.99 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.regulated power supply
2.CE RoHs approved
3.1 years warranty
4.76% efficiency

Model	DR-75-12	DR-75-24	DR-75-48
DC output voltage	12V	24V	48V
Output voltage range(Note:2)	±2%	±1%	±1%
Rated output current	6.3A	3.2A	1.6A
Output current range	0-6.3A	0-3.2A	0-1.6A
Wave and noise(Note:3)	100mVp-p	150mVp-p	240mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±1%	±1%
DC output power	75.6W	76.8W	76.8W
Efficiency	76%	80%	81%
Adjustable range for DC voltage	10.8~13.2V	21.6~26.4V%	43.2~52.8V%
AC input voltage range	85~264VAC 47~63Hz;120~370VDC
Input current	1.8A/115V 0.9A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage protection	13.8~16.2V	27.6~26.4V	43.2~52.8V
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	1000ms, 60ms, 50ms/230V
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

· Din Rail switching power supply

· Competitived price and high reliability

· 105oC Output capacitor

· AC input power suitable for the world

· High efficiency and low operation temperature

· Soft-start current can reduce the AC input impact effeciticly

· With short-circuit and overload protection

· Compact size, light weight

· 100% full-load burn-in test

· Installed with EMI filter, minimum wave
