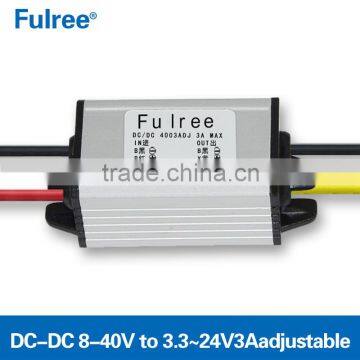

8-40v to 3.3-24v3a dc-dc step down adjustable power supply buck module, dc-dc step down converter

FOB Price

USD $4.5 - $10 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

8-40v to 3.3-24v3a dc-dc step down adjustable power supply buck module, dc-dc step down converter

Model	4003ADJ
Input rated voltage	12V24V
Input voltage range	8-40V
Efficiency	93% (half load), 91% (full load)
Output voltage	3.3-24V adjustable(minimum pressure difference:3V)
Output current	3A MAX
Output rated power	15W
Output peak power	18W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	NONE( (Please Series diode at the input port.)
NW	50G
Product size	452521mm
Other DC-DC adjustable converter recommend	1) 8-22v to 1.5-15v 3A max 2)8-35v to 1.5-24v 5A max (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
