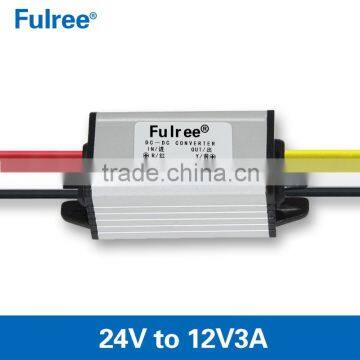

dc-dc step down converter 24v to 12v3a car power supply buck module, 12v power supply module

FOB Price

USD $4 - $8 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

dc-dc step down converter 24v to 12v3a car power supply buck module, 12v power supply module

Model	4001203L
Input rated voltage	24V
Input voltage range	15-40V
Efficiency	≥ 90%
Output voltage	12V(minimum pressure difference:3V)
Output current	3A MAX
Output rated power	36W
Output peak power	50W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	NONE( (Please Series diode at the input port.)
NW	50G
Product size	452521mm
Other ouput voltage available	3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V,12V (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
