Home > Products > DC-DC step down 3.3-9V output > water proof dc-dc step down converter 12v24v7.2-40v to 4.2v3a10w, car power supply buck module, 12v to 4.2v dc dc transformer

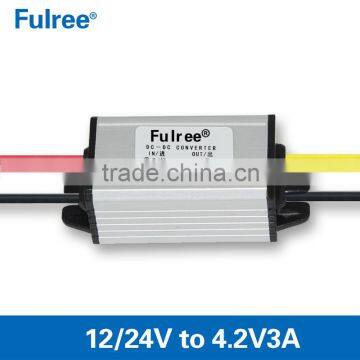

water proof dc-dc step down converter 12v24v7.2-40v to 4.2v3a10w, car power supply buck module, 12v to 4.2v dc dc transformer
USD $3.5 - $8
/ Piece
1 Piece(Min. Order)
- SHENZHEN/HONGKONG
- Credit Card PayPal
You May Like
-
dc-dc step down converter 12v24v6.7-40v to 3.7v3a10w, car power supply buck module, 12v to 3.7v dc dc transformer
-
dc-dc step down converter 12v24v6.3-40v to 3.3v3a10w, car power supply buck module, dc-dc step down module
-
waterproof DC-DC converter 12v12v-22v to 9v2a step down power converter, car power supply module
-
waterproof DC-DC converter 12v to 7.5v3a step down power converter, car power supply module
-
DC-DC step down converter 12v9-22v to 6v3a, car power supply module
-
DC-DC converter 12v to 4.2v3a step down power converter, car power supply module
Product Details
| Place of Origin | Guangdong, China | Brand Name | fulree | |
| Model Number | 4004203L | Output Power | 1 - 50W | |
| Output Type | Single | Size | 45*25*21mm | |
| Weight | 40g | Input Voltage | 7.2-40v | |
| Output Voltage | 4.2v | Type | DC/DC Converters | |
| Output Frequency | 0-400HZ | Output Current | 3A Max |
Product Description
water proof dc-dc step down converter 12v24v7.2-40v to 4.2v3a10w, car power supply buck module, 12v to 4.2v dc dc transformer
| Model | 4004203L |
| Input rated voltage | 12V24V |
| Input voltage range | 7.2-40V |
| Efficiency | ≥ 90% |
| Output voltage | 4.2V(minimum pressure difference:3V) |
| Output current | 3A MAX |
| Output rated power | 12.6W |
| Output peak power | 15W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | NONE( (Please Series diode at the input port.) |
| NW | 50G |
| Product size | 45*25*21mm |
Other ouput voltage available | 3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
