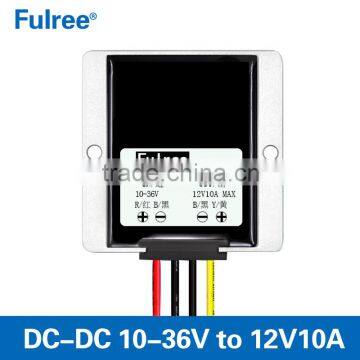

waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power

FOB Price

US$ 20 - 26 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

waterproof 12v to 12v10A dc regulator,10-36v to 12v dc-dc converter module, stablizer for solar power

Model	10361210L
Input rated voltage	12V
Input voltage range	8-36V DC
Efficiency	93% (half load), 91% (full load)
Output voltage	12V
Output current	10A MAX
Output rated power	120W
Output peak power	140W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Instant absorption of high voltage protection Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	280G
Product size	747432MM
Other output current option for DC 12V TO 12V	4A, 5A, 10A, 12A(pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
