Home > Products > Solar Panel > 300 Watt Mono Solar Panel With CE Tuv pv Solar Panel Price

300 Watt Mono Solar Panel With CE Tuv pv Solar Panel Price

FOB Price

US$ 0.4 - 0.5 / Watt

1 Watt(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Just Solar
Model Number	JST300m(72)		Type	Other, Solar Panel 300 watt

Product Description

Dimensions

IV-Curves

Note!

Please contact support for technical support. The actual transactions will be subject to the contracts. This parameters are for reference only and it is not a part of the contracts. The specifications are subject to change without prior notice.

Technical Data

Model Type	JST280M(72)	JST290M(72)	JST300M(72)	JST310M(72)	JST320M(72)	JST330M(72)
Peak Power	280W	290W	300W	310W	320W	330W
Module Efficiency	14.50%	15.00%	15.50%	16.00%	16.50%	17.00%
Maxi Power Voltage	36.7V	37V	37.3V	37.6V	37.9V	38.2V
Maxi Power Current	7.63A	7.84A	8.05A	8.25A	8.45A	8.64A
Open Circuit Voltage	44.8V	45.1V	45.4V	45.7V	46V	46.3V
Short Circuit Current	7.93A	8.15A	8.37A	8.58A	8.79A	8.98A
Power Tolerance	0 to+5W
	Mechanical Data
Cell Type	Monocrystalline 156x156mm
Number of Cells	72
Glass	High Transmission,Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP67rated MC4 compatible
Dimension	195699245mm
Weight	21kg

Production

Payment Terms

Payment Terms	T/T	FOB	30% T/T in advance, paid the balance before shipment
		EXW
		CIF	30% T/T in advance, paid the balance against copy of B/L
		CFR(C&F)
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount lower than 53000usd
Delivery Time	10~15 days after receiving payment for one container

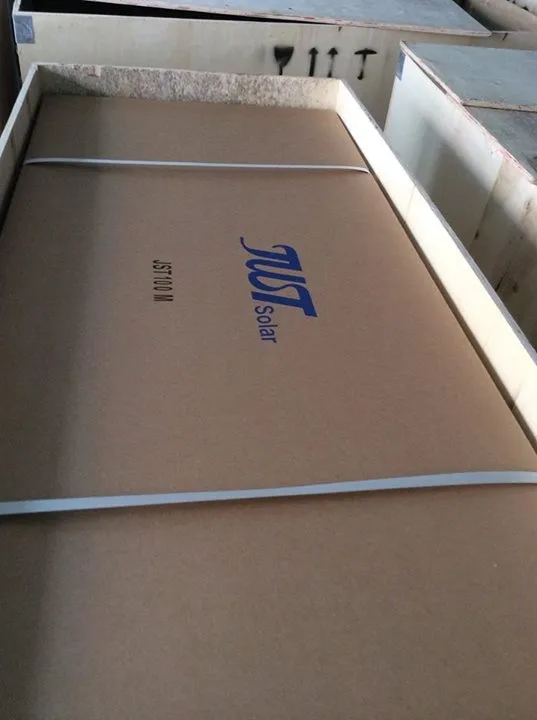

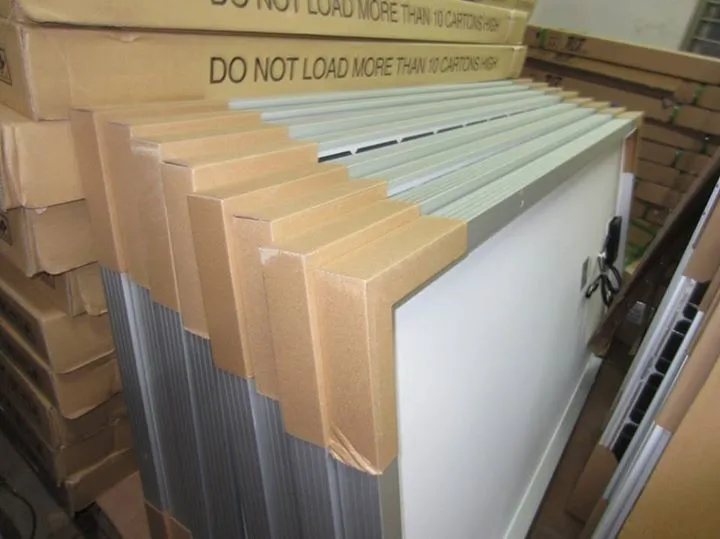

Packing

Packing Information
Container	20GP	40GP	40HP
Pieces per Pallet	26	26	26
Pieces per Container	356	728	812

Shipping

By Sea	Delivery from Shanghai, Yiwu and Ningbo seaport
By Air	Departure from Shanghai Pudong Airport
By Express	Post by DHL, EMS, UPS, TNT.
