can be used for Rapid charge and discharge High capacitance 2.7V 2F

FOB Price

USD $0.25 - $0.35 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	MZC
Model Number	ZCP 2.7V	Type	Other, Super Capacitor, super capacitor
Application	Other, General Purpose, charge and discharge	Package Type	Surface Mount
Capacitance	1F	Rated Voltage	2.7V
Operating Temperature	-25℃+70℃

1.High capacity, low resistance
2.Long life span about 500000 times
3.release huge current in a short time
4.different size.

Can be used for Rapid charge and discharge High capacitance 2.7V 2F

Characteristic:

1.High capacity, low resistance
2.Long life span about 500000 times
3.release huge current in a short time
4.different size.

Catalog:

Parameter:

>>> Lead type:

	Part number	Rated Voltage (V)	Rated Cap. (F)	Size	Max. ESR		Maximum Continuous Current(A) (T=15℃)	Maximum Peak Current (A)	Maximum Leakage Current (72hrs/mA)	Power Density (W/kg)	Maximum Energy (W.h)	Energy Density (Wh/kg)
				φD×L (mm)	AC (1kHz/mΩ)	DC (mΩ)
	ZCP2R5M105SS0812	2.5	1	8×12	400	800	0.36	0.69	0.008	1008	0.0008	0.9
	ZCP2R5M205SS0816	2.5	2	8×16	250	500	0.52	1.25	0.010	1210	0.0017	1.4
	ZCP2R5M335RS0820	2.5	3.3	8×20	200	400	0.64	1.78	0.014	1218	0.0029	1.9
	ZCP2R5M505RS1020	2.5	5	10×20	160	320	0.81	2.40	0.016	1149	0.0043	2.1
	ZCP2R5M705RS1025	2.5	7	10×25	120	240	1.04	3.26	0.020	1313	0.0061	2.6
	ZCP2R5M106RS1030	2.5	10	10×30	80	160	1.38	4.81	0.030	1429	0.0087	2.6
	ZCP2R5M106RS1B20	2.5	10	12.5×20	80	160	1.30	4.81	0.030	1270	0.0087	2.4
	ZCP2R5M156RS1B30	2.5	15	12.5×30	70	140	1.67	6.05	0.050	1107	0.0130	2.7
	ZCP2R5M256RS1625	2.5	25	16×25	50	100	2.09	8.93	0.060	1011	0.0217	2.9
	ZCP2R5M306RS1630	2.5	30	16×30	35	60	2.71	13.40	0.070	1403	0.0260	2.9
	ZCP2R5M506RS1840	2.5	50	18×40	22	40	4.14	20.80	0.160	1437	0.0434	3.3
	ZCP2R5M107RS1860	2.5	100	18×60	18	30	5.51	31.30	0.300	1106	0.0868	3.8

>>> Solder pin type:

	Part number	Rated Voltage (V)	Rated Cap. (F)	Size	Max. ESR		Maximum Continuous Current(A) (T=15℃)	Maximum Peak Current (A)	Maximum Leakage Current (72hrs/mA)	Power Density (W/kg)	Maximum Energy (W.h)	Energy Density (Wh/kg)
				φD×L (mm)	AC (1kHz/mΩ)	DC (mΩ)
	ZCP2R5M107SS2245	2.5	100	22×45	11	18	6.90	44.64	0.300	1805	0.0868	3.8
	ZCP2R5M207SS3050	2.5	200	30×50	8	14	10.08	65.79	0.600	1135	0.1736	3.7
	ZCP2R5M257SS3055	2.5	250	30×55	8	14	10.51	69.44	0.650	996	0.2170	4.0
	ZCP2R5M367SS3560	2.5	360	35×60	6	11	13.74	90.73	1.000	874	0.3125	4.0

>>> Cylindrical type:

	Part number	Rated Voltage (V)	Rated Cap. (F)	Size	Max. ESR		Maximum Continuous Current(A) (T=15℃)	Maximum Peak Current (A)	Maximum Leakage Current (72hrs/mA)	Power Density (W/kg)	Maximum Energy (W.h)	Energy Density (Wh/kg)
				φD×L (mm)	AC (1kHz/mΩ)	DC (mΩ)
	ZCP2R5M367CS3560	2.5	360	35×60	2.50	3.00	21.2	216.3	1.00	2632	0.3125	3.3
	ZCP2R5M657CS6074	2.5	650	60×74	1.15	1.55	40.2	404.7	1.40	2016	0.5642	2.4
	ZCP2R5M128CS6074	2.5	1200	60×74	0.81	1.35	55.7	572.5	2.50	1556	1.0416	2.9
	ZCP2R5M208CS601A	2.5	2000	60×120	0.48	0.75	89.1	1000.0	4.00	1942	1.7361	3.4
	ZCP2R5M308CS601E	2.5	3000	60×138	0.35	0.64	111.1	1284.2	4.50	1963	2.6041	4.4
	ZCP2R5M358CS601D	2.5	3500	60×165	0.30	0.60	130.2	1411.2	5.00	1796	3.0381	4.4

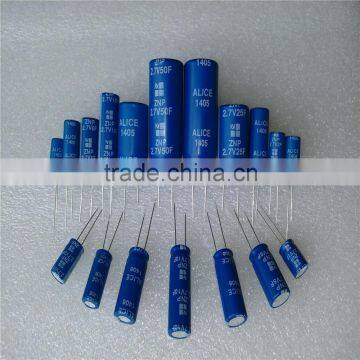

Picture:
