Bright Nimonic 80a Round Bar Manufacturer
- Shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Shanghai, China | |||
| Application | aeronautical field,chemical industry etc. | Grade | Ni,Cr, Fe, C,Mn,etc, Nimonic 80a round bar | |
| Ni (Min) | Balance | Powder Or Not | Not Powder | |
| Model Number | Nimonic 80a | Brand Name | Chonray |
Product Description

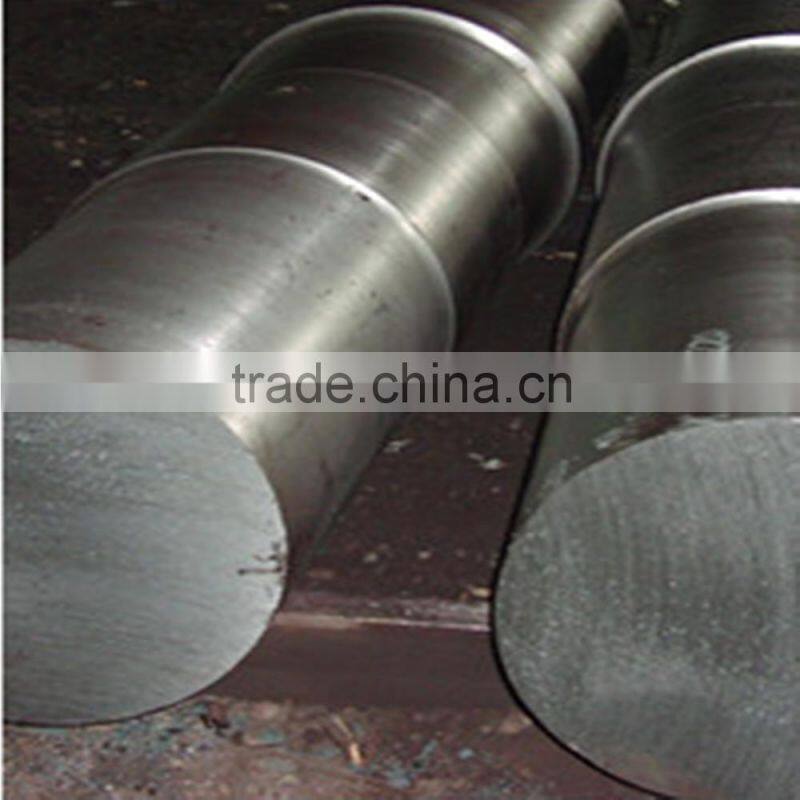

The picture of Nimonic80A round bar.
Nimonic 80A
Nimonic 80A alloy is a wrought, age-hardenable nickel-chromium alloy,strengthened by additions of titanium, alunimum and carbon, developed for service at temperatures up to 815℃(1500℉). It is produced by high-frequency melting and casting in air for forms to be extruded. Electroslag refined material is used for forms to be forged.
Vacuum refined version are also available. Nimonic 80A is currently used for gas turbine components(blades, rings, and discs), bolts,nuclear boiler tube supports, die casting inserts and cores, and for automobile exhaust valves.
Chemistry
  | Cr  | Ni  | Ti  | Co  | Al  | Cu  | B  |
%  | 18.0- 21.0  | Balance  | 1.8- 2.7  | 2.0 max..  | 1.0- 1.8.  | 0.2 max.  | 0.008 max.  |
Zr  | Pb  | Mn  | Si  | C  | S  | Fe  |
0.15 max.  | 0.0025 max.  | 1.0 max.  | 1.0 max.  | 1.0 max.  | 0.015 max.  | 3.0 max.  |
Allloy form
Rod, bar, wire and forging
Plate, sheet and strip
Pipe and tube
Common trade names
Nimonic 80A, UNS N07080
Workstoff numbers 2.4952 and 2.34631
Applications
- Gas turbine components(blades, rings, and discs)
 - Bolts, nuclear boiler tube supports, die casting inserts and cores
 - Automobile exhaust valves

Physical properties
Density: 8.19 g/cm3, 0.296 lb/in3
Melting Range: 1320-1365℃; 2410-2490 ℉
Magnetic Properties
Mass Susceptibility:5.85x10-6 at 1000 gauss
Volume Susceptibility:4.78x10-6 at 1000 gauss
Magnetic Permeability: 1.000601 for 200-2000 oersted
