Ni-Cr Base High Temperature Alloy
- shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Chonray | |
| Model Number | GH3039 | Application | manufacture turbine engine blade and fastener of aerospace industry | |
| Shape | Bar, Wire, Strip, Sheet, Plate, | Material | Ni-Cr | |
| Dimensions | GH3039, Customized | Chemical Composition | Ni-Cr |
Product Description

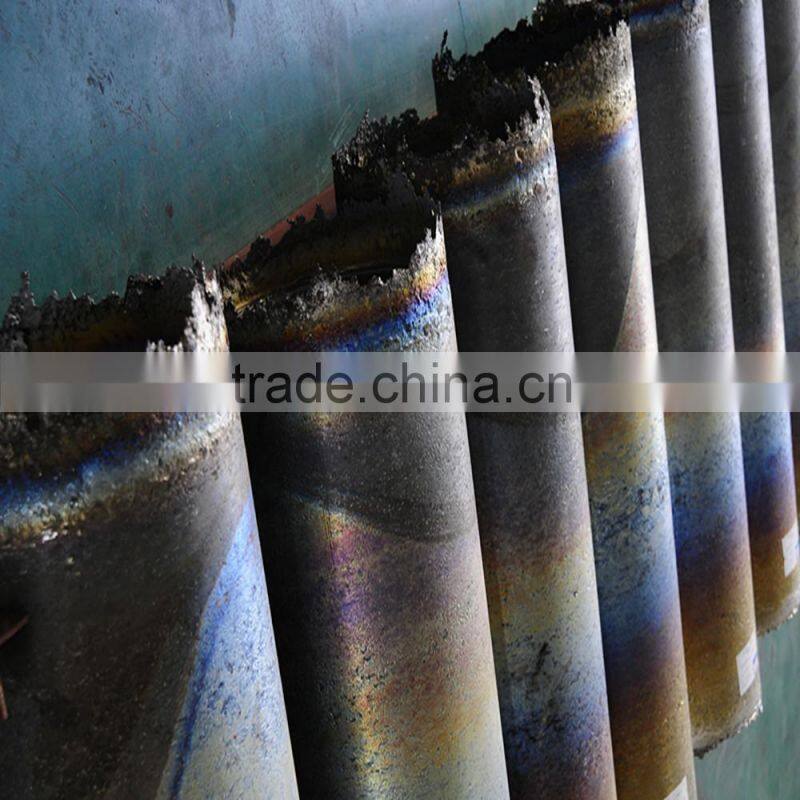

1.The picture of Ni-Cr Base High Temperature Alloy .
The alloy is solution strengthening deformation superalloy. It has medium level of thermal strength and well thermal fatigue resistant performance under 800º C. Its antioxidant performance is quite good under 1000º C and the structure is very stable during its long lifespan. The main products are plates, sheets, bars, wires, tubes and forgings.
Resistivity(20º C): 1.18× 10-6Ω · M
Density: 8.3G/cm ³
3. Main grades and properties
| Chemical Composition, % | |||||||
| Element | C | Cr | Ni | Mo | Al | Ti | Fe |
| Mass fraction | ≤0.08 | 19.00~22.00 | rest | 1.80~2.30 | 0.35~0.75 | 0.35~0.75 | ≤3.00 |
| Element | Nb | Mn | Si | P | S | Cu | _ |
| Mass fraction | 0.90~1.30 | ≤0.40 | ≤0.80 | ≤0.02 | ≤0.012 | ≤0.20 | _ |
| Thermal conductivity: | ||||||||||
| θ/ºC | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | _ |
| λ/[W/(m@ºC)] | 13.8 | 15.5 | 17.2 | 18.8 | 20.5 | 21.8 | 23.4 | 25.1 | 26.8 | _ |
| Coefficient of linear expansion: | |||||
| θ/ºC | 20~100 | 20~200 | 20~300 | 20~400 | 20~500 |
| α/(10 -6 ºC -1 ) | 11.5 | 12.4 | 13.2 | 13.5 | 13.8 |
| θ/ºC | 20~600 | 20~700 | 20~800 | 20~900 | 20~1000 |
| α/(10 -6 ºC-1 ) | 14.3 | 14.9 | 15.3 | 15.8 | 16.4 |
Size:
Hot-rolled bar: Φ 8~38mm
Cold-drawn bar: ≤ 50mm
Forging bar: Φ 38~350mm
Wire: Φ 0.1mm~18mm
Cold-rolled strip: 0.15~4× 200mm
Hot-rolled strip: 4~22× 200mm
Cold-rolled sheet: 0.5~4× 1000× 2000mm
Hot-rolled sheet: 4~22× 1000× 2000mm
4. More products for you to choose.

Shanghai Chonray Precision Alloy Co.,Ltd. was founded in Shanghai in Year 2000 with two major business sectors. One sector is that we have a manufacturing base in shanghai, which is professsional in highly engineered as well as standard electric heating elements, and optimized electric heating element solutions for industrial furnaces. Based on 15 years experience in electric heating elements, we have provided products and solutions to many well-known companies all through
the world including Ipsen,Aichelin Induatrial Furances, IMPC, Bao Steel, Huisen, Faw-Volkwagen, ZPMC, China Guodian,Fuyao Group, MCC and so on.
The second sector is that we have another manufacturing base in Jiangsu Province specialized in research and production of high resistance alloys, high-temperature alloys, corrosion resistant alloys, precision alloys, and welding alloys. We provide the alloys in form of rods,plates,strips,tubes,wires and various precision castings of more than 1,000 specifications in accordance with international standards or national standards by forging, rolling, drawing, casting and other processing methods. Based on 23 years industry experience, the alloy factory in Jiangsu Province has become the biggest manufacturer among the local private companies in the special alloy industry , which enables us to establish long -term and strategic cooperation with many big companies abroad and at home.
Carrying ISO9001:2008 and ISO14001 Certificates , our company ensures the quality control with the help of advanced testing and analysis equipment to inspect product composition, structure,performance and defects. Chonray professional team is fully qualified to satisfy your sales, engineering and logistics requirements. We are well positioned to meet the world increaseing demands for different precision alloys as well as the electric heating elements for industrial furnaces . We are confident to offer high quality products at competitive pricing backed by years of industrial experience.

Production line

Testing equipment
Certification
Packing picture:

Our market
Our advantages and services
a. Our advantage
We can provide high quality materials, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
We can provide over 100 grades of special alloys with 1000+ specifications and all kinds of electric heating elements for industrial furnaces , including customized products.
We can provide a complete solution for you.
OEM service can be provided.
b. Technical services we can provide:
Product selection
Process optimization
New product development
Contact information:

FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: Are you products customized?
A: Yes, the products in the website are only the common types or the precious types from other
customers we can supply the new products according to your requirements or drawings.
Q: How can I make an order?
A: Send us the inquiry or chat with us if you have any questions before order, we will reply you ASAP we will issue the PI according to your specific requirement. The goods will be sent out to you upon
getting full payment.
Q: Can I place a sample order?
A: Of course, sample order is welcome for checking product functionality and quality. There is no MOQ requirement for sample order.
Q: Is shipping for free?
A: No, the shipment fee needs to be paid by buyers, and it is determined by weight and shipment
method.
Q: How about the lead time and delivery time of my order?
A: Lead time is usually 2-8 working days depending on the order size and variety; delivery time is
normally 3-5 working days, it needs extra 2-3 working days for remote areas.
Q: What certifications do you have?
A: CE and ISO for all available products.
Q: What's your warranties?
A: 1 year.
