Inconel Alloy 718 Round Bar
- shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Corrosion Resistant Alloy Inconel 600 Round Rod
 -


Alloy 718/Inconel 718 N07718 High Temperature Alloy Round
 -


High Temperature Nickel Wire Inconel 625 (UNS N06625/W.Nr2.4856)
 -


High Temperature Nickel Alloy Heating Bar
 -


High Temperature Alloy Inconel 718
 -


CE,ISO Certificated Uns N09925 Incoloy Alloy 925 Round Bar

Product Details
| Place of Origin | Shanghai, China | Type | Nickel Bar | |
| Application | gas turbine en gine parts, etc., petrochemical,energy manufacturing and pollution control | Grade | metal, inconel alloy 718 round bar | |
| Ni (Min) | 50, 50 | Powder Or Not | Not Powder | |
| Model Number | Inconel 718 | Brand Name | Chonray |
Product Description

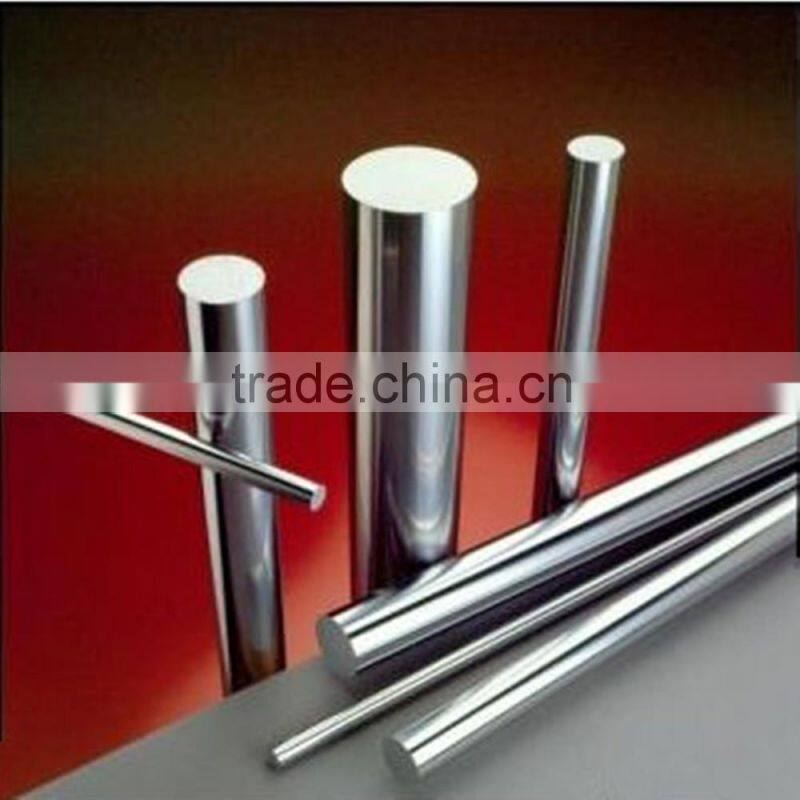

The picture of inconel alloy 718 round bar.
Inconel 718 is a high strength nickel base superalloy used for cryogenic temperatures up to long term service at 1200°F. The alloy is readily fabricated and may be welded in either the annealed or precipitation (age) hardened condition. Anneal 1700 -1850°F, air cool or faster. Age 1325°F 8 hours, furnace cool to hold at 1150°F, for a total aging time of 18 hours, air cool. Alloy 718 will show a contraction of 0.0008 inch/inch after precipitation hardening.
Chemistry
  | Ni+Co  | Cr  | Cb+Ta  | Mo  | Ti  | Al  | Co  | C  | Mn  |
MIN  | 50.00  | 17.00  | 4.75  | 2.80  | 0.65  | 0.20  | --  | --  | --  |
MAX  | 55.00  | 21.00  | 5.50  | 3.30  | 1.15  | 0.80  | 1.00  | 0.08  | 0.35  |
Si  | P  | S  | B  | Cu  | Fe  |
--  | --  | --  | --  | --  | --  |
0.35  | 0.015  | 0.015  | 0.006  | 0.30  | Balance  |
Alloy Form
718 plate, round bar, sheet, welding products
Common Trade Names
Alloy 718, Inconel 718, Nickel 718
Features
- Good mechanical properties: tensile, fatigue and creep-rupture
 - Excellent welding characteristics, resistant to postweld age cracking
 - Oxidation resistant throughout its useful temperature range

Applications
- Gas turbine engine parts
 - Liquid fuel rocket motor components
 - Springs, fasteners
 - Cryogenic tanks

Physical Properties
Density: 0.296 lb/in3 annealed, 0.274 lb/in3 aged
Melting point: 2410 - 2540°F
Temperature, °F  | -320  | 70  | 200  | 400  | 600  | 1000  | 1200  | 1400  |
Coefficient* of thermal expansion, in/in°F x 10-6  | 5.9  | -  | 7.3  | 7.5  | 7.7  | 8.1  | 8.4  | 8.9  |
Thermal Conductivity  | -  | 6.4  | 7.2  | 8.2  | 9.3  | 11.3  | 12.3  | 13.3  |
Modulus of Elasticity, dynamic psi x 106  | -  | 29  | 28  | 27  | 26  | 25  | 24  | 22  |
* 70°F to indicated temperature.
