Home > Products > SUK series terminal blocks > SUK-2.5 Combined Din Rail Screw Terminal Block
SUK-2.5 Combined Din Rail Screw Terminal Block
US$ 0.15 - 0.15
/ Piece
100 Pieces(Min. Order)
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SUK-6 Phoenix Contact Type Terminal Block
-
SUK-4 Phoenix Contact Type Din Rail Terminal Block
-
Phoenix Type SUK-2.5 Electric Connector Terminal Block
-
Phoenix Contact SUK-2.5SK Disconnect Type Terminal Block
-
Phoenix Type 2 Level SUK-4 Din Rail Terminal Block
-
SUK-4RD Phoenix Contact Fuse Type Terminal Block
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SIPUN | |
| Model Number | SUK-2.5 | Number of Contacts | 1 - 10 | |
| Conductor Size | 11 - 20 AWG | Type | Screw |
Product Description
SUK-2.5 combined din rail screw terminal block
Feature of SUK series terminal block:
1.Reasonable design
2.General-purpose
3.Small cubage and portable
4.Complete products series
5.Large cross-section wire connection
6.Good conductive
Specification
| Model Number | SUK-2.5 |

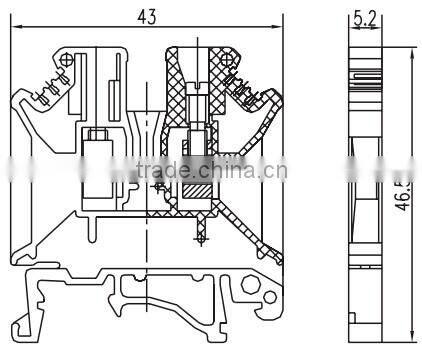

| T/W/H(mm) | 5.2*43*46.5 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 800V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | VDE/CE/RoHS/EX |
Product Show (taken in kind) :
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:

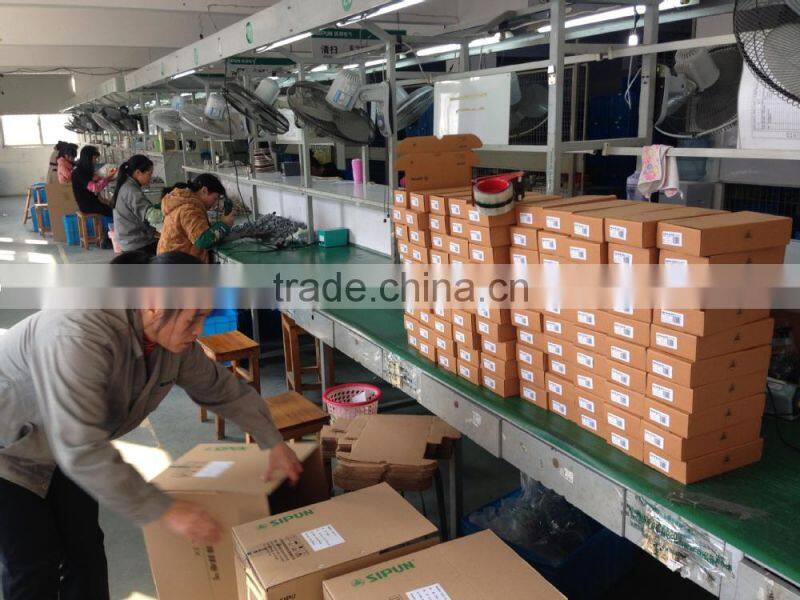

Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
